Installation
3.3

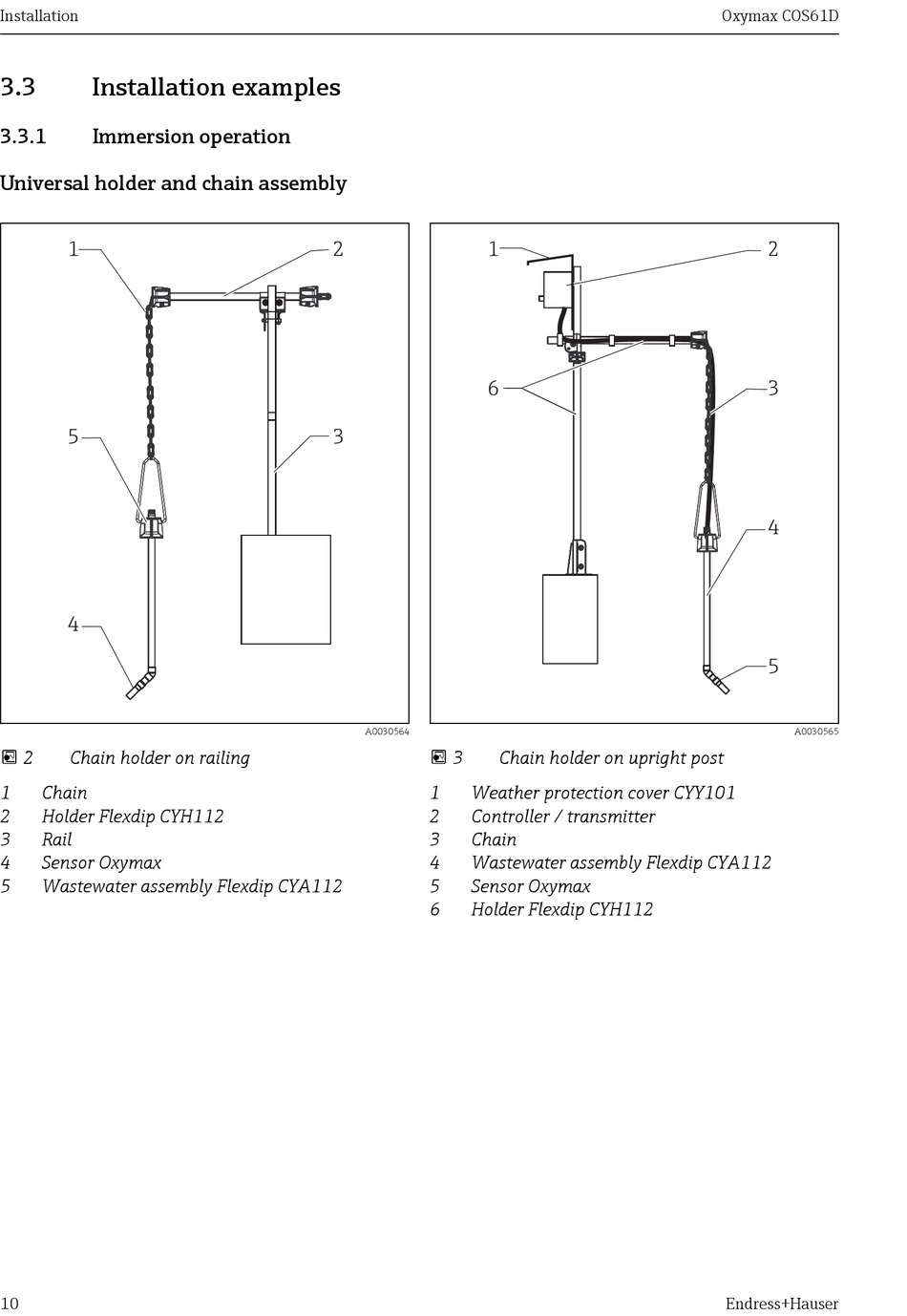

Installation examples
3.3.1
Immersion operation
Universal holder and chain assembly
1
5
4
2
Chain holder on railing
1
Chain
2
Holder Flexdip CYH112
3
Rail
4
Sensor Oxymax
5
Wastewater assembly Flexdip CYA112
10
2
1
6
3
A0030564
3
Chain holder on upright post
1
Weather protection cover CYY101
2
Controller / transmitter
3
Chain
4
Wastewater assembly Flexdip CYA112
5
Sensor Oxymax
6
Holder Flexdip CYH112
Oxymax COS61D
2
3
4
5
A0030565
