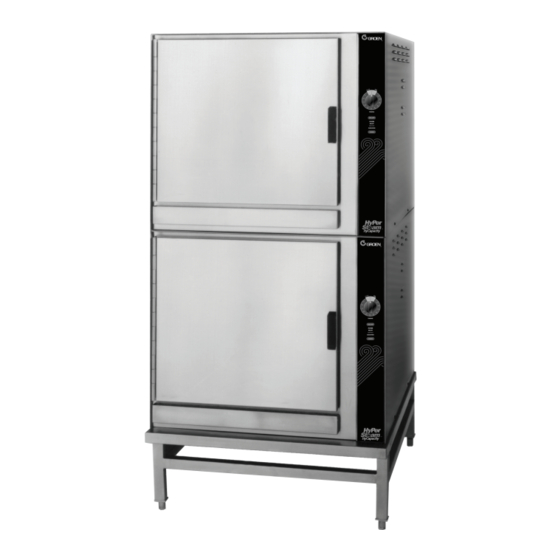

HyCapacity HyPerSteam™
Atmospheric Convection
Steamer
Self-Contained
Electric Heated
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ,
UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS
CONTAINED IN THIS MANUAL.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS
AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE
KEEP FOR OPERATOR
KEEP FOR OPERATOR
KEEP FOR OPERATOR
KEEP FOR OPERATOR
Model HY-12E
FOR YOUR SAFETY
IMPORTANT INFORMATION
IMPORTANT INFORMATION
IMPORTANT INFORMATION
IMPORTANT INFORMATION
OM-HY-12E/24E
Model HY-24EF (New Model)
DOMESTIC
.

Advertisement

Table of Contents
loading

Related Manuals for Groen HY-12E

Summary of Contents for Groen HY-12E

  • Page 1 IMPORTANT INFORMATION IMPORTANT INFORMATION OPERATOR MANUAL OPERATOR MANUAL OM-HY-12E/24E Part Number 148667 Rev. D Part Number 148667 DOMESTIC Model: HY-12E and HY-24E HyCapacity HyPerSteam™ Atmospheric Convection Steamer Self-Contained Electric Heated Model HY-12E Model HY-24EF (New Model) THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS MANUAL.

  • Page 2: Important Operator Safety Warnings

    If the chloride content of any product is unclear, consult the manufacturer. WARNING: USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY GROEN OR THEIR AUTHORIZED DISTRIBUTOR VOIDS ALL WARRANTIES AND CAN CAUSE BODILY INJURY TO THE OPERATOR AND DAMAGE THE EQUIPMENT.

  • Page 3: Table Of Contents

    OM-HY-12E/24E OM-HY-12E/24E Table of Contents IMPORTANT OPERATOR SAFETY WARNINGS ........2 EQUIPMENT DESCRIPTION .

  • Page 4: Equipment Description

    Please follow these simple precautions: scale development depends on the hardness of your water and the number of hours the equipment 1. The best way to prevent scale is to use a Groen operates. PureSteem™ Water Treatment System which has...
  • Page 5 OM-HY-12E/24E 2. A well-maintained water treatment system and a regular cartridge replacement schedule is essential. 3. Using a Groen PureSteem™ Water Treatment System will provide longer steam generator/boiler life, higher steam capacity, and reduce maintenance requirements. 4. If you notice a slowdown in steam production or an increase in deliming, have the steamer checked for scale build-up.

  • Page 6: Installation And Start-Up Instructions

    OM-HY-12E/24E OM-HY-12E/24E Installation and Start-Up WARNING THE UNIT MUST BE INSTALLED BY PERSONNEL WHO ARE QUALIFIED TO WORK WITH ELECTRICITY AND PLUMBING. IMPROPER INSTALLATION CAN CAUSE INJURY TO PERSONNEL AND/OR DAMAGE TO THE EQUIPMENT. THE UNIT MUST BE INSTALLED IN ACCORDANCE WITH APPLICABLE CODES.
  • Page 7 Set the panel aside. e. Branch Circuit Protection b. Supply Voltage Groen strongly recommends that the HY-12E Steamer or each cavity of the HY-24EF have its The unit must be operated at the rated nameplate own branch circuit protection. Each current- voltage, plus or minus 10 percent.
  • Page 8 3. Drain Connection NOTE: Improper drain connection will void the warranty. The HY-12E/24E Steamer must be leveled front to INSTALLATION OPTION ONE: From stainless steel back or pitched slightly to the rear by adjustment of the bullet feet on the cabinet base.
  • Page 9 OM-HY-12E/24E OM-HY-12E/24E B. Initial Start-Up a. Set the timer to the time desired for timed steaming. After your Steamer has been installed, test it to see that b. Turn the timer knob to the ON position for each cavity is operating correctly.

  • Page 10: Operation

    OM-HY-12E/24E OM-HY-12E/24E Operation WARNING ANY POTENTIAL USER OF THE EQUIPMENT SHOULD BE TRAINED IN SAFE AND CORRECT OPERATING PROCEDURES. A. Controls Operator controls are located on the front right of the unit. Manual “On” Position 60 Minute Timer Power On/Off...
  • Page 11 OM-HY-12E/24E OM-HY-12E/24E The control panel on new models has the following touch 3. Open the door and slide the pans onto the supports. pads and indicator lights: If you will only be steaming one pan, put it in the middle position.

  • Page 12: Cleaning

    OM-HY-12E/24E OM-HY-12E/24E Cleaning To keep your HY-12E/24EF Steamer in proper working condition, use the following procedure to clean the unit. This regular cleaning will reduce the effort required to clean the steam generators and cavities. A. Suggested Tools WARNING 1. Mild detergent DISCONNECT THE POWER SUPPLY 2.
  • Page 13 - If power outage occurs during deliming, delime cycle must be restarted. Press DELIME. RECOMMENDED TOOLS & CLEANERS: - Groen Delimer/Descaler (Part Number - For best performance, do not interrupt delime cycle. 114800). Do NOT use any product If delime cycle must be stopped, press ON/OFF to turn containing chlorides or sulfamic acid, on.

  • Page 14: Maintenance

    After prolonged use some parts may need to be replaced. If there is a need for service, only Groen personnel or authorized Groen representatives should perform the work. Always supply water with a low mineral content that meets the standards outlined in the water Conditioning section of this manual.

  • Page 15: Troubleshooting

    Troubleshooting Your Groen Steamer is designed to operate smoothly and efficiently if properly maintained. However, the following is a list of checks to make in the event of a problem. Wiring diagrams are furnished inside the service panel, and at the back of this manual.

  • Page 16: Parts List

    OM-HY-12E/24E PARTS LIST - HY-12E...
  • Page 17 OM-HY-12E/24E PARTS LIST - HY-12E Parts List - HY-12E To order parts, contact your Groen Authorized Service Agent. Supply the model designation, serial number, part description, part number, quantity, and when applicable, voltage and phase. Description Part No. Description Part No.

  • Page 18: Wiring Diagram

    OM-HY-12E/24E WIRING DIAGRAM - HY-12E...

  • Page 19: Service Log

    OM-HY-12E/24E OM-HY-12E/24E Service Log Model No. Purchased From Serial No. Location Date Purchased Date Installed Purchase Order No. For Service Call Date Maintenance Performed Performed by...

  • Page 20: References

    OM-HY-12E/24E OM-HY-12E/24E References UNDERWRITERS LABORATORIES, INC. NATIONAL FIRE PROTECTION ASSOCIATION 333 Pfingsten Road 60 Battery March Park Northbrook, Illinois 60062 Quincy, Massachusetts 002269 NFPA/70 The National Electric Code NSF INTERNATIONAL NATIONAL SANITATION FOUNDATION 789 N. Dixboro Rd. 3475 Plymouth Road P.O.

  • Page 21: Warranty Protection

    Groen Foodservice Equipment (ìGroen Equipmentî) has been skillfully manufactured, carefully inspected, and packaged to meet rigid standards of excellence. Groen warrants its Equipment to be free from defects in material and workmanship for (12) twelve months with the following conditions an subject to the following limitations.
  • Page 22 OM-HY-12E/24E NOTES...
  • Page 23 OM-HY-12E/24E NOTES...
  • Page 24 1055 Mendell Davis Drive Jackson, MS 39272 Telephone 601 372-3903 OM-HY-12E/24E Fax 601 373-9587 www.groen.com Part Number 148667 Rev. D...
