Summary of Contents for Fondital 2200

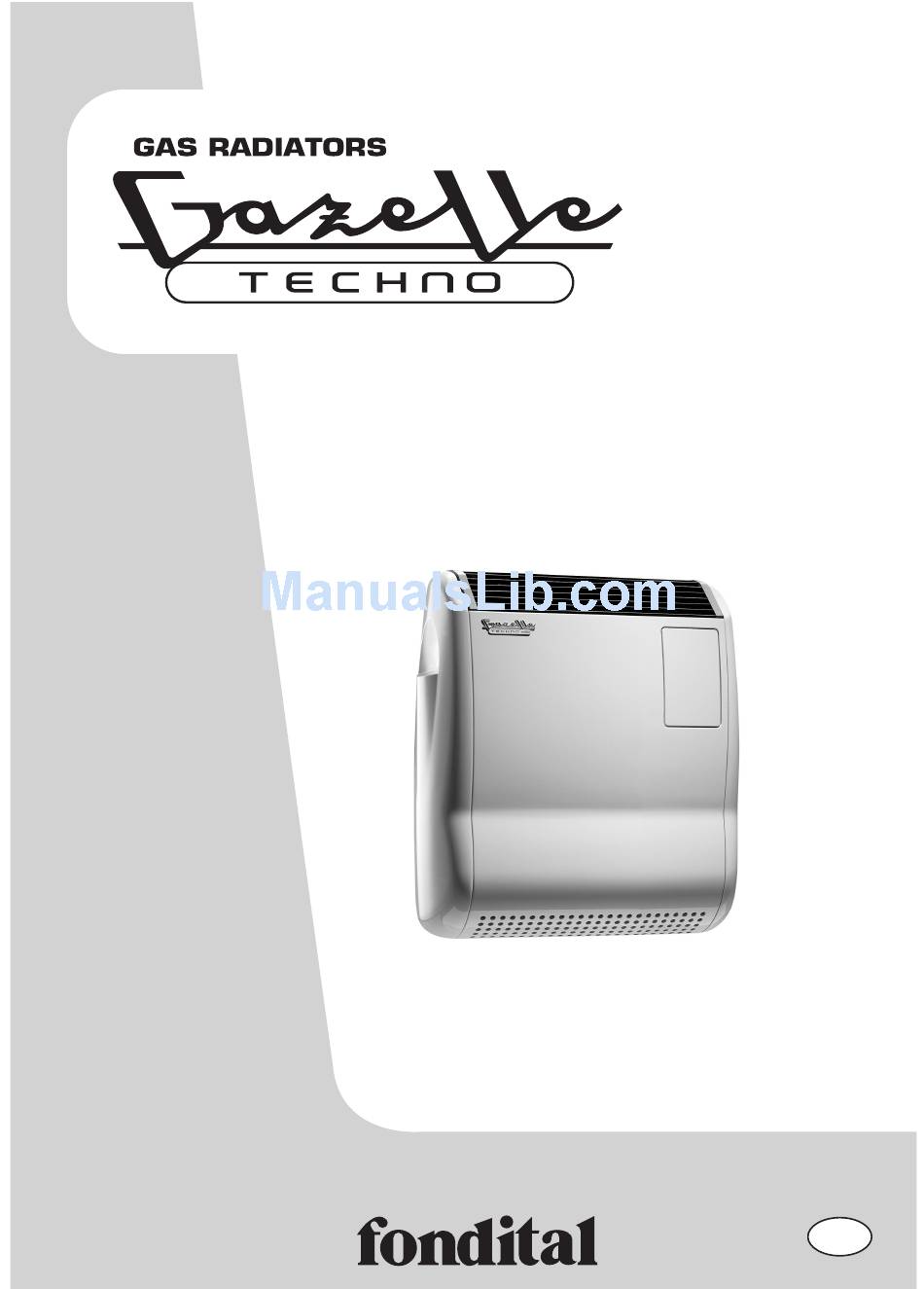

- Page 1 IST 03 G 011-02 2200 - 2200 vt TECHNICAL DATA AND INSTRUCTIONS CE 0051...
-
Page 2: Warning
To the customer Thank you for choosing one of our gas radiators. Please read these instructions carefully. This handbook contains instructions for the fitter and user on how to install, use and service these appliances. -
Page 3: General Notes For The User And Fitter
If the radiator is not used for a date of publication. certain length of time, switch off the electricity (mod. 2200 VT) This radiator must only be used and gas supply. for the purpose for which it was designed. -
Page 4: Table Of Contents
Instructions for the fitter page 9 3.1 Installation page 9 3.1.1 Connecting to the gas main page 9 3.1.2 Connecting to the power main (mod. 2200 VT) page 9 3.1.3 Changing type of gas page 10 3.2 Wiring diagram 2200 VT page 10... -
Page 5: Instructions For The User
A = Timer (only mod. 2200 VT) B = Piezo button C = Regulator for switching on and tem- perature setting (only mod. 2200 VT) D = Regulator for switching on and temperature setting Switch C allows turning the convection fan for heat convection on and off. -
Page 6: Humidifier
(pic. 2). allowing it to work only when the out-coming air is hot. 1.3.5 Timer (only model 2200 VT) The appliance is equipped with a (pic. 3 B) timer (pics. 1 and 4), available in the day and week versions. -
Page 7: Important Points To Remember
- fixed curtain: the lower edge must authorised for use with the casing be at least 30 cm from the radiator. mounted and fixed in position. pic. 5 A 1.4.2 Routine maintenance Once a year, before the winter sea- son, have the radiator checked and pic. -
Page 8: Technical Features And Dimensions
Directive 92/31/EC of 28th April concentric air intake/flue pipes dia- 1992; metre 115 mm The 2200 and 2200 VT gas radia- Low Voltage Directive 73/23/EC - Lenght of pipes up to 1 metre tors are individual gas radiators with dated 19th February 1973, amen-... -
Page 10: Instructions For The Fitter
G3/8 ISO 7-1 gas fitting in com- pliance with current installation requirements. 3.2.2 Connecting to the power main (only for model 2200 VT) terminal The appliance is fitted with a termi- fuse board nal board (pic. 8), which must be... -
Page 11: Changing Type Of Gas
• For the adjustment of the flow rate performing the above-listed ope- at the pilot: turn screw B clockwise rations! to decrease and anti-clockwise to pic. 10 increase. 3.2 Wiring diagram for model 2200 VT ROSSO ROSSO NERO ROSSO ROSSO GIALLO - VERDE... -
Page 12: Problems And Solutions
4 PROBLEMS AND SOLUTIONS PROBLEM POSSIBLE CAUSES SOLUTIONS - Check whether the gas cock is open The pilot does not light - The gas is not getting through - Check whether the gas is getting through to the valve - The nozzle is dirty - Wash it or bleed it with air - Reconnect it No spark... -
Page 13: Tables Of Technical Data
5 TABLES OF TECHNICAL DATA for models 2200 X and 2200 VT X T A B L E T E C H N I C A L D A T A M O D E L 2 2 0 0... -
Page 14: Manufacturer's Declaration Of Conformity
1. the type described in the EC Type Examination Certificate: - CE 51BP2707 for models Gazelle Techno 2200 e 2200VT - CE 51BP2706 for models Gazelle Techno Classic - CE 51BP2705 for models Gazelle Techno Premix in accordance with the provisions of Gas Directive 90/396/EC dated 29th June 1990, the fundamental requisites of which are fully met;... - Page 16 25079 VOBARNO (Brescia) Italy - Via Cerreto, 40 Tel. +39 - 0365 / 878 31 - Fax +39 - 0365 / 878 576 e mail: fondital@fondital.it - www.fondital.it The Manufacture reserves the right to make minor modifications to the products as required,...
