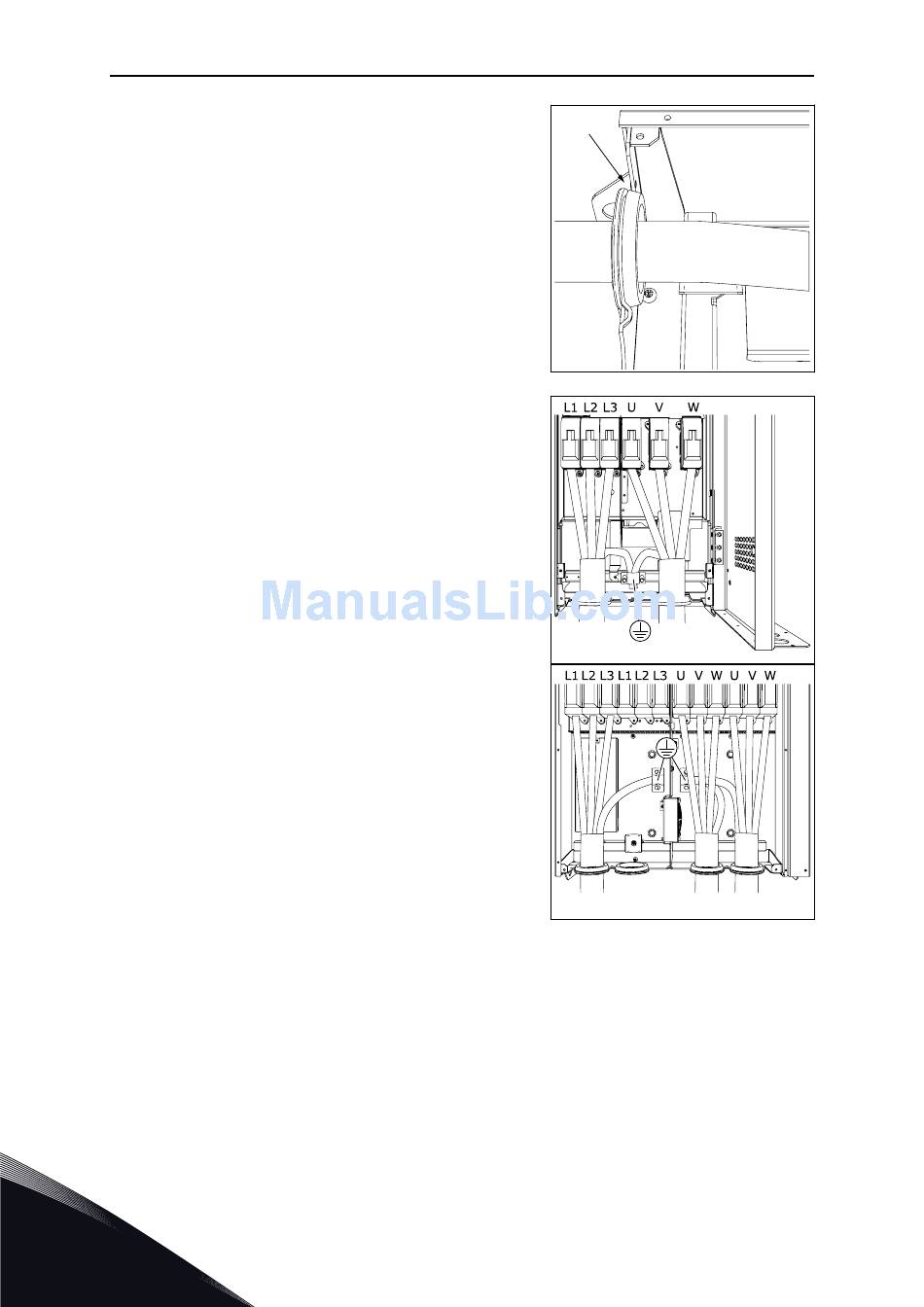

7 Attach the grommet and the cable until the frame
of the drive goes into the groove of the grommet.
a) With the enclosure class IP54 (UL Type 12), the
connection between the grommet and the cable
must be tight. Pull the first bit of the cable out
of the grommet until it stays straight.
b) If this is not possible, make the connection
tight with some insulation tape or a cable tie.
8 Connect the cables.
a) Connect the phase conductors of the mains
cable and of the motor cable into the correct
terminals. If you use a brake resistor cable,
connect its conductors into the correct
terminals.
b) Attach the grounding conductor of each cable
to a grounding terminal with a grounding
clamp for grounding conductor.
c) See the correct tightening torques in Table 38.
