Setting Up the Projector

Setting Up the Projector
For optimal image quality, position the projector perpendicular to the screen with the projector's feet fl at and
level.
Note
• The projector lens should be centered in the middle of the screen. If the horizontal line passing through
the lens center is not perpendicular to the screen, the image will be distorted, making viewing diffi cult.
• For optimal image, position the screen so that it is not in direct sunlight or room light. Light falling directly
on the screen washes out the colors, making viewing diffi cult. Close the curtains and dim the lights when
setting up the screen in a sunny or bright room.
• A polarizing screen cannot be used with this projector.

Standard Setup (Front Projection)

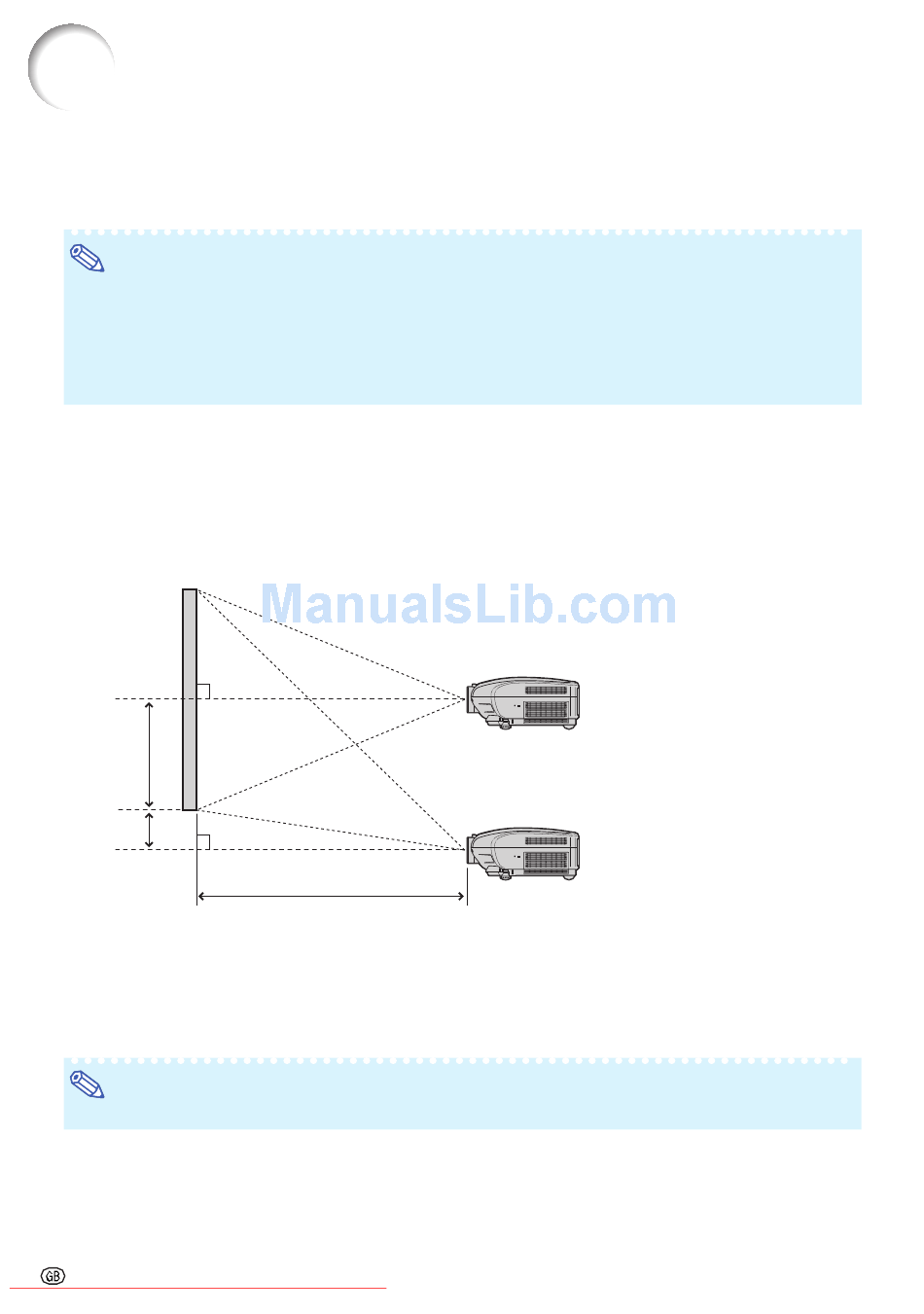

■ Place the projector at the required distance from the screen according to the desired picture size.
Example of standard setup
H1
H2
L : Projection distance
H1 : Distance from the lens center to the bottom of the image
(when the lens is shifted to the lowest position)
H2 : Distance from the lens center to the bottom of the image
(when the lens is shifted to the highest position)
Note
• For details, refer to "Picture (Screen) Size and Projection Distance" on page 16.
-14
Downloaded From projector-manual.com Sharp Manuals
90
°
Lens center
90
°
Lens center
L
Lens shifted to lowest position
Lens shifted to highest position
