C8051F12x-DK
7.9. VREF Connector (J22)
The VREF connector (J22) can be used to connect the VREF (Voltage Reference) output of the C8051F120 to any
(or all) of its voltage reference inputs. Install shorting blocks on J22 in the following manner:
1-2 to connect VREF to VREFD
3-4 to connect VREF to VREF0
5-6 to connect VREF to VREF1

8. EC2 Serial Adapter

The Serial Adapter provides the interface between the PC's RS232 serial port and the C8051F12x's in-system
debug/programming circuitry. The Serial Adapter connects to the C8051F120 JTAG debug interface on the target
board using the 10-pin connector on the Serial Adapter labeled "DEBUG", see Figure 5. (The Serial Adapter sup-
ports both Silicon Laboratories JTAG and C2 debug interfaces.). All Serial Adapters may be powered from the tar-
get board, but the EC1 and EC2 Serial Adapter units cannot provide power to the target board. Table 7 shows the
pin definitions for the Serial Adapter's DEBUG connector.
Notes:
• When powering the Serial Adapter via the DEBUG connector, the input voltage to the DEBUG connector's
power pin must be 3.0 to 3.6 VDC. Otherwise, the Serial Adapter must be powered directly by connecting
the AC/DC adapter to the Serial Adapter's DC power jack.
• The Serial Adapter requires a target system clock of 32 KHz or greater.
Table 7. EC2 Serial Adapter DEBUG Connector Pin Descriptions
10
Pin #
1 3.0 to 3.6 VDC Input
2,3,9
4
5
6
7
8,10
P in 1
P in 2

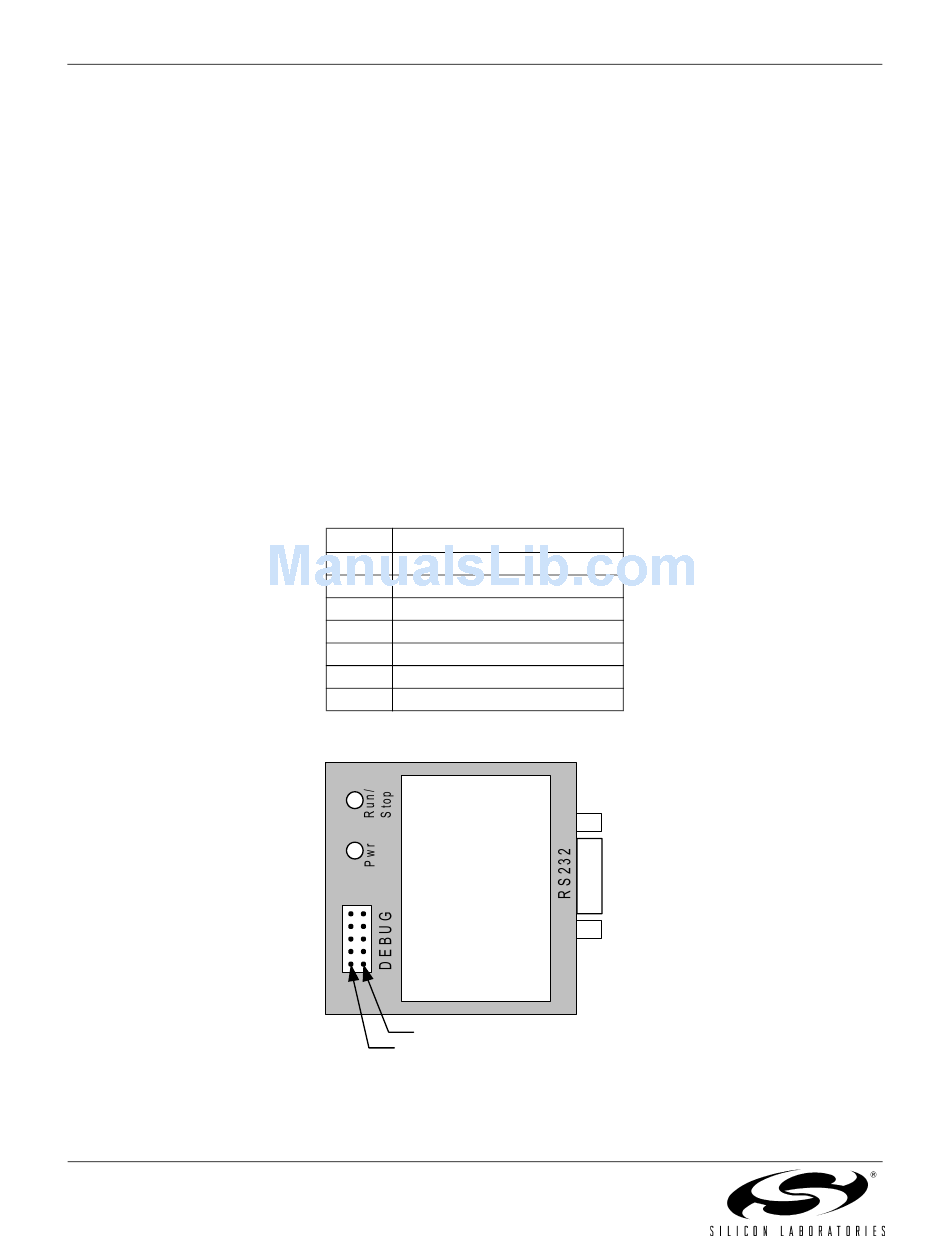

Figure 5. EC2 Serial Adapter DEBUG Connector
Description
GND (Ground)
TCK (C2D)
TMS
TDO
TDI (C2CK)
Not Connected
S e ria l
A d a p te r
Rev. 0.6
