Icom IC-F14 Service Manual Addendum page 35

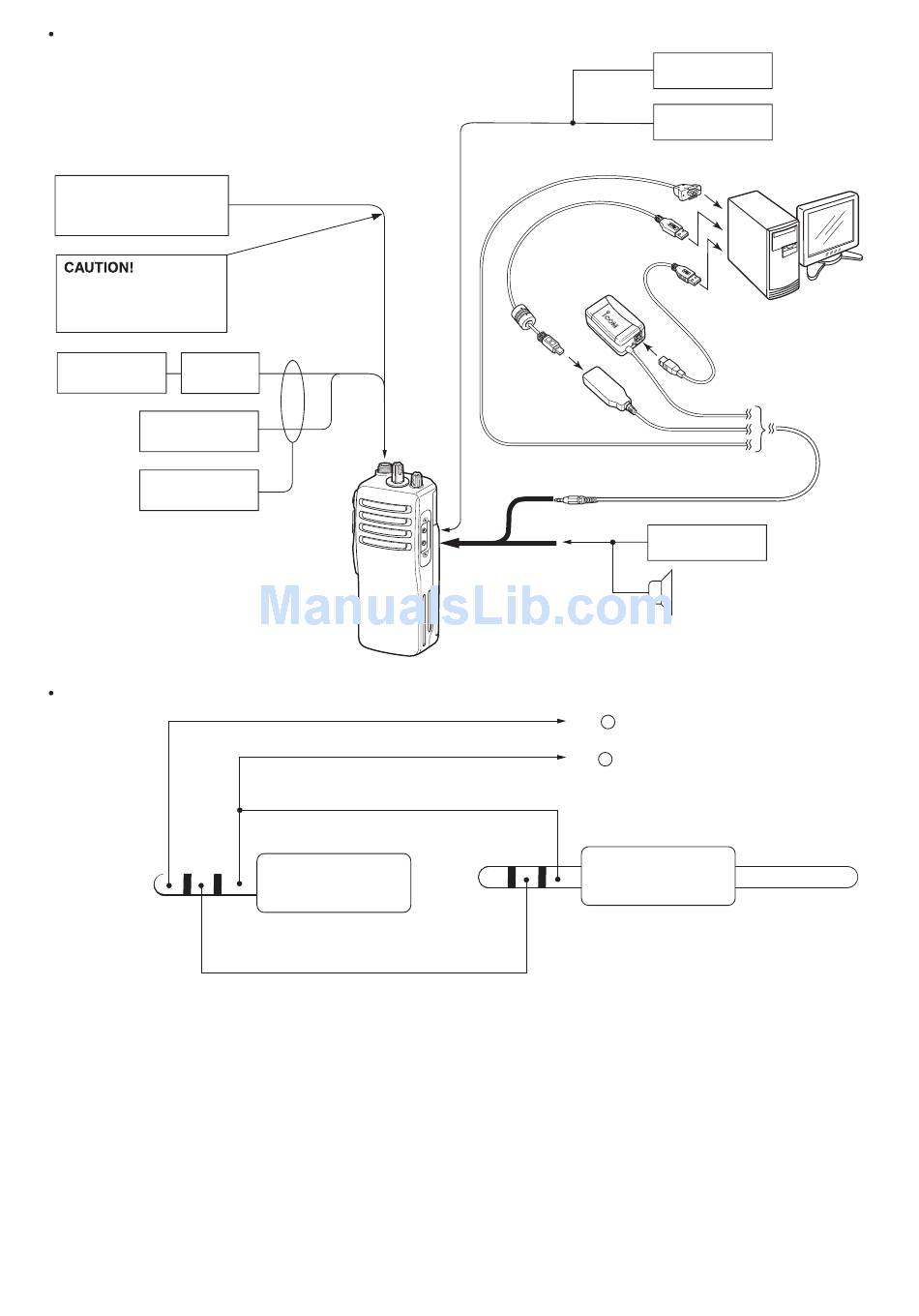

CONNECTION
Standard signal generator
0.1 µV to 32 mV
(–127 dBm to –17 dBm)
DO NOT transmit while
an SSG is connected to
the antenna connector.
FM Attenuator
deviation meter 20 dB / 30 dB
RF power meter
0.1–10 W/50 Ω
Frequency
counter
JIG CABLE
To [SP] jack
to the antenna connector
3-conductor 3.5(d) mm plug
JIG cable
To [MIC]
OPC-478
(RS-232C type)
to USB port
OPC-478U
(USB type)
OPC-478UC
(USB type)
To [SP] connector
JIG cable
To [SP]
( SP + )
(SP − )
(GND)
OPC-478/U/UC
(CLONE)
5 - 3
AC millivoltmeter
Audio generator
to RS-232C port
PC
to USB port
SINAD meter
Speaker (8 Ω)
