Icom IC-F14 Service Manual Addendum page 34

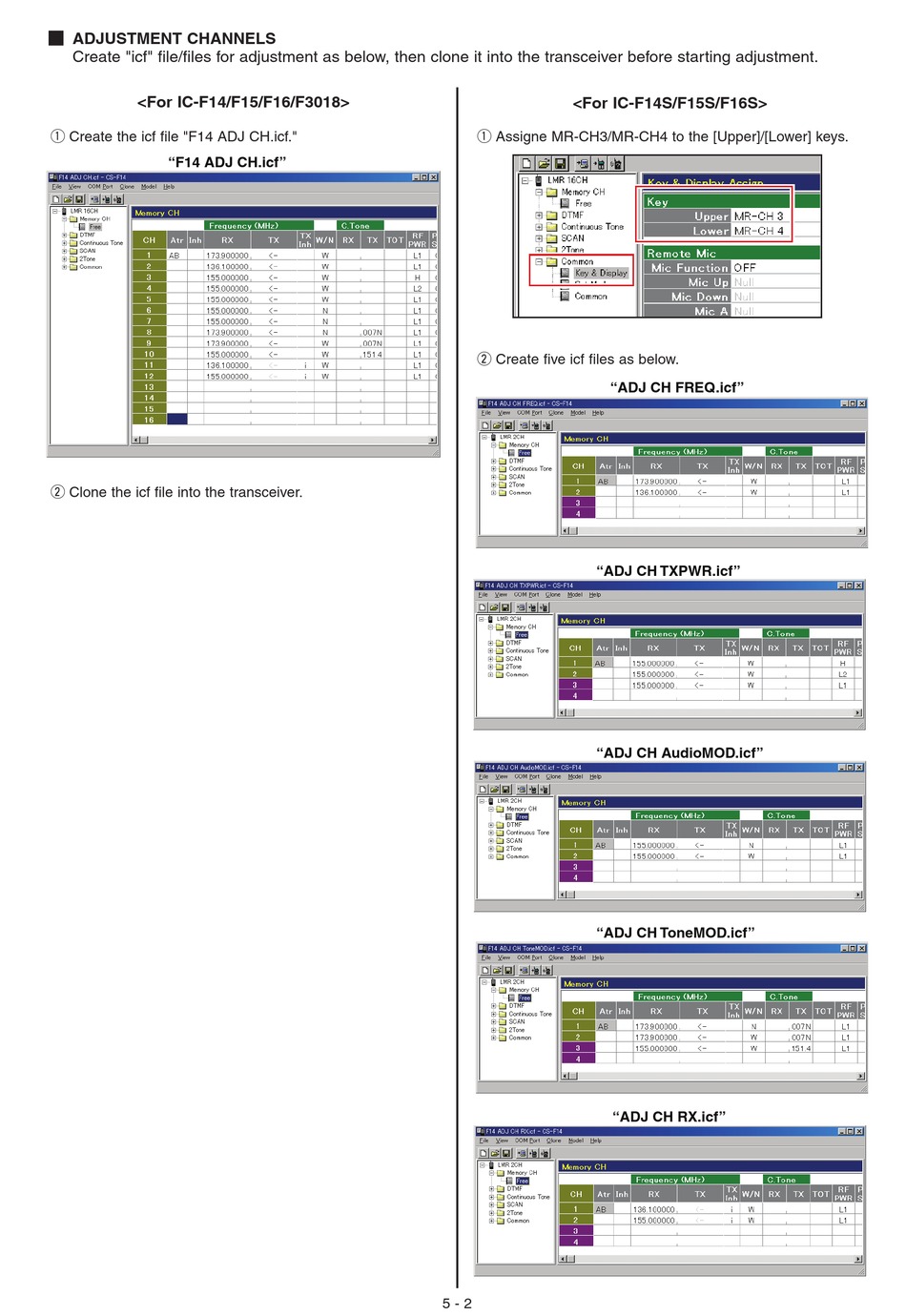

¤ ADJUSTMENT CHANNELS
Create "icf" file/files for adjustment as below, then clone it into the transceiver before starting adjustment.
<For IC-F14/F15/F16/F3018>
q Create the icf file "F14 ADJ CH.icf."
"F14 ADJ CH.icf"
w Clone the icf file into the transceiver.
<For IC-F14S/F15S/F16S>
q Assigne MR-CH3/MR-CH4 to the [Upper]/[Lower] keys.
w Create five icf files as below.
"ADJ CH FREQ.icf"
"ADJ CH TXPWR.icf"
"ADJ CH AudioMOD.icf"
"ADJ CH ToneMOD.icf"
"ADJ CH RX.icf"
5 - 2
