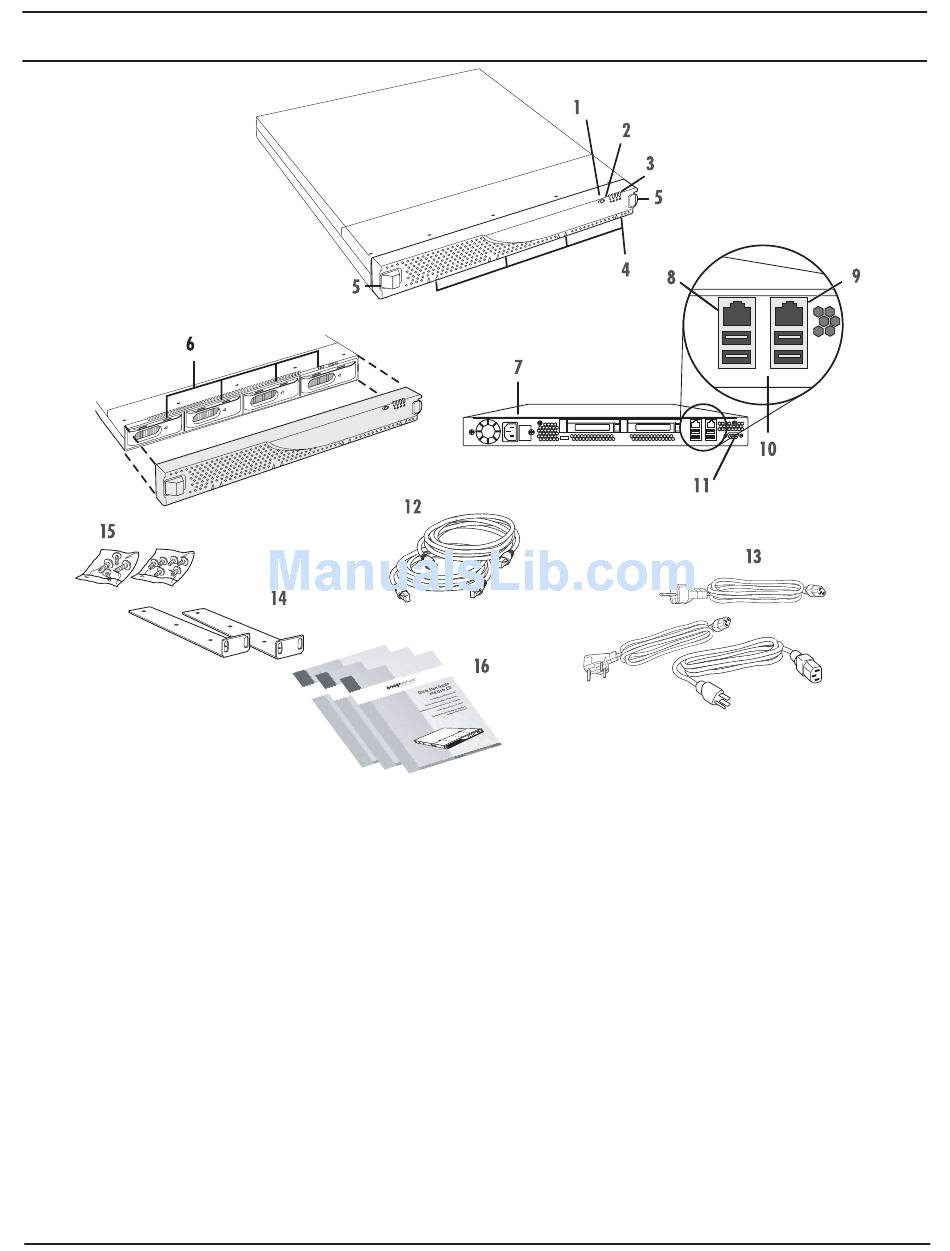

Hardware Features

1 Power button
2 Reset button
3 System status lights
4 Disk drive status lights
5 Bezel release mechanisms
6 Hot-swappable disk drives (4)
7 Power supply module
8 Primary Ethernet port
Note The USB connectors on the back of the Snap Server cannot be used for administrative purposes. Snap Servers
are managed via the browser-based Administration tool.
9 Secondary Ethernet port
10 USB ports (4)
11 Service connector
12 Ethernet cables (2)
13 Power cables (1 US, 1 UK, 1 EU)
14 Rackmount brackets (2)
15 Rack mount screws
16 Quick Start Guides and User CDs (3)
