1.4 Rear View

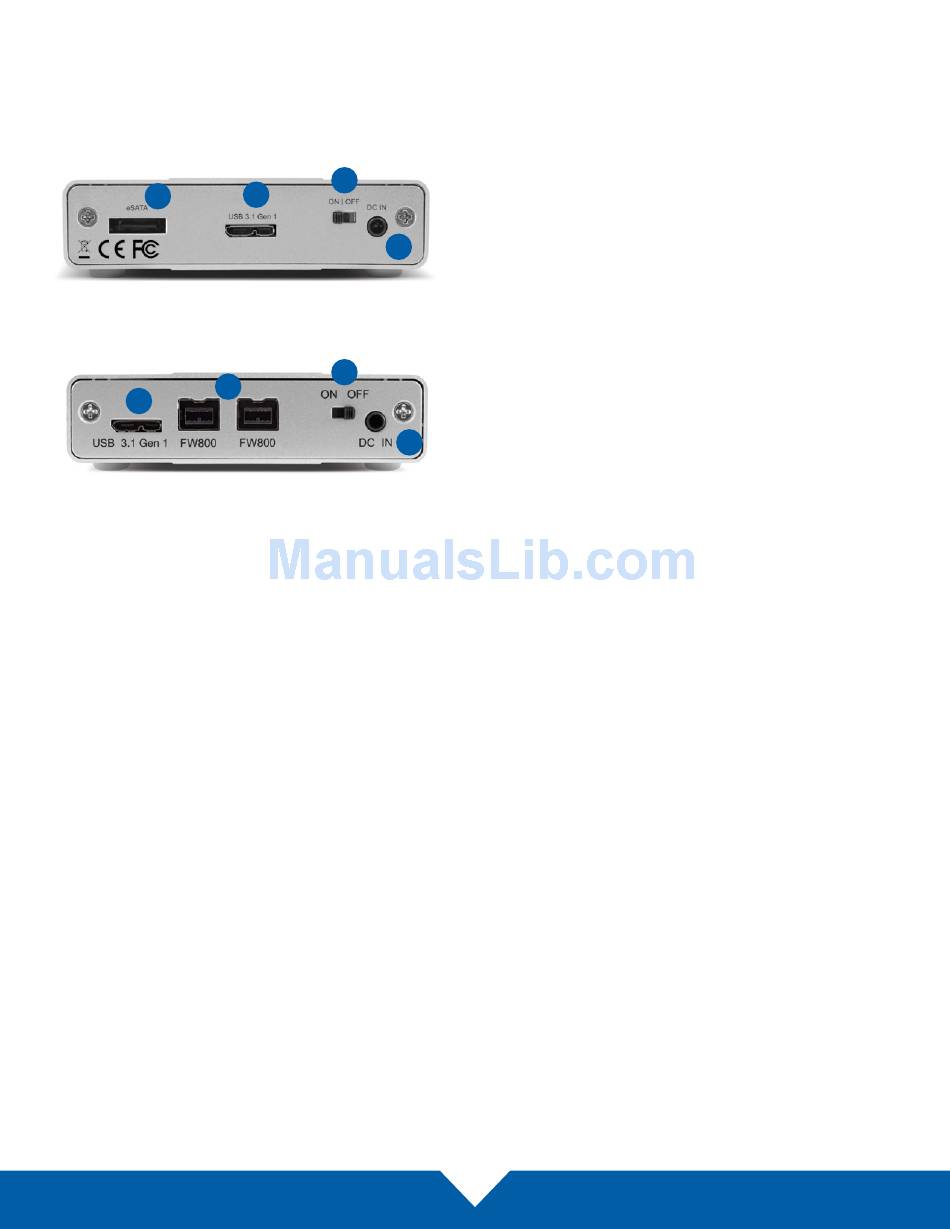

The Mercury Elite Pro mini comes in two port configurations:
USB 3.1 Gen 1 / eSATA
3
USB 3.1 Gen 1 / FireWire 800
1
1. USB 3.1 Gen 1 port — Attach the included USB 3.1 Gen
1 (Standard-A to Micro-B) cable here.
2. FireWire 800 ports — Attach the included FireWire 800
cable here. Use the other FireWire 800 port to daisy-chain
other FireWire 800 devices. NOTE: Any daisy-chained
device must use its own power supply. The Mercury Elite
Pro mini cannot bus-power other devices.
3. eSATA port — Attach the included eSATA cable here.
NOTE: The connector is keyed to use one specific
orientation. If the connector does not go in smoothly, do
not force it. Flip it over and re-insert it.
4. ON | OFF switch — Power the Mercury Elite Pro mini on
and off here.
5. DC IN — Connect the optional 5V power adapter here
(sold separately).
