Summary of Contents for AUDAC PX110

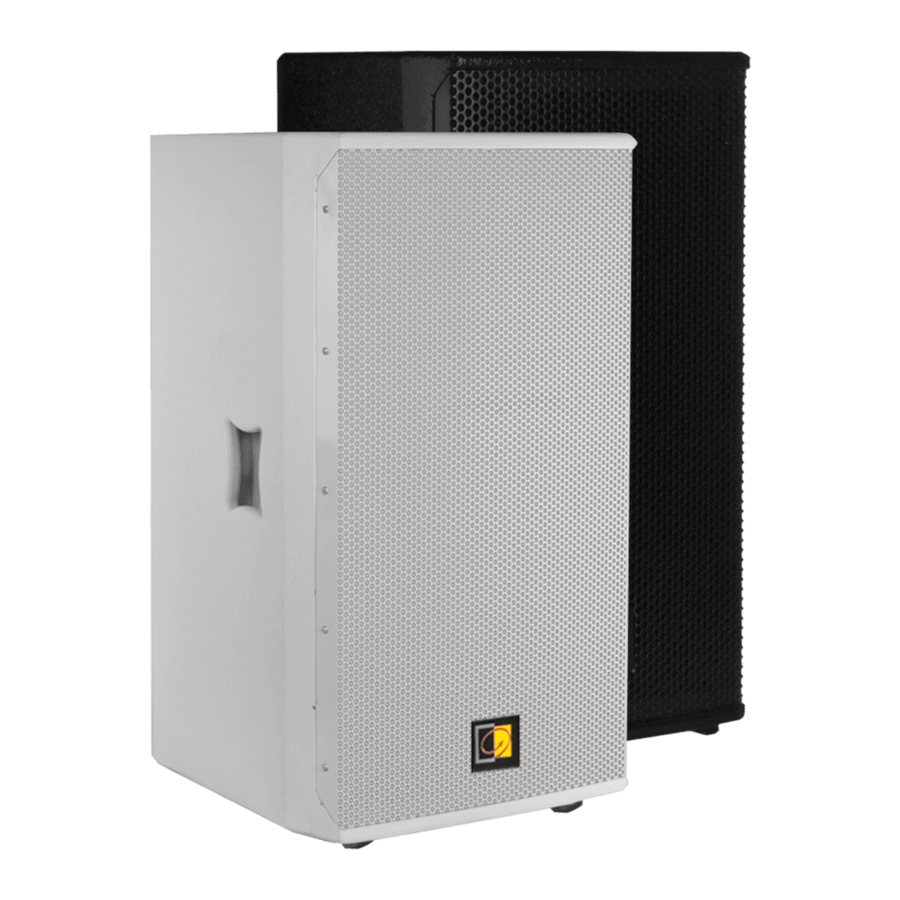

- Page 1 Speaker Cabinet PX110 AUDAC PROFESSIONAL AUDIO EQUIPMENT Speaker Cabinet PX110 User Manual & Instal l a ti o n Gui d e...
- Page 2 A U D A C P R O F E S S I O N A L A U D I O E Q U I P M E N T User Manual & Installation Guide AUDAC http://www.audac.be info@audac.be...
- Page 3 Warning Use only the correct amplifier output voltage and impedance, exceeding these limits could cause fire or other failures. Avoid explosions: do not use the speaker around gasoline, thinner or other combustibles. Only install the speaker in locations that can structurally support the weight of the speaker and the mounting bracket.
- Page 4 Caution Avoid electric shocks: switch off the amplifier power when connecting the speaker. Avoid installing the speaker in locations exposed to solvents, acids, smoke and heaters, as excessive exposure to these factors could result in speaker failure, fire or electric shock. ...
- Page 5 Installation Install the speaker with the mounting bracket MBK110 in an appropriate location. Tighten them with nuts and bolts. To adjust the directivity of the speaker, loosen the bolts at the top and bottom of the mounting bracket. Then you can position the speaker.
-
Page 6: Specifications
Specifications RMS Power 180 Watt Max Power 350 Watt SPL (1W/1M) 98 dB SPL (Max/1m) 120 dB Frequency Response -3 dB 80-18000 Hz Frequency Response -10 dB 65-20000 Hz Horizontal Coverage 90° Vertical Coverage 60° HF Driver 1 inch LF Driver 10 inch Crossover Frequency 2500 Hz...
