Renfert Silent TS2 Instruction Manual

Renfert Silent TS2 Instruction Manual

Nr. 2930 0050 / 2930 1050
Hide thumbs Also See for Silent TS2:

Advertisement

Silent TS2
Nr. 2930 0050 / 2930 1050
Ideas for dental technology
Made in Germany

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Silent TS2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Renfert Silent TS2

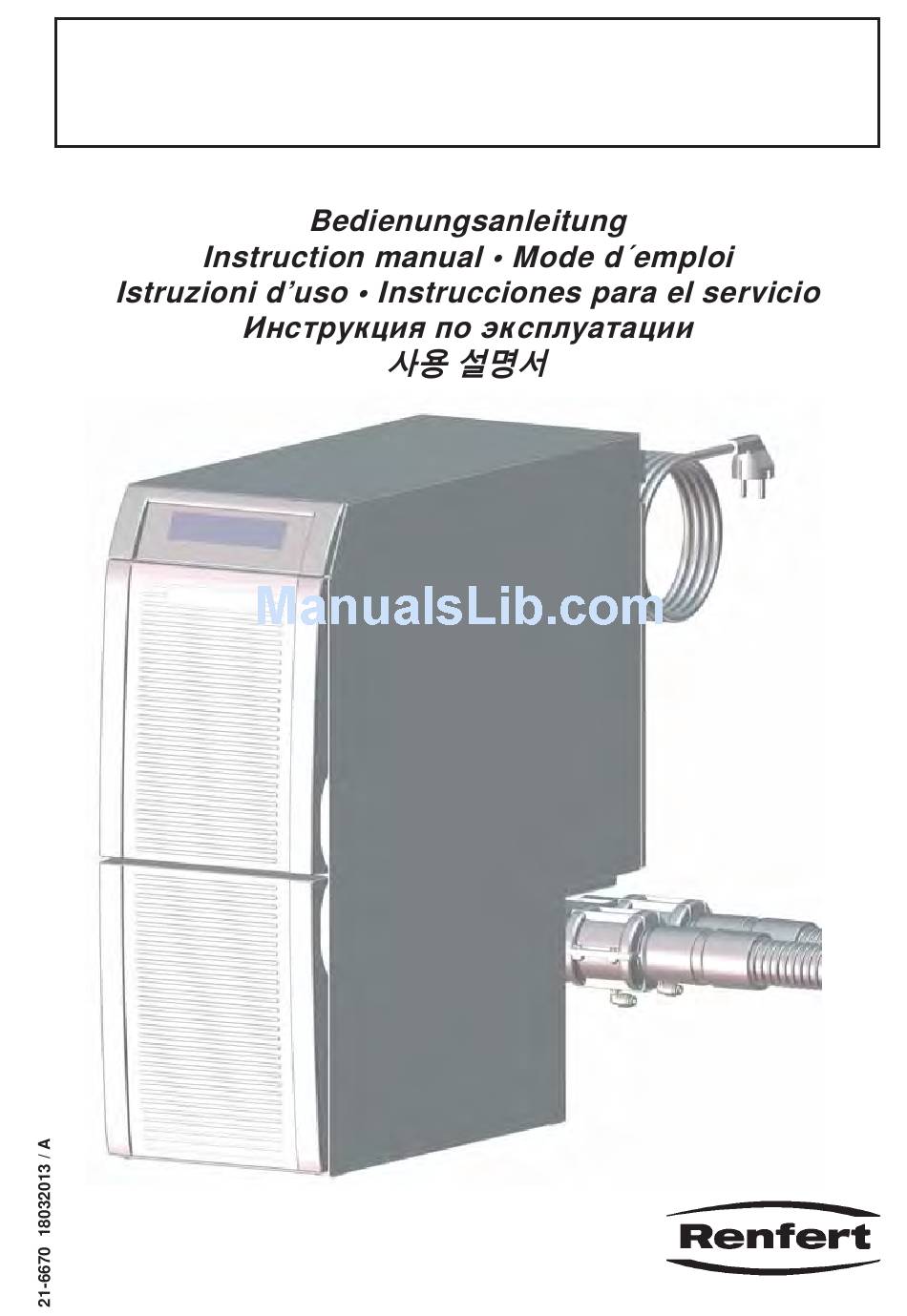

  • Page 1 Silent TS2 Nr. 2930 0050 / 2930 1050 Ideas for dental technology Made in Germany...
  • Page 2: Table Of Contents

    Silent TS2 Nr. 2930 0050 / 2930 1050 Content 1. Introduction ................................................. 1.1 Symbols 2. Safety ..................................................2.1 Intended Use ........................2.2 Improper Use ................... 2.3 Ambient Conditions for Safe Operation ................. 2.4 Ambient Conditions for Storage and Transport ...................
  • Page 3: Symbols

    ......................... 6.3 Self-Diagnosis ......................6.4 Safety Mechanism ...................... 6.5 Factory Set Parameter ........................6.6 Spare Parts 7. Troubleshooting ..............................................7.1 Error codes 8. Technical Data ....................... 9. Warranty .......................... 10. Disposal Information ........................................10.1 Disposing of Consumables ......................10.2 Disposing of the Unit ................
  • Page 4: Safety

    The manufacturer shall not be liable for damages caused by improper use. This device may only be serviced with accessories and spare parts supplied by the company Renfert. The use of other equipment is deemed as improper and carries the risk of serious injury.
  • Page 5: Authorized Persons

    The product is altered in any way other than those alterations described in the operating in- structions. The product is not repaired by an authorized facility or if non-original Renfert parts are imple- mented. The product continues to be used despite obvious safety faults or damage.
  • Page 6: Areas Of Application

    WB + D Suction hose A or B alternatively WP + D Suction hose A or B alternatively Components and Functional Elements 1 Silent TS2 12 Compressed air connection with com- 2 Key-pad 3 On / off switch sealed) 13 Motor compartment cover...
  • Page 7: Scope Of Delivery

    36 7 segment display 37 Suction level display MENU resetdefault Fig. 2 Scope of Delivery Silent TS2 Operating instructions Quick reference card Dust bag (ready for us in the dust drawer) Compressed air tube (sealed) Pinch valves with suction port...
  • Page 8: Setting Up

    4. Setting Up Unpacking Remove the device and all the accessories from the delivery package. Check the delivery for completeness (refer to the “Scope of Delivery” section). Setup bench). It is possible to connect up to two suction points. The distance to the suction points is approximately even. The front of the device is easily accessible for removal of dust drawer.
  • Page 9: Suction Pipe Alteration

    - Ensure the compressed air tubes (A, B) are connected to the correlating suction pipes (A, B). - Push the compressed air tube onto the pipe connection in the pinch valve as far as it will go. There will be a slight resistance to overcome when attaching. 4.5.1 Suction Pipe Alteration During the alteration, make sure that the compressed air tube is not unintentionally ripped away from the pinch valves.
  • Page 10: Electrical Connection

    Electrical Connection Electrical appliances can be connected to the coupler sockets (9, Fig.1) at the back of the unit. Check the connections are correct - coupler socket (A, B) - suction hose/pinch valve (A, B). When connecting electrical appliances to the extraction unit, please ensure that the power con- sumption of all devices connected to the unit power outlet does not exceed the total maximum power for connected equipment (see chapter 8, “tech.
  • Page 11: Extraction Force

    5.2.2 Extraction force The extraction force can be adjusted in three levels; the current ex- traction force is shown in the display (37). Button (43), increases extraction force TButton (41), reduces extraction force The set extraction force applies for both suction hoses. When another suction hose is opened or closed, the power in the Fig.
  • Page 12: Self Diagnosis

    5.3.1 Self Diagnosis MENU resetdefault Fig. 10 Press menu key (30) 1x The diagnosis symbol (31) blinks Switch the self diagnosis ON or OFF using the / buttons (41, 43) Press the enter button (40). 5.3.2 Audible Signal ched on or off. The audible signal symbol (32) shows whether the signal is on or off. MENU Fig.
  • Page 13: Start-Up Threshold

    Press menu key (30) 3x The dust drawer symbol (33) blinks The set sensitivity level is shown. Press enter button (40). 5.3.4 Start-Up Threshold MENU resetdefault Fig. 13 The start-up threshold, the point at which the connected electrical appliance opens the suction hose, can be individually adjusted for each hose.
  • Page 14: Cleaning / Maintenance

    Set the duration of time, until the pinch valve in the suction hose closes and the suction power for the other suction hose has readjusted. Select a longer amount of time in order to prevent short interruptions (e.g. when working with a hand piece motor) from switching the extractor on and off too frequently, therefore causing the suction power to be continuously be readjusted.
  • Page 15: Filters

    Dispose of the dust bag properly. Insert a new dust bag into the dust drawer. Ensure that the new dust bag is properly aligned in the Use only original Renfert dust bags (see spare parts list). Fig. 17 Inspect the dust drawer seal for damage and replace it, as...
  • Page 16: Replacing The Electronics Filter

    6.2.3 Replacing the Electronics Filter Cooling air for the unit’s electronics passes through the electro- on the ambient laboratory conditions. pull the cassette off. Fig. 21 6.2.4 Disconnect the appliance from the compressed air supply. Roll away the O-ring seal. screwdriver attached).
  • Page 17: Spare Parts

    Function / Feature Adjustment Range Factory Parameter Extraction force, one suction 1 - 3 hose is open Extraction force, both suction 1 - 3 hoses are open 1 - 9 Recognition Diagnosis - mode On / Off (after switching on) Audible Signal On / Off Automatic start-up threshold...
  • Page 18: Error Codes

    Error Possible Cause Corrective Action Extractor starts, Start-up threshold of one suction Check, which suction hose is open, the relevant letter although a connected hoses is too low. will be indicated in the display. device is not being Adjust the start-up threshold of the suction hose used.
  • Page 19: Technical Data

    Error Code Cause / Meaning Corrective Action Err22 Suction hose A blocked or defect. Make sure the suction line and pinch valve in the suction hose are not blocked. Err23 Suction hose B blocked or defect. Err26 Suction hose A or B permanently open. Make sure the pinch valve on the suction hose is not blocked that the pinch valve membrane is not defect.
  • Page 20: Warranty

    There is a guarantee on the suction motor for 800 working hours (motor running time).. Provided the unit is properly used, Renfert warrants all components for 3 years. Warranty claims may only be made upon presentation of the original sales receipt from the authorized motor, etc.
