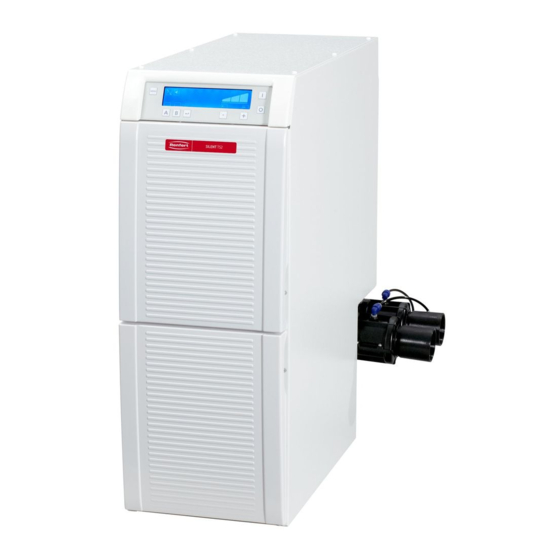

- Page 1 Silent TS2 Nr. 2930 0050 / 2930 1050 Bedienungsanleitung Instruction manual • Mode d’emploi Istruzioni d’uso • Instrucciones de servicio Инструкция по эксплуатации • Instrukcja obsługi 操作说明书 • 사용 설명서 Ideas for dental technology Made in Germany...
-
Page 2: Table Of Contents
Silent TS2 Nr. 2930 0050 / 2930 1050 ENGLISH Content 1. Introduction ................................................. 1.1 Symbols 2. Safety ..................................................2.1 Intended Use ........................2.2 Improper Use ................... 2.3 Ambient Conditions for Safe Operation ................. 2.4 Ambient Conditions for Storage and Transport ................... -
Page 3: Introduction
......................... 6.3 Self-Diagnosis ......................6.4 Safety Mechanism ...................... 6.5 Factory Set Parameter ........................6.6 Spare Parts 7. Troubleshooting ..............................................7.1 Error codes 8. Technical Data ....................... 9. Warranty .......................... 10. Disposal Information ........................................10.1 Disposing of Consumables ......................10.2 Disposing of the Unit ................ -
Page 4: Improper Use
The manufacturer shall not be liable for damages caused by improper use. Only spare parts and accessories supplied or authorized by Renfert GmbH may be used with this product. If other spare parts or accessories are used, this could have a detrimental effect on the safety of the device, increase the risk of serious injury and lead to damage to the environment or the device itself. -
Page 5: Specific Information
► The product is altered in any way other than those alterations described in the operating in- structions. ► The product is not repaired by an authorized facility or if non-original Renfert parts are imple- mented. ► The product continues to be used despite obvious safety faults or damage. -
Page 6: Areas Of Application
Suction hose A or B alternatively WB + D Suction hose A or B alternatively WP + D Suction hose A or B alternatively Components and Functional Elements Silent TS2 12 Compressed air connection with com- Key-pad pressed air filter (Compressed air tube is On / off switch sealed) -
Page 7: Scope Of Delivery
36 7 segment display 37 Suction level display MENU resetdefault Fig. 2 Scope of Delivery Silent TS2 Operating instructions Quick reference card Dust bag (ready for us in the dust drawer) Compressed air tube (sealed) Pinch valves with suction port... -
Page 8: Setting Up
4. Setting Up Unpacking ⇒ Remove the device and all the accessories from the delivery package. ⇒ Check the delivery for completeness (refer to the “Scope of Delivery” section). Setup The extraction unit is a free-standing appliance, intended to be set-up on the floor (e.g. under the work- bench). It is possible to connect up to two suction points. Position the extraction device so that: •... -
Page 9: Installing The Pinch Valves
Installing the Pinch Valves In order to prevent damage during transport, the following parts - pinch valves (15) - suction pipe (16) - holder (20) are not mounted on the device, but will be delivered in a pre-assembled state. ⇒ These must be installed onto the device before use: ⇒... -
Page 10: Electrical Connection
Long suction hoses, tight bends and kinks will considerably reduce the extraction force at the extraction point. If different suction hose lengths are used, the extraction force will be lower at the extraction point with the longer hose. Make sure that the suction hoses are the same length and diameter. Excess hose can be cut to size or laid in a large arch. -
Page 11: Operation
Operation 5.2.1 Extraction When the extractor is switched on it goes to the stand-by mode. When a suction hose is opened, the suction turbine switches to the last selected extraction force and the correlating pinch valve opens. When the second suction hose is then opened, the second pinch valve also opens. -
Page 12: Programming
Programming The menu function enables various extractor settings to be preset and saved. MENU resetdefault Fig. 9 In order to set different parameter, press the menu key (30) repeatedly. To confirm and save the adjusted settings press the enter button (40). An audible signal confirms that the settings have been successfully saved. If you do not wish to save the adjustments, press the menu key again (30) and the programming will be aborted. -
Page 13: Dust Bag Full
5.3.3 Dust Bag Full A full dust bag is indicated by the dust drawer symbol (33). The fill level of the dust bag depends on the type of dust accumulated. MENU resetdefault Fig. 12 The sensitivity of the “dust bag full” indication can be changed. This will also change the fill level within the dust bag, or duration until the signal “dust bag full” is shown. ⇒ Press menu key (30) 3 x. ♦... -
Page 14: Shut-Off Delay (3 - 30 Sec.)
⇒ Switch the electrical appliance on, e.g. activate the hand piece at the speed at which you require the suction hose to open. ⇒ Press the enter button (40). ⇒ Select the next suction hose which you would like to adjust, or quit this menu by pressing the menu key (30). -
Page 15: Cleaning / Maintenance
⇒ Insert a new dust bag into the dust drawer. Ensure that the new dust bag is properly aligned in the guide grooves (21) and the glue flap faces upwards. Use only original Renfert dust bags (see spare parts list). Fig. 17 ⇒ Inspect the dust drawer seal for damage and replace it, as required (24). -
Page 16: Replacing The Fine Particle Filter
6.2.1 Replacing the Fine Particle Filter Examine and replace the fine particle filter (6) on a regular basis, at least once a year. It must always be replaced if the dust drawer symbol (33, Fig. 2) blinks, despite a new dust bag having just been replaced. ⇒ Pull the upper front panel (4, Fig. 1) forward and off. ⇒... -
Page 17: Self-Diagnosis
Suction hoses are open Spare Parts You can find components subject to wear and the spare parts on the spare part list in the internet at www.renfert.com/p918. The components excluded from the warranty (such as consumables or parts subject to wear and tear) are marked on the spare part list. Serial number and date of manufacturing are shown on the type plate of the unit. -
Page 18: Troubleshooting
7. Troubleshooting Error Possible Cause Corrective Action Extractor stops sudden- • An error has been detected. • See table “Error Codes” ly for no apparent rea- If the instructions are of no help to you, or the error son and a error code is code is not listed: indicated in the display. -
Page 19: Error Codes
Error Possible Cause Corrective Action The extraction force is • The automatic extraction force re- • Activate the automatic extraction force readjustment not readjusted when a adjustment is deactivated. (See chapter 5.2.2). second suction hose is switched on or off. The display indicates •... -
Page 20: Technical Data
8. Technical Data Working Voltage 230 V 120 V Permissible mains voltage 220 - 240 V 120 V Mains frequency 50 / 60 Hz 60 Hz Suction turbine power *) 1400 W 1400 W max. connecting power *) 2000 W 360 W Total connected power *) 3400 W... -
Page 21: Warranty
There is a guarantee on the suction motor for 800 working hours (motor running time). Provided the unit is properly used, Renfert warrants all components for 3 years. Warranty claims may only be made upon presentation of the original sales receipt from the authorized dealer. - Page 22 Tel.: +49 7731 82 08-0 • Fax: +49 7731 82 08-70 www.renfert.com • info@renfert.com Renfert USA • 3718 Illinois Avenue • St. Charles IL 60174/USA Tel.: +1 6307 62 18 03 • Fax: +1 6307 62 97 87 www.renfert.com • info@renfertusa.com...
