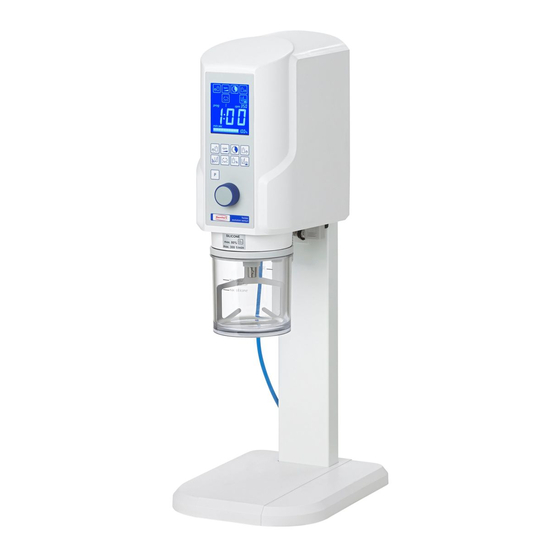

Renfert twister evolution Instruction Manual
Hide thumbs
Also See for twister evolution:
- Translation of the original instructions for use (296 pages) ,
- Instruction manual (128 pages) ,
- Quick start manual (81 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Renfert twister evolution
Summary of Contents for Renfert twister evolution
- Page 1 Bedienungsanleitung Ideas for dental technology Made in Germany...
-
Page 2: Table Of Contents
ENGLISH Instruction manual 1. Introduction 6. Programming ........................................... 1.1 Employed Symbols 6.1 Programme Selection ................................ 2. Safety 6.2 Displaying Mixing Parameters ................................... 2.1 Intended use 6.3 Setting / Saving Mixing Parameters ............................2.2 Improper use ..................6.3.1 Saving mixing parameter settings permanently ........ -
Page 3: Safety
This user information should be made available to the operator at all times. Intended use The Twister evolution / Twister evolution venturi vacuum mixer is designed solely for homogeneous, bubble-free mi- xing of dental casting and modelling materials such as plasters, investments, and silicones. -
Page 4: Product Description
Standard Delivery 1 Vacuum mixer 1 500 ml bowl, incl. blunger 1 Mains cable 1 Compressed air hose, 2 m (Twister evolution venturi only) 1 Pneumatic connection set (Twister evolution venturi only) 1 Operating instructions 1 Drill template 1 Fastening set... -
Page 5: Commissioning
Commissioning Setup Recommendations Operate the appliance at room temperature 15 - 30ºC [59 – 86ºF]. Do not place the appliance under a heat source. Do not place the appliance in front of open windows. Do not set the appliance up where it will be subjected to direct sunlight. Do not subject the appliance to high humidity. -
Page 6: Compressed Air Supply
Post-vacuum Interval ***) Premix, plaster Premix, invest- ment **) Twister evolution venturi Display The information which appears on the display varies according to the operating state. 5.2.1 Initial state 20 Number of program selected. 21 Large mixing time display. -
Page 7: Standby Mode
5.3.1 Standby mode The appliance will go into standby mode if no button is pressed or it stands idle for more than three minutes. Press any parameter key. Turn the control knob. Press the control knob. Couple the mixing bowl to the appliance. The previously used programme and its mixing parameters are shown again. -
Page 8: Abort Mixing Process
5.4.1 Abort mixing process 1. Stop the mixing process. Press the control knob once. The appliance will beep. Mixing process being aborted 2. Aerate bowl. Hold the bowl! Press the control knob. The bowl will be released in a few seconds. 3. -
Page 9: Saving Mixing Parameter Settings Temporarily
6.3.2 Saving mixing parameter settings temporarily 1. Select mixing parameter settings. Press parameter key. Mixing parameter symbol will appear in the display. Mixing parameter setting is displayed in large-scale characters for approx. 4 sec. or until another key is pressed. 2. -
Page 10: Changing Fuses
7.3.1 7.3.2 Changing fuses Before replacing a fuse, disconnect the appliance from the mains. Never use a fuse of larger impedance. 1. Switch the appliance off. 2. Disconnect from mains. 3. Unlatch the fuse holder (7) on both sides and remove. 4. -
Page 11: Changing The Silencer
Changing the silencer only 1. Unscrew and remove silencer (11). 2. Fit and screw in new silencer. Spare Parts For the order numbers of consumables and spare parts please refer to the spare parts list at the end of this manual. Serial number, production date and unit version can all be found on the unit‘s type plate. -
Page 12: Error Codes
Error Cause Solution Vacuum release / venting, Silencer plugged. Replace the silencer. (Sec. 7.6). too slow. Solenoid valve fault. Have the device repaired. Bowl detection pin sticking. Clean area around pin. No vacuum being gene- rated. Have the device repaired. Solenoid valve fault. -
Page 13: Technical Data
(w./o. bowl) *) sound pressure level in accord. with EN ISO 11202 10. Guarantee Renfert gives a 3-year guarantee on all parts of the Twister / provided that the product is used in accordance with the operating instructions. The original sales invoice of the specialist depot is required for a claim under guarantee.
