Made in Germany

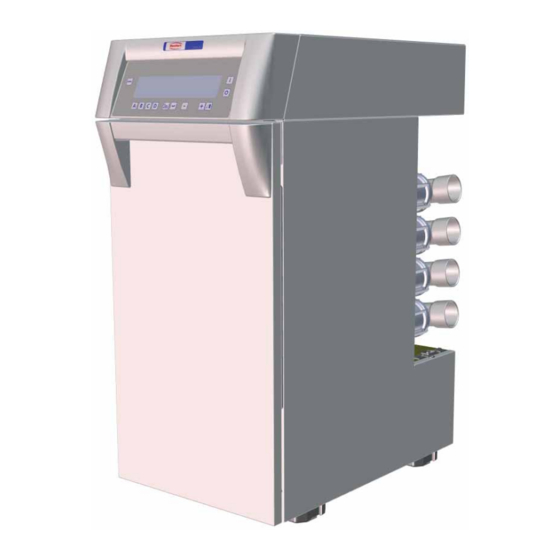

Silent V4
Nr. 2933 0000
Ideas for dental technology
DE
EN
FR
IT
ES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Silent V4 and is the answer not in the manual?

Questions and answers

Related Manuals for Renfert Silent V4

Summary of Contents for Renfert Silent V4

  • Page 1 Silent V4 Nr. 2933 0000 Ideas for dental technology Made in Germany...

  • Page 2: Table Of Contents

    Silent V4 Nr. 2933 0000 ENGLISH 1. Introduction ..................... 1.1 Symbols ..............................2 2. Safety ......................2.1 Intended Use ............................3 2.2 Improper Use ............................3 2.3 Ambient Conditions for Safe Operation ....................3 2.4 Ambient Conditions for Storage and Transport ..................3 2.5 Hazard and Warning Information ......................

  • Page 3: Introduction

    6.5 Spare Parts ............................20 7. Troubleshooting ..................... 7.1 Error codes ............................22 8. Technical Data ....................8.1 Silent V4 ..............................23 8.2 Quattro Control-Box ..........................24 9. Warranty ......................10. Disposal Information ..................10.1 Disposing of Consumables ........................24 10.2 Disposing of the Unit ..........................

  • Page 4: Safety

    The manufacturer shall not be liable for damages caused by improper use. This device may only be serviced with accessories and spare parts supplied by the company Renfert. The use of other equipment is deemed as improper and carries the risk of serious injury.

  • Page 5: Authorized Persons

    The product is altered in any way other than those alterations described in the operating in- structions. The product is not repaired by an authorized facility or if non-original Renfert parts are imple- mented. The product continues to be used despite obvious safety faults or damage.

  • Page 6: Product Description

    5 Dust drawer 17 Power supply QCB 18 Power cable 7 Pinch valve with suction port (rotatable) 1 x Silent V4 (the 120 V version is attached to 8 Suction hose (not contained in delivery) the Silent V4) 9 Compressed air tube...

  • Page 7: Scope Of Delivery

    Fig. 2 Scope of Delivery 1 Silent V4 1 Power cable Silent V4 (the 120 V version is attached to the Silent V4) 1 Quattro Control-Box (= QCB) 1 Power cable QCB (the 120 V version is attached to the QCB)

  • Page 8: Setting Up

    4. Setting Up Unpacking Remove the device and all the accessories from the delivery package. Check the delivery for completeness (refer to the “3.3 Scope of Delivery” section). Setup bench). Up to four suction points can be connected to the extraction unit. The exhaust air duct at the back of the unit is not hindered.

  • Page 9: Connection To The Extraction Point

    Connection to the Extraction Point The extraction point is at the extractor connection The items “pinch valve and suction ports” are rotat- able. When you turn the pinch valve, please ensure that there are no kinks in the compressed air tubes and that they are not unintentionally ripped off! The suction ports are marked with the letters A, B,...

  • Page 10: Connecting The Electric Appliances

    Connecting to the Silent V4: Connect the QCB interface cable (10) to QCB interface (12) on the extraction unit. Connect the QCB interface cable (10) to the connection point (20) of the Quattro Control-Box. Fig. 6 4.6.2 Connecting the Electric Appliances Connect the electric appliances to the appliance socket connections (16, Fig.

  • Page 11: Turbo Level

    Turbo Level an additional turbo level. In this case the extraction unit runs at its maximum performance. (39) at the suction level display. Switch turbo level on: Press turbo key (49). Switch turbo level off: Press turbo key (49) again Fig.

  • Page 12: Multi Use

    5.4.2 Multi Use When in multi use, multiple suction channels are open at the same time. The suction performance is evenly distributed over all opened suction channels. Fig. 11 Select multi use: Press operation mode key (44) repeatedly until the multi mode symbol (52) is shown. The suction level display will show the level which was last used in the multi use mode.

  • Page 13: Favorite Status

    5.4.5 Favorite Status ONLY possible in the Multi Use mode! The favorite status allows ONE suction channel to be designated an individual suction level. If the suction channel with the favorite status is opened, the suction level is adjusted to this value and then also applies to all opened suction channels.

  • Page 14: Programming

    Programming total MENU reset resetdefault Fig. 13 The menu function enables various extractor settings to be preset and saved. In order to set different parameter, press the menu key (30) repeatedly. the settings have been successfully saved. If you do not wish to save the adjustments, press the menu key again (30) and the programming will be aborted.

  • Page 15: Audible Signal

    5.6.2 Audible Signal switched on or off. The audible signal symbol (32) shows whether the signal is on or off. It is not advisable to switch these acoustic signals off. total MENU reset resetdefault Fig. 15 Press menu key (30) 2 x. The audible signal symbol (32) blinks.

  • Page 16: Switch On Threshold

    5.6.4 Switch On Threshold The switch on threshold for automatic operation (see section 5.4.3) can be individually set and saved for each suction channel. total MENU reset resetdefault ONOFF Fig. 17 Press menu key (30) 4 x. The start-up threshold symbol (34) blinks. The letters A, B, C, D blink.

  • Page 17: Operating Hours Counter

    Press menu key (30) 5 x. total MENU reset resetdefault Fig. 19 The switch off time symbol (35) blinks. The letters A, B, C, D blink. Press the suction channel key (42) of the channel which is to be set. The letter of the suction channel to be set is shown in the display.

  • Page 18: Single / Multi Use

    Press menu key (30) 6 x. The operating hours symbol (36) blinks. Press key (46). “Reset” is shown (36). The number of operating hours since the last reset is shown. Press and hold keys (46, 48) at the same time until the operating hours are reset to zero. The digit “zero”...

  • Page 19: Cleaning / Maintenance

    6. Cleaning / Maintenance Inside the extractor there are small parts which require maintenance. Opening the device, other than for the processes described below, is not permissible! Emptying the Dust Drawer After 95 % of the set time (see section 5.6.3) has elapsed, the unit will demand the dust drawer to be The dust drawer symbol blinks (33, Fig.

  • Page 20: Safety Fuses

    and close. closed. Replace the cover plate and close with the screws. First place the base of the front panel onto the unit, then push the upper part of the panel against the snap fasteners to close. If it is not possible to close the cover plate, screws (25, Fig.

  • Page 21: En 6.4 Factory Set Parameter

    Factory Set Parameter When the function “reset to factory set parameter” is activated, all individually set information is lost and overwritten by factory set values. This does not apply for the operating hour values. Extraction off Press button (46, 48, Fig. 2) and keep pressed. Extraction on Press button (46, 48, Fig.
  • Page 22 Error Possible Cause Corrective Action The letter from a suction In the single use mode only one channel is blinking and suction channel can be opened at the other. the suction channel can- a time. There is currently a suction Select the multi use mode, but to do so all suction not be opened.

  • Page 23: Error Codes

    Error Possible Cause Corrective Action The fuse in the QCB is The total power consumption of the Please observe the max. connected load for the QCB triggered when a con- activated appliances is too high. (see section 8.2). nected electrical appli- ance is switched on.

  • Page 24: Technical Data

    2933 0420, remote control starter kit. Distribution box faulty. Send distribution box in for repair. 8. Technical Data Silent V4 Nominal mains voltage / Nominal frequency 230 V / 50 Hz 230 V +/-10 % Permissible mains voltage...

  • Page 25: Quattro Control-Box

    1 kg 9. Warranty Provided the unit is properly used, Renfert warrants all components for 3 years. Warranty claims may only be made upon presentation of the original sales receipt from the authorized motor, etc. …) are excluded from this warranty.
