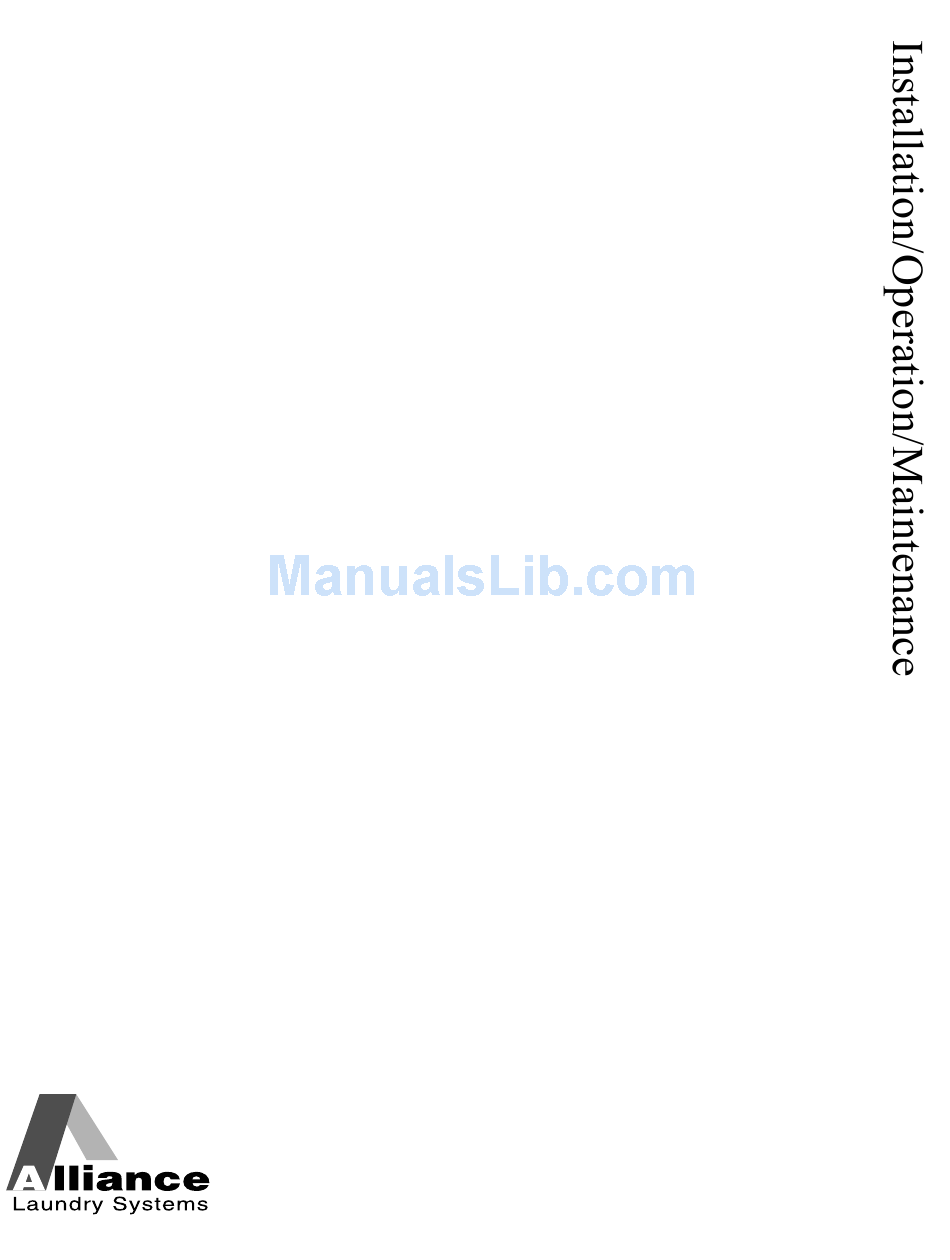

- Page 1 Washer-Extractors Cabinet Freestanding Refer to Page 9 for Model Identification Original Instructions Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. D1625ENR4 www.alliancelaundry.com January 2016...
-
Page 3: Table Of Contents
Circuit Breakers and Quick Disconnects............34 © Copyright 2016, Alliance Laundry Systems LLC All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. - Page 4 Beginning of Day..................51 End of Day....................51 Quarterly......................52 Every 6 Months.................... 52 Care of Stainless Steel................... 55 Disposal of Unit..................56 Disconnecting the Machine................56 Disposal of Unit....................56 © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT...
-
Page 5: Safety Information
Be aware that hazardous chemicals may be present. Wear hand and eye protection when adding detergents and W023 chemicals. Always read and follow manufacturer’s instruc- © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... - Page 6 W820 © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT...
-
Page 7: Safety Decals
ENCE WITH ITS SETTING MAY LEAD TO SERIOUS RISK FOR THE OPERATOR! A DAMAGED OR INCOR- RECTLY FUNCTIONING DOOR HANDLE MUST AL- WAYS BE IMMEDIATELY REPLACED WITH A NEW ORIGINAL PART. C014 © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... -
Page 8: Operator Safety
Do not bypass any safety devices in the machine. WARNING Operating the machine with severe out-of-balance loads could result in personal injury and serious equipment damage. W728 © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... -
Page 9: Introduction
If literature or replacement parts are required, contact the source from which the machine was purchased or contact Alliance Laun- © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... -
Page 10: Customer Service
Shepard Street P.O. Box 990 Ripon, WI 54971-0990 U.S.A. www.alliancelaundry.com Phone: +1 (920) 748-3121 Ripon, Wisconsin Alliance International: +32 56 41 20 54 Wevelgem, Belgium © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... -
Page 11: Specifications And Dimensions
[mm] Cylinder vol- 2.3 [65] 2.6 [75] 3.7 [105] 4.8 [135] 6.4 [180] 8.5 [240] 9.9 [280] ume ft Door Opening Information Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... - Page 12 90 [194] 90 [194] 90 [194] 90 [194] 90 [194] [°C] Noise Emissions Wash se- quence, dB Extract se- quence, dB Floor Load Data Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT...
- Page 13 °F [°C] Relative Hu- 30%-90% without condensation midity Height above up to 3280 [up to 1000] sea level ft. Storage Tem- 34-131 [1-55] perature, °F [°C] © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT...
-
Page 14: Machine Dimensions
22. Drain valve or recycle valve - 3 in. [76 mm] (28 kg / 70 lb. / 280 L Models only) 23. Drain valve - 1/2", applicable for wash bath sample (on request only) Figure 1 © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... - Page 15 8.58 [218] 8.58 [218] 8.58 [218] 8.58 [218] 8.58 [218] 4.44 [113] 4.44 [113] 4.44 [113] 4.44 [113] 4.44 [113] 4.44 [113] 4.44 [113] Table 1 © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT...
-
Page 16: Mounting Bolt Hole Locations
31.29 [795] 38.18 [970] 38.18 [970] 38.18 [970] 25.25 [641.5] 27.22 [691.5] 27.22 [691.5] 33.12 [841.5] 34.31 [871.5] 39.62 [1006.5] 42.60 [1082] Table 2 continues... © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... - Page 17 240 L 280 L Models Models Models Models Models 21.65 [550] 23.62 [600] 24.02 [610] 26.77 [680] 25.98 [660] 31.30 [795] 34.25 [870] Table 2 © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT...
-
Page 18: Floor Mounting Layout
Dimensional Clearances, in. [mm] Distance to wall (minimum) 20 [500] Distance of machine to side wall or other machine (mini- 0.79 [20] mum) Table 3 © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... -
Page 19: Installation
3. Place the machine carefully over the two drilled holes. 4. Check that the machine is seated in a perfectly level manner. Adjust leveling legs as needed. © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... -
Page 20: Shipping Brace Removal
3. Remove both rear transport holders. IMPORTANT: The machine may not be moved with the shipping braces removed. Save the shipping braces for future use. © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... -
Page 21: Machine Installation
5. Place the machine in the required position. 6. Check that all the rubber leveling legs of the load sensors are stable. © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... -
Page 22: Drain Connection
Tighten the nut. d. Put the machine down and verify that the load applied to each sensor is within the specified range. © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... -
Page 23: Drain Valve
3. Waste channel 4. Waste channel cover Figure 10 Specification Model Requirement Drain connection number Drain connection size, in. [mm] 3 [76] Table 4 continues... © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... - Page 24 Drain Line Sizing / Minimum Drain ID, in. [mm] A - 1 Machine B - 2 Machines C - 3 Machines 3 [75] 4 [100] 5 [125] Table 5 © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT...
-
Page 25: Drain Pump, 7 Kg - 8 Kg / 14 Lb. - 20 Lb. / 65 L - 80 L Models
Connect a flexible hose to a drain pipe so that the hose bend must not be located lower than the water level to provide sufficient si- CHM2482N_SVG 1. Drain hose bend Figure 12 © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... -
Page 26: Water Connection Requirements
© Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... - Page 27 NOTE: No more than two (2) water connection hoses Alliance Laundry Systems, LLC ranges of front loading commer- should be used on WRAS-approved models. cial clothes washing machines have solenoid valves at the inlets.
-
Page 28: Water Reuse Connection
The tank must have an overflow to the sewer. Water from the Temperature range, °F [°C] 41 to 194 [5 to 90] sewer must not be able to flow back into the reuse tank. Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... -
Page 29: Electrical Installation Requirements
(laundry switchboard). Refer to Figure 19 . Electrical connections are made at the rear of the machine. The machine must be connected to the proper electrical supply shown © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... -
Page 30: Residual Current Device (Rcd) - Models Outside Of North America
5. Phase conductors 6. Protective conductor 7. Main switch inlet terminal switchboard 8. Neutral conductor Figure 19 IMPORTANT: Alliance Laundry Systems warranty does not cover components that fail as a result of improper input voltage. © Copyright, Alliance Laundry Systems LLC - Part No. -
Page 31: Supply Cable
4. Crimp a ring terminal to the protection conductor so it stays fixed to the PE terminal. © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... - Page 32 Provide a sag in the cable, in front of the strain relief. This 7. U will prevent condensed water from dripping into the machine. Refer to Figure 21 or Figure 22 . Figure 21 © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT...
-
Page 33: Machine Protective Earth Connection And Equipotential Bonding
Determining AWG Sizes). However, for the protection purposes, with the supply cable cross section of a min. 4 mm , select a larg- er conductor section, i.e., 6 mm © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... -
Page 34: Input Power Conditioning
W810 IMPORTANT: All quick disconnects should comply with the specifications. DO NOT use fuses instead of circuit breakers. © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... -
Page 35: Connection Specifications
Electrical Service Wire Connection Terminal PE (Ground) Table 10 Neutral Electrical Connection Terminal Block PE (Ground) Table 11 Electrical Connection Terminal Block Figure 23 CHM2499N_SVG Figure 25 © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... -
Page 36: Three-Phase Connections
Electrical Service Wire Connection Terminal Electrical Service Wire Connection Terminal PE (Ground) PE (Ground) Table 13 Table 12 Electrical Connection Terminal Block CHM2501N_SVG Figure 28 © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... -
Page 37: Phase Adder
IMPORTANT: Do not use a phase adder on any ma- chine. Thermal Overload Protector For models with inverter drives, the inverter drive provides over- load protection for the drive motor. © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... -
Page 38: Electrical Specifications - Models Outside Of North America
50-60 3 (L1, L2, L3) 9.9 (6) 380-415 50-60 3 (L1, L2, L3) 15.3 (9) 440-480 50-60 3 (L1, L2, L3) 13.8 (9) Table 14 © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... - Page 39 50-60 3 (L1, L2, L3) 10 (6) 380-415 50-60 3 (L1, L2, L3) 15.4 (9) 440-480 50-60 3 (L1, L2, L3) 13.9 (9) Table 15 © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT...
- Page 40 3 (L1, L2, L3) 14 (9) 380-415 50-60 3 (L1, L2, L3) 12.8 19.9 (12) 440-480 50-60 3 (L1, L2, L3) 12.8 18.2 (12) Table 16 © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT...
- Page 41 3 (L1, L2, L3) 10.1 14.8 (9) 380-415 50-60 3 (L1, L2, L3) 13.1 19.9 (12) 440-480 50-60 3 (L1, L2, L3) 13.1 18.7 (12) Table 17 © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT...
- Page 42 3 (L1, L2, L3) 13.5 19.7 (12) 380-415 50-60 3 (L1, L2, L3) 19.5 30.5 (18) 440-480 50-60 3 (L1, L2, L3) 19.5 27.2 (18) Table 18 © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT...
- Page 43 3 (L1, L2, L3) 440-480 50-60 3 (L1, L2, L3) 380-415 50-60 3 (L1, L2, L3) 31.5 (18) 440-480 50-60 3 (L1, L2, L3) 28.2 (18) Table 19 © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT...
-
Page 44: Electrical Specifications - North American Models
8 kg / 20 lb. / 80 L Models Circuit Full Load Breaker Code Voltage Cycle Phase Wire Amps 200-240 2 (L1, L2 or 14 (2.5) L1, N) Table 21 © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... - Page 45 Full Load Breaker Code Voltage Cycle Phase Wire Amps 200-240 2 (L1, L2 or 12 (4) L1, N) 440-480 3 (L1, L2, 14 (2.5) Table 25 © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT...
-
Page 46: Steam Requirements (Steam Heat Option Only)
5. Fit rear cover back to its original place. Steam Valve Installation 1. Remove the rear cover. 2. Fit the bracket with the steam valve and filter onto the rear part of machine. © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... -
Page 47: Supply Dispensing
NOTE: Do not attempt to make chemical injection sup- ply pump electrical connections to points other than those provided specifically for that purpose by the fac- tory. © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... -
Page 48: Electrical Connection Of External Liquid Soap Supply System
"P", fix up the cable by tightening the cable bushing against disconnections and close the box with the cover. For details about liquid soap supply sytem programming, refer to Programming Manual. © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... -
Page 49: Operation
10. The wash cycle time is counted down to zero on the display. After completion, the door lock unlocks and the display shows “UNLOAD”. © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... -
Page 50: Power Cut
If a long term power cut occurs, the module unlocks the door lock. It is then possible to open the door and remove laundry. © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... -
Page 51: Maintenance
Rinse with clean water and dry. immediately. Beginning of Day 1. Check door interlock before starting operation: © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... -
Page 52: Quarterly
Unscrew the lid and remove any foreign objects. f. Reattach pump lid and front panel of cabinet. 3. Remove dust or dirt and verify functionality of the following: a. Inverter cooling fin © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... - Page 53 6.49 [8.8] Figure 36 Door hinge and front panel 6.49 [8.8] bolts Anchoring bolts 73.76 [100] External tub bolts - 19.18 [26] Table 30 continues... © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT...
- Page 54 18 kg - 28 kg / 0 - 0.39 [0 - 10] 40 lb. - 70 lb. / 180 L - 280 L Table 31 © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT...
-
Page 55: Care Of Stainless Steel
Locate the pump and tubing below the machine’s injection point to prevent siphoning of chemicals into the machine. © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT... -
Page 56: Disposal Of Unit
The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact the local city office, © Copyright, Alliance Laundry Systems LLC - Part No. D1625ENR4 DO NOT COPY or TRANSMIT...
