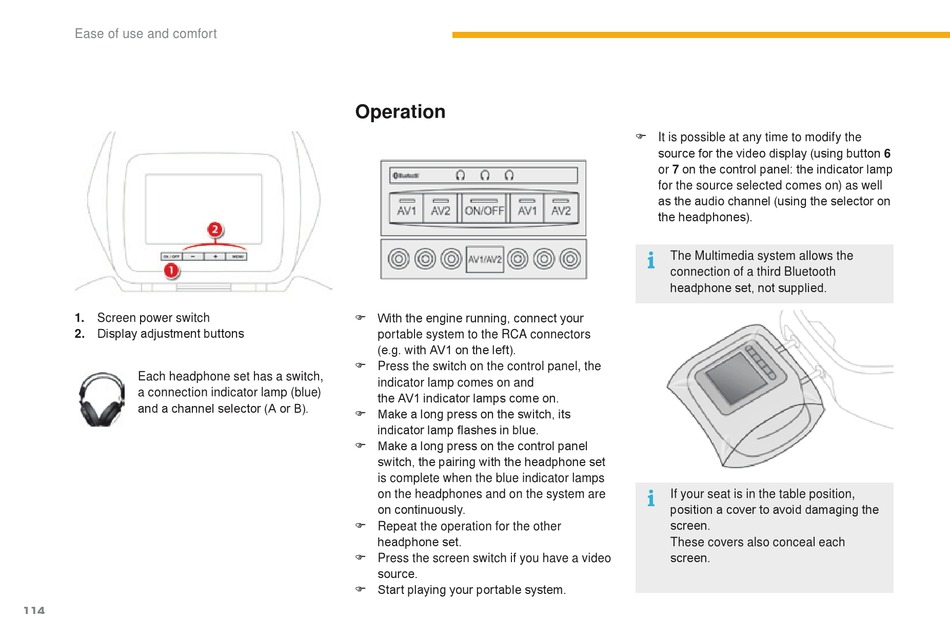

CITROËN C4 PICASSO Handbook page 116

Ease of use and comfort
1. Screen power switch
2. Display adjustment buttons
Each headphone set has a switch,
a connection indicator lamp (blue)
and a channel selector (A or B).
114
Operation
F With the engine running, connect your
portable system to the RCA connectors
(e.g. with AV1 on the left).
F Press the switch on the control panel, the
indicator lamp comes on and
the AV1 indicator lamps come on.
F Make a long press on the switch, its
indicator lamp flashes in blue.
F Make a long press on the control panel
switch, the pairing with the headphone set
is complete when the blue indicator lamps
on the headphones and on the system are
on continuously.
F Repeat the operation for the other
headphone set.
F Press the screen switch if you have a video
source.
F Start playing your portable system.
F It is possible at any time to modify the
source for the video display (using button 6
or 7 on the control panel: the indicator lamp
for the source selected comes on) as well
as the audio channel (using the selector on
the headphones).
The Multimedia system allows the
connection of a third Bluetooth
headphone set, not supplied.
If your seat is in the table position,
position a cover to avoid damaging the
screen.
These covers also conceal each
screen.
