MANUAL PARKING BRAKE
Applying
Pull the parking brake lever fully up to immobilise your vehicle.
Releasing
Pull the parking brake lever up gently, press the release button
then lower the lever fully.
FUEL TANK
DIESEL
A. Opening the fuel ller ap.
Capacity of the fuel tank: approximately 60 litres.
MISFUEL PREVENTION
Mechanical device which prevents lling the tank of a Diesel vehicle
with petrol. It avoids the risk of engine damage that can result from
lling with the wrong fuel.
Located in the ller neck, the misfuel prevention device appears
when the ller cap is removed.
Operation
When a petrol ller nozzle is introduced into the fuel ller neck of
your Diesel vehicle, it comes into contact with the ap. The system
remains closed and prevents lling.
Do not persist but introduce a Diesel type ller nozzle.
Fiche_loueur_B71_C4_01-2010_an.i1 1
Fiche_loueur_B71_C4_01-2010_an.i1 1
BONNET
Opening
Open the front left door.
Pull the interior bonnet release lever A , located at the bottom
of the door frame.
Push the exterior safety catch B to the left and raise the bonnet.
Unclip the stay C from its housing.
Fix the stay in the notch to hold the bonnet open.
Closing
Take the stay out of the support notch.
Clip the stay in its housing.
Lower the bonnet and release it at the end of its travel.
Pull on the bonnet to check that it is secured correctly.
PANORAMIC SUNROOF
1. Opening the blind (four positions possible).
2. Closing the blind (initial position).
QUICK START GUIDE
2-BUTTON REMOTE CONTROL
A. Unfolding/Folding the key
Complete or selective unlocking of the vehicle
Normal locking
3-BUTTON REMOTE CONTROL
A. Folding/unfolding the key
Complete or selective unlocking of the vehicle
Selective unlocking of the boot.
Normal locking
STEERING WHEEL ADJUSTMENT
1. Unlocking the adjuster.
2. Adjustment for height and reach.
3. Locking the adjuster.

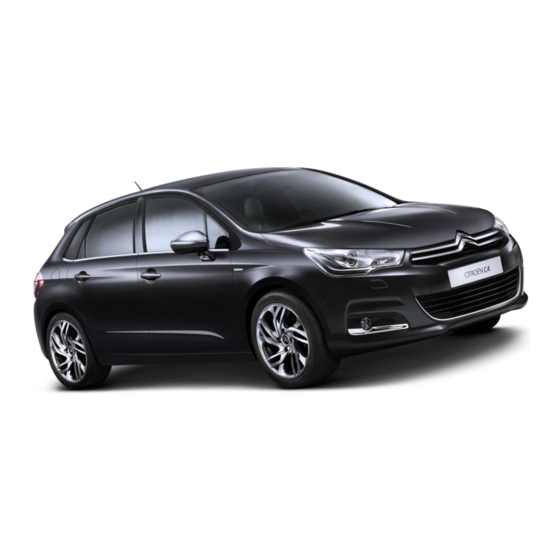

CITROËN C4
ELECTRIC PARKING BRAKE
Manual application/release
Manual application of the parking brake is possible by pulling
the control lever A .
With the ignition on, manual release of the parking brake
is possible by pressing the brake pedal and pulling then
releasing the control lever A .
Automatic application/release
Press the accelerator pedal and let the clutch pedal up (manual
gearbox), the parking brake is released automatically and
progressively as you move off.
With the vehicle at rest, on switching off the engine the parking brake
is applied automatically.
If this warning lamp is on in the instrument panel, the
automatic application/release is deactivated ;
apply and release the parking brake manually.
Before leaving the vehicle, check that the
brake warning lamp in the instrument panel
and the P warning lamp in the control lever A
are on xed (not ashing) .
