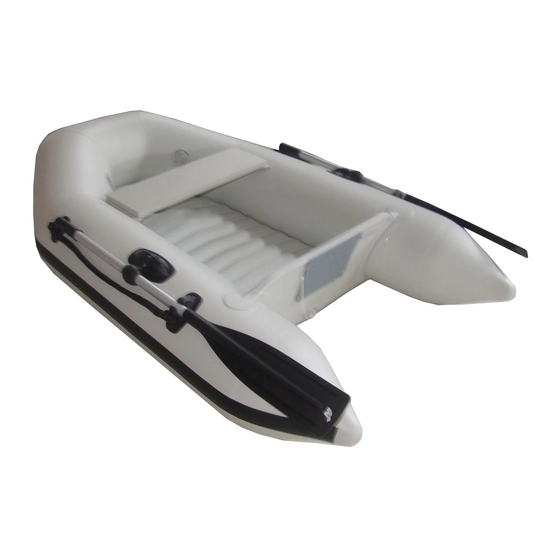

Summary of Contents for Mercury DINGHY 200

  • Page 1 Dinghy...
  • Page 3 All of us at Mercury Marine want to thank you for choosing a Mercury Marine inflatable boat. You have made a sound investment in boating pleasure. We believe it will bring you many years of boating fun and excitement. This Owner's Manual contains all the safety and operating information you need to get the most out of your inflatable boat.
  • Page 4 Copyright and Trademark Information © MERCURY MARINE. All rights reserved. Reproduction in whole or in part without permission is prohibited. Alpha, Axius, Bravo One, Bravo Two, Bravo Three, Circle M with Waves Logo, K‑planes, Mariner, MerCathode, MerCruiser, Mercury, Mercury with Waves...

  • Page 5: Table Of Contents

    Warranty Information Transfer of Warranty................... 1 Warranty Registration United States and Canada..........1 Mercury Inflatable Boat Limited Warranty United States and Canada....2 General Information Boater's Responsibilities..................5 Before Operating Your Boat ................5 Lanyard Stop Switch................... 5 Protecting People in the Water................8 Wave and Wake Jumping...................
  • Page 6 Repairs General Repair Information................26 Air Floor Repair....................26 Air Chamber Repair—PVC Fabric..............26 Storage Storage Preparation..................28 Owners Service Assistance Service Assistance................... 29 Parts and Accessories Inquiries............... 30 Service Away from Home................. 30...

  • Page 7: Warranty Information

    For Mercury Marine's Privacy Policy, visit https:// www.mercurymarine.com/en/us/privacy‑policy. NOTE: Registration lists must be maintained by Mercury Marine and any dealer of Mercury Marine products sold in the United States, should a safety recall notification under the Federal Safety Act be required.

  • Page 8: Mercury Inflatable Boat Limited Warranty United States And Canada

    WARRANTY INFORMATION You may change your registered address at any time, including at time of warranty claim, by calling Mercury Marine or sending a letter or fax with your name, old address, new address, and engine serial number to Mercury Marine’s warranty registration department.
  • Page 9 Mercury Marine dealer authorized to service the product. If the purchaser cannot deliver the product to such a dealer, written notice must be given to Mercury Marine's service department. We will then arrange for the inspection and any covered repair.
  • Page 10 No individual or entity, including Mercury Marine‑authorized dealers, has been given the authority by Mercury Marine to make any affirmation, representation, or warranty regarding the product, other than those contained in this limited warranty, and if made, shall not be enforceable against Mercury Marine.

  • Page 11: General Information

    GENERAL INFORMATION Boater's Responsibilities The operator (driver) is responsible for the safe operation of the boat and the safety of its occupants and the general public. It is strongly recommended that the operator read and understand this entire manual before operating the boat. Be sure that at least one additional person on board is instructed in the basics of starting and operating the outboard and boat handling in case the driver is unable to operate the boat.
  • Page 12 GENERAL INFORMATION The lanyard cord is usually 122–152 cm (4–5 feet) in length when stretched out, with an element on one end made to be inserted into the switch and a clip on the other end for attaching to the operator's PFD or wrist. The lanyard is coiled to make its at‑rest condition as short as possible to minimize the likelihood of lanyard entanglement with nearby objects.
  • Page 13 GENERAL INFORMATION While activation of the lanyard stop switch will stop the engine immediately, a boat will continue to coast for some distance depending upon the velocity and degree of any turn at shut down. However, the boat will not complete a full circle.

  • Page 14: Protecting People In The Water

    GENERAL INFORMATION Protecting People in the Water WHILE YOU ARE CRUISING It is very difficult for a person standing or floating in the water to take quick action to avoid a boat heading in his/her direction, even at slow speed. 21604 Always slow down and exercise extreme caution any time you are boating in an area where there might be people in the water.

  • Page 15: Impact With Underwater Hazards

    GENERAL INFORMATION The primary concern is the boat changing direction while in the midst of the jump. In such cases, the landing may cause the boat to veer violently in a new direction. Such a sharp change in direction can cause occupants to be thrown out of their seats or out of the boat.

  • Page 16: Exhaust Emissions

    Operating a boat or engine with impact damage can result in product damage, serious injury, or death. If the vessel experiences any form of impact, have an authorized Mercury Marine dealer inspect and repair the vessel or power package. Exhaust Emissions...

  • Page 17: Safe Boating Recommendations

    GENERAL INFORMATION Engine exhaust gases contain harmful carbon monoxide. Avoid areas of concentrated engine exhaust gases. When engines are running, keep swimmers away from the boat, and do not sit, lie, or stand on swim platforms or boarding ladders. While underway, do not allow passengers to be positioned immediately behind the boat (platform dragging, teak/body surfing).
  • Page 18 (refer to your boat's capacity plate). Know your boat's operating and loading limitations. Know if your boat will float if it is full of water. When in doubt, contact your authorized Mercury Marine dealer or the boat manufacturer. Ensure that everyone in the boat is properly seated.

  • Page 19: Specifications

    GENERAL INFORMATION • Boat operators are required by law to file a boating accident report with their state boating law enforcement agency when their boat is involved in certain boating accidents. A boating accident must be reported if 1) there is loss of life or probable loss of life, 2) there is personal injury requiring medical treatment beyond first aid, 3) there is damage to boats or other property where the damage value exceeds $500.00, or 4) there is...

  • Page 20: Manufacturer's Plate

    GENERAL INFORMATION Model Description ISO 6185 parts 1‑II 1‑II 1‑II Tube fabric Boat bottom/keel Same as tube Same as tube Same as tube fabric fabric fabric fabric Air floor fabric Manufacturer's Plate The manufacturer's plate is located on the inside of the boat transom. 51561 Example manufacturer's plate;...
  • Page 21 GENERAL INFORMATION Boat Design Navigation Wind Force and Wave Height Categories Designed for extended voyages where conditions may exceed wind force 8 (Beaufort Ocean scale) and wave heights of 4 m (13 ft) and higher. Designed for offshore voyages where conditions may experience wind force 8 Offshore (Beaufort scale) and wave heights up to 4 m...

  • Page 22: Boat Components

    BOAT COMPONENTS Components Location BACK VIEW 24737 Hull identification number (HIN) TRANSOM VIEW 58527 Air deck floor Air deck air chamber valve Motor plate Manufacturer's plate...
  • Page 23 BOAT COMPONENTS SIDE VIEW 58526 Starboard tube Transom (with engine attaching plate) Port tube Air deck floor Rowing seat Inflatable tube valve D‑handle for haulage Rope holder Rope Oarlock...

  • Page 24: Operation

    OPERATION Inflating NOTICE Overinflation may result in damaged seams or bulkheads. Do not use a compressed air source to fill the air chambers. IMPORTANT: Do not inflate or deflate one air chamber at a time. When inflating or deflating, maintain a balanced air pressure between the air chambers to prevent stress or potential damage to the inside diaphragms that separate the air chambers.
  • Page 25 OPERATION 3. Insert and lock the fill adapter into the air pump hose. “INFLATE” 52296 Hose Air gauge Double‑action/single‑action valve Inflate port Air pump hose Fill adapter 52300 INFLATING THE BOAT NOTE: Air pressure can be measured using the air gauge provided with the air pump or using an accessory air pressure gauge.
  • Page 26 OPERATION c. Remove the valve caps by turning a quarter of a turn counterclockwise. d. Verify that the valve stems are in the closed position. Push the valve stem in and rotate it to the closed position. e. Attach the air hose adapter to the air valve. Air valve Air hose adapter 52297...

  • Page 27: Outboard Power

    OPERATION 4. After inflating the Air Deck ® floor, remove the valve cap from the keel air chamber valve by turning a quarter of a turn counterclockwise. Push the valve stem in and rotate it to the closed position. Attach the air hose adapter to the air valve.

  • Page 28: Loading

    OPERATION • Instruct at least one passenger in the basics of boat handling and the starting and operation of the outboard, in case the driver becomes disabled or falls overboard. • Before departing, tell someone where you are going and when you expect to return.

  • Page 29: Towing

    OPERATION Position the passengers evenly in the boat. 240/270 58528 X = occupant position Towing If the inflatable boat is to be towed by another boat, the inflatable boat must be empty. Remove the outboard, fuel tank, and equipment. Attach a single towing line to the mooring ring on front of the hull and slowly tow the boat.

  • Page 30: Maintenance

    MAINTENANCE Cleaning Procedure FABRIC SURFACES Inflate the air chambers. Clean the fabric with a mild soap and fresh water solution. Rinse it with fresh water and dry it thoroughly. Open the drain valve. Use a hose to wash out any debris from the interior. ®...

  • Page 31: Folding Instructions

    MAINTENANCE 4. Push in the valve stems on the side air chambers to release the air pressure evenly on all chambers. Push in the valve stem and turn the stem a quarter turn clockwise to lock the valve in the open position. Folding Instructions 1.

  • Page 32: Repairs

    Larger areas, or if the patch will overlap a seam, should be patched by a professional repair technician at an inflatable repair station. Contact your local Mercury dealer for the nearest inflatable repair station.
  • Page 33 REPAIRS Cut out a patch large enough to overlap the damaged area by 38 mm (1.5 in.) on all sides. Center the patch over the damaged area, and trace the outline of the patch with a pencil. Apply masking tape around the perimeter of the outlined patch area to ensure a tight and clean glue line.

  • Page 34: Storage

    STORAGE Storage Preparation NOTE: The boat should be cleaned and rinsed with fresh water before being placed in long‑term storage. Refer to the Cleaning Procedure . IMPORTANT: To prevent fabric discoloration from marine growth or polluted waters, do not store the boat in water for extended periods of time. Clean the boat fabric and air deck floor following the Cleaning Procedure in the Maintenance section.

  • Page 35: Owners Service Assistance

    Your satisfaction with your inflatable product is important to your dealer and to us. If you ever have a problem, question, or concern about your inflatable boat or outboard motor, contact your dealer or any authorized Mercury Marine dealership. If additional assistance is required, take these steps.

  • Page 36: Parts And Accessories Inquiries

    Sakai‑shi, Osaka 590‑0984, Japan Asia, Singapore Telephone +65 65466160 Brunswick Asia Pacific Group T/A Mercury Marine Singapore Pte Ltd 29 Loyang Drive +65 65467789 Singapore, 508944 Parts and Accessories Inquiries All inquiries concerning genuine replacement parts and accessories should be directed to your local authorized dealer.

This manual is also suitable for:

Dinghy 240Dinghy 270
