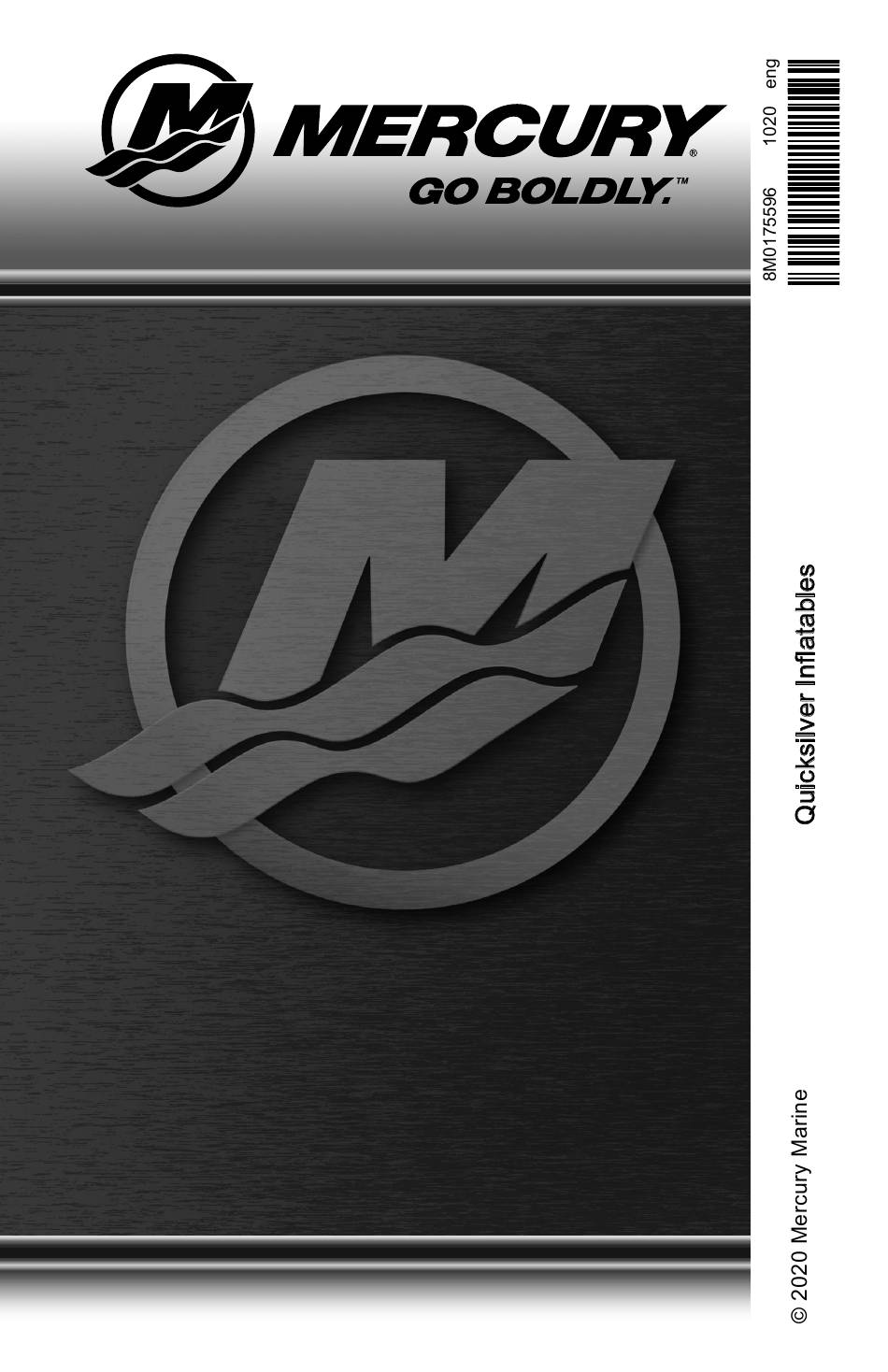

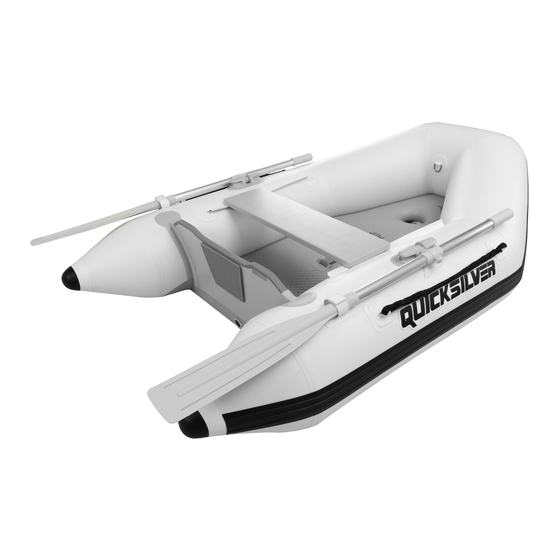

  • Page 1 Inflatables...
  • Page 3 All of us at Mercury Marine want to thank you for choosing a Quicksilver inflatable boat. You have made a sound investment in boating pleasure. We believe it will bring you many years of boating fun and excitement. This operation manual contains all the safety and operating information you need to get the most out of your inflatable boat.
  • Page 4 Mercury Marine, Fond du Lac, Wisconsin U.S.A. Copyright and Trademark Information © MERCURY MARINE. All rights reserved. Reproduction in whole or in part without permission is prohibited. Alpha, Axius, Bravo One, Bravo Two, Bravo Three, Circle M with Waves Logo, GO BOLDLY, K‑planes, Mariner, MerCathode, MerCruiser, Mercury, Mercury...

  • Page 5: Table Of Contents

    Warranty Information Transfer of Warranty United States and Canada..........1 Warranty Registration United States and Canada..........1 Mercury Inflatable Boat Limited Warranty EMEA..........2 General Information Introduction......................5 Safety Alerts....................... 5 Manufacturer’s Capacity Plate ................6 National Legislation.................... 7 General Safety Information................. 7 Specifications, Descriptions, and Features Declaration Of Conformity..................
  • Page 6 Transportation Lifting the Boat Out of the Water..............24 Towing the Boat....................24 Lifting the Boat....................24 Operations and Safety Instructions Lanyard Stop Switch..................25 Preoperating Check List................... 25 Stability and Buoyancy..................26 Hazards......................28 Unaided Reboarding..................29 Maintenance Cleaners......................30 Repairs......................

  • Page 7: Warranty Information

    For Mercury Marine's Privacy Policy, visit https:// www.mercurymarine.com/en/us/privacy‑policy. NOTE: Registration lists must be maintained by Mercury Marine and any dealer of Mercury Marine products sold in the United States, should a safety recall notification under the Federal Boat Safety Act be required.

  • Page 8: Mercury Inflatable Boat Limited Warranty Emea

    WARRANTY INFORMATION You may change your registered address at any time, including at the time of the warranty claim, by calling Mercury Marine or sending a letter or fax with your name, old address, new address, and watercraft identification number/hull identification number to Mercury Marine’s warranty registration department.
  • Page 9 Mercury Marine dealer authorized to service the product. If the purchaser cannot deliver the product to such a dealer, written notice must be given to Mercury Marine's service department. We will then arrange for the inspection and any covered repair.
  • Page 10 WARRANTY INFORMATION DISCLAIMERS AND LIMITATIONS: THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY DISCLAIMED. TO THE EXTENT THAT THEY CANNOT BE DISCLAIMED, THE IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE LIFE OF THE EXPRESS WARRANTY. INCIDENTAL AND CONSEQUENTIAL DAMAGES ARE EXCLUDED FROM COVERAGE UNDER THIS WARRANTY.

  • Page 11: General Information

    GENERAL INFORMATION Introduction This manual has been compiled to help you operate your Quicksilver inflatable boat with safety and pleasure. It contains details of the Quicksilver inflatable boat, assembly, disassembly, equipment and information on its operation and maintenance. Please read it carefully, and familiarize yourself with the Quicksilver inflatable boat, before using it.

  • Page 12: Manufacturer's Capacity Plate

    GENERAL INFORMATION CAUTION Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE Indicates a situation which, if not avoided, could result in engine or major component failure. Manufacturer’s Capacity Plate • The manufacturer's plate is located on the inside of the boat transom. •...

  • Page 13: National Legislation

    GENERAL INFORMATION National Legislation Before you prepare for the water with your Quicksilver inflatable boat, check the local legislation on any restrictions on the specific water you want to use. You might check for sailing restrictions, speed‑restriction, restrictions on the use of outboard engines, restrictions on the airborne sounds, etc.
  • Page 14 GENERAL INFORMATION Watch fallen skiers. When using your boat for waterskiing or similar activities, always keep a fallen or down skier on the operator's side of the boat while returning to assist the skier. The operator should always have the down skier in sight and never back up to the skier or anyone in the water.

  • Page 15: Specifications, Descriptions, And Features

    SPECIFICATIONS, DESCRIPTIONS, AND FEATURES Declaration Of Conformity The Quicksilver® inflatables smaller than 2,50 m, do not come under the aegis of the Recreational Craft Directive 2013/53/EC, and therefore, cannot be certified as complying with it. However, these models are built to meet all specifications required in the above‑mentioned Directive as well as the ISO 6185 standards.

  • Page 16: Quicksilver Inflatable Specifications

    SPECIFICATIONS, DESCRIPTIONS, AND FEATURES Quicksilver Inflatable Specifications Tendy (Light Tender) Model Specification 200 Tendy 200 Tendy 240 Tendy 240 Tendy Slatted Air Floor Slatted Air Floor CE design category Length (cm) Width (cm) Tube diameter (cm) Weight, including 16,8 21,8 18,8 23,8 oars (kg)
  • Page 17 SPECIFICATIONS, DESCRIPTIONS, AND FEATURES Air Deck (Air Deck Floor) Model Specification 250 Air Deck 300 Air Deck 320 Air Deck CE design category ISO standard – 6185‑2 6185‑2 Type – Length (cm) Width (cm) Tube diameter (cm) Weight, including oars (kg) Maximum load (kg) Maximum HP Maximum kW...
  • Page 18 SPECIFICATIONS, DESCRIPTIONS, AND FEATURES Sport (Aluminum Floor) Model Specification 250 Sport (Alu 300 Sport (Alu 320 Sport (Alu floor) floor) floor) CE design category ISO standard – 6185‑2 6185‑2 Type – Length (cm) Width (cm) Tube diameter (cm) Weight, including oars (kg) Maximum load (kg) Maximum HP...
  • Page 19 SPECIFICATIONS, DESCRIPTIONS, AND FEATURES Sport HD (Aluminum Floor) Medium Grey, Red Model Specification 365 Sport HD 420 Sport HD 470 Sport HD (Alu floor) (Alu floor) (Alu floor) CE design category ISO standard 6185‑3 6185‑3 6185‑3 Type Length (cm) Width (cm) Tube diameter (cm) Weight, including oars (kg) Maximum load (kg)
  • Page 20 SPECIFICATIONS, DESCRIPTIONS, AND FEATURES ALU RIB (Aluminum RIB) Dark Grey, White and Cream White Model Specification 320 Alu RIB 350 Alu RIB 380 Alu RIB 420 Alu RIB CE design category ISO standard 6185‑2 6185‑3 6185‑3 6185‑3 Type Length (cm) Width (cm) Tube diameter (cm) Weight, including oars...

  • Page 21: Drawings

    SPECIFICATIONS, DESCRIPTIONS, AND FEATURES Drawings 71772 Outboard engine Engine plate Transom Capacity plate Paddle or oar Oar holder Handgrip Oarlock with glue‑pad Lifeline 10 - Tube/airchamber 11 - Towing D‑ring 12 - Bow handle 13 - Rubbing strake 14 - Interior lifting D‑ring 15 - Airvalve...

  • Page 22: Assembly And Disassembly

    ASSEMBLY AND DISASSEMBLY Valves The Quicksilver valves are specially designed for safe and comfortable use. The valves are designed flat to increase the comfort in the boat and to prevent damage to the boat. Operation of the valve: • Take off outside cap. This is for protection from dirt and damage. •...

  • Page 23: Floorboard

    ASSEMBLY AND DISASSEMBLY HOW TO INFLATE YOUR QUICKSILVER BOAT 1. Start filling the bow and side chambers (see below for correct sequence). 2. Put in enough pressure to allow the boat to spread out, but do not fully inflate the tube. 3.

  • Page 24: Floorboard Installation (Models With Aluminum Floors)

    ASSEMBLY AND DISASSEMBLY Floorboard Installation (Models with Aluminum Floors) Quicksilver inflatable boats that are equipped with an inflatable or a non‑inflatable floorboard must be operated only with these floorboards properly installed. Using the boat without provided floorboard is unsafe, uncomfortable, and might result in damage to the boat.
  • Page 25 ASSEMBLY AND DISASSEMBLY If you fully inflate the air deck, it will push itself underneath the tube and it will stay there tight in its place. In the back of the boat there are two transom tracks fixed against the transom. To fix the floor at the transom, you have to slide the flaps that are attached at the back of the floor through the track.

  • Page 26: Slatted Floor Installation

    ASSEMBLY AND DISASSEMBLY 4. Inflate the air floor to minimum 700 mb, maximum 825 mb. Quicksilver double action pump is recommended for inflation of the air floor. DO NOT use a compressed air source unless it is outfitted with a pressure regulator set to 825 mb.

  • Page 27: Drain Plug (Alu-Rib Models)

    ASSEMBLY AND DISASSEMBLY Drain Plug (Alu‑RIB Models) The Alu‑Rib and Alu‑Rib Ultra Light series are equipped with a drain plug in the transom. The plug must be installed when the boat is exposed to water. The hull cavity plug must be regularly removed to allow collected water to escape from the inner hull (bilge).

  • Page 28: Console Installation (Alu-Rib Models)

    ASSEMBLY AND DISASSEMBLY Position of the outboard engine: The outboard motor must be so installed that in the normal running position, it stands vertically in the water. This means that the "cavitation plate" on the low side or the outboard engine is horizontal in the water if the boat is lying in its normal position.

  • Page 29: Folding The Boat

    ASSEMBLY AND DISASSEMBLY • Make sure the valve stays open (to enable the air to get out during folding). • Push evenly on the whole boat to let as much air out as possible. Folding the Boat • Lay the boat down on the floor. •...

  • Page 30: Transportation

    TRANSPORTATION Lifting the Boat Out of the Water Make sure there are no sharp edges under the boat on the place where you want to lift the boat out of the water. Try to use the handgrips and bow handle for lifting instead of the lifelines and towing D‑rings.

  • Page 31: Operations And Safety Instructions

    OPERATIONS AND SAFETY INSTRUCTIONS Lanyard Stop Switch The purpose of a lanyard stop switch is to stop the engine when the operator moves far enough away from the operator's position to activate the switch. This would occur if the operator accidentally falls overboard or moves within the boat a sufficient distance from the operator's position.

  • Page 32: Stability And Buoyancy

    OPERATIONS AND SAFETY INSTRUCTIONS • Know the waters and area you will be boating; tides, currents, sand bars, rocks, and other hazards. Stability and Buoyancy BILGE WATER IMPORTANT: Bilge water should be kept to a minimum. POSITION OF PERSONS AND LUGGAGE For safe operation it is advised to have people sit in the middle of the boat as much as possible.
  • Page 33 OPERATIONS AND SAFETY INSTRUCTIONS SINGLE OPERATION. When operating under power without passengers, DO NOT SIT on inflation tubes or seat, weight should be as far forward and, in the middle, as possible. Avoid heavy weights near the transom. RAPID ACCELERATION should be avoided to prevent the possibility of backward flip‑overs.

  • Page 34: Hazards

    OPERATIONS AND SAFETY INSTRUCTIONS Hazards AIR CHAMBER FAILURE Your Quicksilver boat is designed with more than one air chamber. In the event one of the air chambers leaks due to a puncture, the boat will at least save 50% of the buoyancy. Shift the weight to the opposite side. Secure the leaking chamber as necessary (by tying‑up or holding‑up) and immediately proceed to the nearest shore or mother ship, whichever is nearest.

  • Page 35: Unaided Reboarding

    OPERATIONS AND SAFETY INSTRUCTIONS Unaided Reboarding In the event you fall out of the boat, use the following reboarding procedure to get back into the boat. • Hold onto the lifeline fixed to the top of the hull side tubes. •...

  • Page 36: Maintenance

    Repairs If you have any damage to your Quicksilver inflatable boat, it is strongly advised to go to your Mercury dealer for the repairs. If the damage is a small puncture you can use the material found in the repair kit.

  • Page 37: Storage

    MAINTENANCE • Cut out a patch large enough to overlap the damaged area by 30 mm from all sides. • Center the overlapping patch over the damaged area and trace with a pencil the outline of the patch. • Clean the surroundings of the puncture and the patch. •...

  • Page 38: Owner Service Assistance

    STOLEN POWER PACKAGE If your power package is stolen, immediately advise the local authorities and Mercury Marine of the model and serial numbers and to whom the recovery is to be reported. This information is maintained in a database at Mercury Marine to aid authorities and dealers in the recovery of stolen power packages.
  • Page 39 RESOLVING A PROBLEM Satisfaction with your Mercury product is important to your dealer and to us. If you ever have a problem, question or concern about your power package, contact your dealer or any authorized Mercury dealership. If you need additional assistance: 1.

  • Page 40: Ordering Literature

    Ordering Literature Before ordering literature, have the following information about your power package available: Model Serial Number Horsepower Year UNITED STATES AND CANADA For additional literature for your Mercury Marine power package, contact your nearest Mercury Marine dealer or contact:...
  • Page 41 (920) 929‑4894 P.O. Box 1939 Fond du Lac, WI 54936-1939 OUTSIDE THE UNITED STATES AND CANADA Contact your nearest Mercury Marine authorized service center to order additional literature that is available for your particular power package. Mercury Marine Submit the following...
