VB3xx
10G Probes
User's Manual

Software version 5.2

Form 8046D
VB3xx 10G Probe User's Manual version 5.2
2016 c Sencore
3200 W. Sencore Drive - Sioux Falls, SD, 57107
Phone: +1.605.978.4600 -
www.sencore.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VB330 and is the answer not in the manual?

Questions and answers

Related Manuals for Sencore VB330

Summary of Contents for Sencore VB330

  • Page 1: Software Version

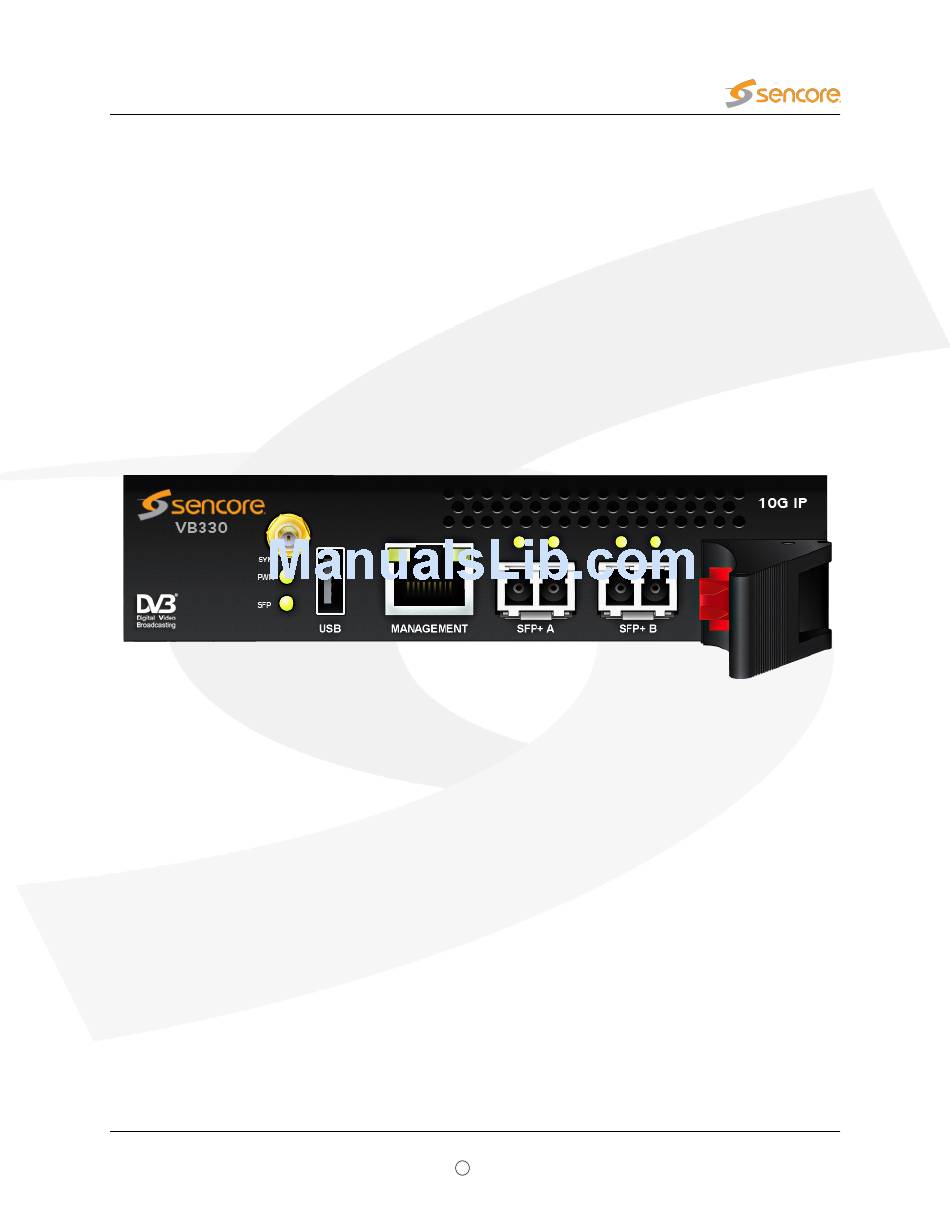

    VB3xx 10G Probes User’s Manual Software version 5.2 Form 8046D VB3xx 10G Probe User’s Manual version 5.2 2016 c Sencore 3200 W. Sencore Drive - Sioux Falls, SD, 57107 Phone: +1.605.978.4600 - www.sencore.com...
  • Page 2 Inquiries should be made directly to those companies. This document may also have links to third-party web pages that are beyond the control of Sencore. The presence of such links does not imply that Sencore endorses or recommends the content on those pages. Sencore acknowledges the use of third-party open source software and licenses in some Sencore products.

  • Page 3: Table Of Contents

    ........1.1.1 VB330 – Overview ....... . . 1.1.2 10G Probe –...
  • Page 4 QUICK SETUP GUIDE Basic Setup ......... . Input Signal Definitions .
  • Page 5 6.7.4 Traffic — Filter setup (AET Option) ......6.7.5 Traffic — Microbitrate (AET Option) ......Ethernet .
  • Page 6 6.12.4 About — Credits ........172 A Appendix: VB330 Versus VBC Alarms B Appendix: Monitoring Practices RTP Monitoring .

  • Page 7: Introduction

    Ethernet streams, suitable for core networks carrying extreme amounts of media signals. The OTT software option is available on the VB330 and enables monitoring of up to 500 adaptive bitrate channels in steps of 5 or 50 (Bulk OTT option) OTT engines depending on licensing.

  • Page 8: Probe - Functionality

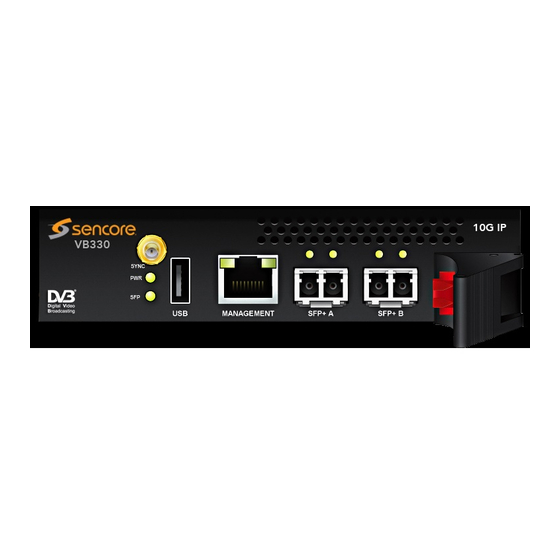

    The VB330 10G Probe is a module housed in a 1 RU chassis. Several VB330 modules may be installed in one chassis, extending the monitoring capacity. 1.1.2 10G Probe – Functionality An IP-based network is fully transparent with respect to signal contents quality, provided that the IP- packets arrive, and provided that they arrive in time.

  • Page 9: How To Use This Manual

    Chapter 6 THE 10G PROBE GRAPHICAL USER INTERFACE describes the graphical user interface (GUI) as seen when pointing a web browser to the 10G Probe’s IP-address. A Appendix: VB330 Versus VBC Alarms describes the alarm handling in the 10G Probe versus the VideoBRIDGE Controller.

  • Page 10: Principle Of Operation

    2 PRINCIPLE OF OPERATION The VB330 module is equipped with two SFP+ optical ports and one Ethernet port. Management of the VB330 is conducted via the Ethernet management port or alternatively in-band via the optical video/data ports. Figure 2.1: The VB330 10G Probe Module – Principle of Operation A simplified diagram of the alarm handling mechanisms of the 10G Probe is shown in figure 2.
  • Page 11 Figure 2.2: Simplified Diagram of the Alarm Handling in the 10G Probe VB3xx 10G Probe User’s Manual version 5.2...

  • Page 12: Safety

    3 SAFETY Read the installation instructions before connecting the chassis unit to the power source. Do not install the chassis unit with power on. The chassis is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security. Blank face plates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis, they provide electromagnetic interference shielding and they direct the flow of cooling air through the chassis.

  • Page 13: Installation And Initial Setup

    4 INSTALLATION AND INITIAL SETUP 4.1 Quick Installation Guide 1. Read the safety instructions, refer to chapter 3 2. Install the unit in a 19 inch rack for rack mount probes, refer to section 4.6 3. Connect the signal cables, refer to section 5.1 4.

  • Page 14: Dual Power Supply

    Figure 4.2: Red LED indicating failure for one of the power supplies 4.2.1 Dual Power Supply The Enhanced Chassis (VB300) is delivered with two 100–240V AC / 75W power supplies, providing power redundancy. In normal operation load is shared between the two power supplies. If mains fall-out occurs for one of the power sources or one of the power supplies fails, the power supply still in operation will take the full load, seamlessly.

  • Page 15: Dual Power Supply

    4.3.1 Dual Power Supply Figure 4.3: VB300-DC rear: two –48V DC connectors located on the the right The Enhanced Chassis (VB300) is delivered with two –48V DC / 75W power supplies, providing power redundancy. Each VB300 unit consists of a 1RU chassis with 2 option slots. In normal operation load is shared between the two power supplies.

  • Page 16: Vb300-Dc Power Supply

    4.3.3 VB300-DC Power Supply The VB300-DC unit is equipped with two –48V DC / 50W power inlet connectors. The power plug is a male 3-PIN D-sub(15) connector. Matching female plugs are supplied with the VB300-DC unit. This plug should be soldered to the power cable in accordance with the drawing in figure 4.6. Figure 4.5: The VB200-DC Power connector on the chassis Figure 4.6: Soldering the Female 3-PIN D-sub(15) Connector to the Power Cable 4.4 Serial Number Location...

  • Page 17: The Hardware Modules And Connectors

    SFP+ B: SFP+ optical interface – main data input. The VB330 module‘s SFP+ B port is shipped with an SR (short range) SFP+ module. This should be replaced if the system requires a different SFP+ module, e.g. for use with single mode fibre. Note that using other SFP+ modules than the type shipped may imply that special safety precautions must be taken, like using protective glasses.

  • Page 18: Installing The Unit In A Rack

    4.6 Installing the Unit in a Rack The following equipment is needed for hardware installation of the unit: 4 rack screws A screw driver for the rack screws For rear mounting: a size 2 Phillips screwdriver for rack ear screws 4.6.1 Default Installation —...

  • Page 19: Powering Up The Unit

    PC’s IP-address to 10.0.20.100 and the netmask to 255.255.0.0. When the IP-address of the PC has been set to match the VB330 factory setting, the permanent network settings can be configured through the VB330 web browser interface.

  • Page 20: Initial Configuration Via Serial Console Emulated Over Usb

    4.8.2 Initial Configuration Via Serial Console Emulated Over USB If the 10G Probe for some reason cannot be reached through Ethernet communication, the initial set-up may be performed via serial console emulated over USB. This is done by: 1. Installing a driver for the USB communication, if not already supported by the operating system 2.
  • Page 21 Baud rate: 9600 Data bits: 8 Parity: None Stop bits: 1 Flow control: None Press ENTER a few times to bring up the login prompt. 3. Logging in Log in using the user name admin and the password elvis. 4. Setting initial network parameters A simple text based menu system should now be displayed: Menu: /ewe/probe/core/setup/ethernet/ ==============================================================================...

  • Page 22: Verifying Correct Initial Setup Of The 10G Probe

    The 10G Probe supports both in-band management (i.e. using eth2 for both data/video and management) and separate management (i.e. using eth1 for management). In any case make sure that the subnets configured for eth2 and eth1 do not overlap – otherwise the probe will not work properly. Note that if IP-addresses for eth2 and eth1 are configured so that the subnets overlap, the IP-address of one of the ports will be automatically set to 1.1.1.1 by the 10G Probe.

  • Page 23: Initial Setup Troubleshooting

    4.8.4 Initial Setup Troubleshooting If there are problems bringing up the probe web-based management interface, verify the following: Verify that the laptop and the probe are configured on the same subnet and that they have different addresses. The network settings of the probe can be verified through RS232/USB as described earlier Make sure that the IP-address of the gateway and the network interface are not the same Verify that the appropriate Ethernet link indicators of the PC and probe are lit...

  • Page 24: Quick Setup Guide

    5 QUICK SETUP GUIDE This quick setup guide is intended to provide a step-by-step explanation of how to setup a probe once the initial setup has been performed (as described in chapter 4). More detailed instructions are found in chapter 6 of this manual. The Return Data Path and Full Service Monitoring features are not covered by this quick setup guide.

  • Page 25: Ott Input (Ott Engine Option Only)

    5.2.2 OTT Input (OTT Engine Option Only) 1. Define the OTT channel manifest URLs and channel names in the OTT — Channels view. Leave the Threshold and VBC threshold settings at default values for now. Remember to tick the Enable box in the dialog box.
  • Page 26 values create one or more new templates in the OTT — Thresholds view and assign them to OTT channels in the OTT — Channels — Edit view. ETR 290 By default the streams configured in the probe will be set up to use the ETR 290 threshold named Default. This has the most important alarms enabled but have been adjusted to match real world systems and only alarm on more severe problems.

  • Page 27: The 10G Probe Graphical User Interface

    6 THE 10G PROBE GRAPHICAL USER INTERFACE The 10G Probe web interface is reached by pointing a web browser towards the IP-address of the probe as shown in the screen shot above. The following web browsers are tested: Internet Explorer 9.0 or higher Firefox VB3xx 10G Probe User’s Manual version 5.2...

  • Page 28: Main

    Chrome and Opera are also known to function. Newer versions of Internet Explorer should have compatibility view enabled. For IE11 this can be enabled in the menu Tools/Compatibility View settings. Note that different web browsers behave differently with respect to memory leaking, and if the probe GUI should be available at all times the browser should be selected carefully.
  • Page 29 The intention of this page, together with the alarm list, is to provide enough information for the operator to immediately see if there is anything seriously wrong with one or more input streams. The following parameters are shown: NTP/timesync (Bulb): The NTP/timesync bulb indicates whether the probe clock is locked to an external time reference signal.
  • Page 30 Resources CPU level: The CPU level indicates the workload of the probe, on a scale from 1 to 10 of total capacity. Free mem: The available free probe memory Free disk: The available free probe disk space Traffic RX data: The total bitrate of received data traffic Monitoring: The total bitrate of multicasts and unicasts monitored (analyzed) by the probe...
  • Page 31 CC skips: The number of currently active Ethernet ‘CC skips’ alarms MLR>=thresh: The number of currently active Ethernet MLR alarms, i.e. the total number of ‘MLR>= warning-threshold’ and ‘MLR>= alarm-threshold’ alarms IAT>=thresh: The number of currently active Ethernet IAT alarms, i.e. the total number of ‘IAT>= warning-threshold’...

  • Page 32: Main - Cpu Usage

    RR stream: Round-robin stream; the name of the transport stream currently being analyzed by a particular ETR monitoring engine. For Ethernet this is the multicast/unicast name, for ASI and demodulators this is the stream name defined by the operator. If the monitoring engine is locked to one stream by the user, this field will read LOCKED: <stream name>.
  • Page 33 If the Small button is clicked the Thumbs overview view will display service names and thumbs only, allowing more thumbnails to be displayed in a view. To display the stream address and name (as defined in the Multicasts — Streams and OTT — Channels views) click the Stream info button. The Thumbs Details pop-up view is accessed by clicking a thumb in the Thumb overview view.

  • Page 34: Main - Eii Graphing

    6.1.4 Main — Eii graphing Eii is short for External Integration Interface and constitutes a set of XML files accessible through the probe web server interface for machine access to measurement data. Portions of the Eii interface are available in this view for simple trend graphing over arbitrary long time by the web browser.

  • Page 35: Alarms

    Refresh (seconds) selects how often samples are read and plotted on the graph. See separate Eii documentation on the customer area of the BRIDGE Technologies website for more details. 6.2 Alarms Figure 6.1: Alarm handling in the 10G Probe. Figure 6.1 shows an overview of the total alarm handling of a 10G Probe. It is useful to obtain an understanding of the alarm processing of the 10G Probe –...

  • Page 36: Alarms - All Alarms

    These alarms will also be sent as SNMP traps to support third party management systems. Refer to Appendix: VB330 Versus VBC Alarms for a description of alarm handling in the VideoBRIDGE Controller.

  • Page 37: Alarms - Flash Alarms (Flash Option)

    The Export button enables export of the corresponding alarm list as an XML-file. This file will open in a new window. 6.2.2 Alarms — Flash Alarms (FLASH option) The FLASH option enables the Flash alarms TAB. This alarm list contains the last 20,000 alarms and keeps them in non-volatile memory so that they survive reboots and power-outages.
  • Page 38 VideoBRIDGE Controller. Refer to Appendix: VB330 Versus VBC Alarms for a description of the probe versus VBC alarm handling. The following alarm severity levels may be selected:...
  • Page 39 MLR >= The Media Loss Rate exceeds the warning-threshold Default: Disabled, severity warn-thresh: Warning TTL changed: The Time-To-Live field is changing Default: Enabled, severity Error TOS changed: The Type-Of-Service field is changing Default: Enabled, severity Error Multiple mcast There are multiple multicast sources Default: Enabled, severity sources: Error...
  • Page 40 PCR Accuracy: Program Clock Reference accuracy error (PCR jitter) Default: Enabled, severity Major PTS: Presentation Time Stamp error Default: Enabled, severity Major CAT: Conditional Access Table error Default: Enabled, severity Major NIT: Network Information Table error Default: Enabled, severity Major SI Rep Rate: Wrong repetition rate for SI tables Default: Enabled, severity...
  • Page 41 PID max. bitr. PID maximum bitrate exceeds threshold Default: Enabled, severity Major PID checks: PID check error Default: Enabled, severity Major Service min. Service minimum bitrate below threshold Default: Enabled, severity bitr. Major Service max. Service maximum bitrate exceeds threshold Default: Enabled, severity bitr.
  • Page 42 Download The download duration time exceeds the OTT bitrate Default: Disabled, severity bitrate low: threshold. The bitrate threshold is part of the OTT Warning threshold template defined in the OTT — Thresh- olds view. A threshold template is assigned to a stream in the OTT —...

  • Page 43: Ott (Option)

    6.3 OTT (Option) 6.3.1 OTT — Active testing The OTT option enables monitoring of up to 500 OTT streams. Up to 50 OTT engines (depends on license) can operate in parallel, and each engine licensed allows 10 streams to be analyzed. Each engine analyses streams in series and can be configured with any number of channels up to the maximum allowed by the license.

  • Page 44: Ott - Details

    Thumb: If the selected stream is of type HLS or HDS a thumbnail of the content will be decoded and updated. Thumbnail decoding is a process asynchronous of the channel analysis and therefor should not be expected to be updated at the same time.

  • Page 45: Ott - Details - Profiles

    6.3.2.1 OTT — Details — Profiles The Profiles view in this pop-up consists of two tables detailed below: The following information relevant for the overall OTT channel is shown in the first part of the Details Profiles pop-up window: Channel: The channel name defined by the user and linked to a URL in the OTT —...
  • Page 46 Stream type: Channel and profile information is resolved from the manifest files. At channel level the OTT format is displayed (Smoothstream, HLS, Adobe HDS or MPEG DASH). In the same view below the table for the overall channel a more detailed view per channel profile is shown with the following information in it: Profile: The name of the OTT profile as flagged in the manifest files...

  • Page 47: Ott - Details - Manifest

    6.3.2.2 OTT — Details — Manifest The Manifest view shows health information on the overall manifest file for the channel as well as for the manifest files for the individual profiles. Active testing - Details - Manifest: Channel: The channel name defined by the user and linked to a URL in the OTT — Setup view.
  • Page 48 Profile info: The type of stream is shown here. Apple HLS, Microsoft Smoothstream, Adobe HDS, or MPEG DASH. Manifest size: The size in bytes of the main/top manifest file for the overall channel. Manifest file: Clickable URL for displaying the manifest file as text for this particular profile. Manifest URL: A clickable link to the current main/top manifest file for the overall channel.

  • Page 49: Ott - Details - Alarms

    6.3.2.3 OTT — Details — Alarms The Active testing Details Alarms view gives an at-a-glance overview of any active OTT alarms for the selected channel. An alarm log for the selected channel is also provided here. In the right corner of the pop-up window is a free text search field used to narrow down the entries in the alarm log.

  • Page 50: Ott - Details - Thumbnails

    6.3.2.4 OTT — Details — Thumbnails The Thumbnails tab will provide information about the current thumbnails in the stream. The quality of the content in the selected profile can be viewed in the thumbnail section, and the user may alter the selected profile in the drop down list. The section on the right hand side provides specific decoder and chunk information.

  • Page 51: Ott - Details - Alignment

    Chunk Information Engine ID: The OTT engine monitoring the selected stream. Channel ID: The id of selected channel corresponding to the list of streams defined by the user. Profile ID: The ID of the selected profile. Bitrate: Bitrate rate of the a chunk. Streamtype: The type of the stream detected;...

  • Page 52: Ott - Channels

    6.3.3 OTT — Channels The OTT Channel Configuration list shows OTT channels configured by the user. To add a channel to the list click the Add new channel button. This will open the Edit channel pop-up view, allowing the user to define channel parameters.
  • Page 53 Threshold: The OTT threshold that should be assigned to the OTT channel. OTT thresh- olds that have been defined in the OTT — Thresholds view are available for selection from the drop-down menu. VBC thresholds: The alarm threshold template used to configure when alarms are generated towards the VBC server.

  • Page 54: Ott - Settings

    6.3.4 OTT — Settings In the settings section the Round time of every OTT engine may be set to a number of seconds (Default: 15 seconds). Note: The round time may not be set to any value less than 1 second. Press Apply to confirm changes made.

  • Page 55: Ott - Thresholds

    6.3.5 OTT — Thresholds The OTT Threshold presets list shows OTT threshold templates configured by the user. To add a threshold template to the list click the Add new threshold button. This will open the Edit threshold pop-up view, allowing the user to define threshold parameters. A list threshold template entry can be selected by clicking the threshold template;...
  • Page 56 Bitrate warn: The maximum allowed difference between profile bitrate and download bitrate (%). If the difference exceeds the threshold value a bitrate error warning will be raised. Min. actual bitrate: The minimum allowed bitrate when measured actual bitrate is compared to profile bitrate (%).

  • Page 57: Multicasts

    6.4 Multicasts 6.4.1 Multicasts — Parameters The Multicasts — Parameters view displays detailed information about each stream. The user selects which group of measurements should be displayed. Selections are IP parameters, TS parameters, Ethernet parameters, RTP and FEC parameters, Userdefined parameters and Statistical parameters.
  • Page 58 Peak and aggregate measurements are cleared when the Clear counters or Clear counters all pages button is clicked. Clicking the Export button will allow export of the measurement data as an XML file that is opened in a new window. Click the Trim ch-list button to unjoin streams with current status ‘No signal’, thereby removing them from the list.
  • Page 59 Joined multicasts Click the information icon to access the Detailed Monitoring pop-up view. Thumb: A thumbnail is displayed for each stream. Click the small thumbnail to view a larger image that is updated more frequently. Name: The stream name specified by the user in the Edit Multicast view Signal: Time since last signal loss Page:...
  • Page 60 Dst address: Multicast/unicast destination address : port TOS: Type-Of-Service (also called Differentiated Services Field) TTL: Time-To-Live VLAN ID: Native VLAN ID of this stream Src address: Multicast/unicast source address : port Joined src: The source address of the originally joined multicast. IAT avg: Average Inter-Arrival Time.
  • Page 61 Min hole sep: Minimum number of RTP packets separating any holes. The sequence 1,2,3,10,11,12,15 gives a min hole sep of 3. Num holes: Number of packet loss sequences. The sequence 1,2,3,10,11,12,15 gives a num holes of 2. FEC mode: The CoP3 FEC mode FEC drops: Number of RTP packet drops in the main stream that the FEC could not correct C-FEC drops:...
  • Page 62 Shown while the thumbnail engine is trying to decode a thumbnail picture and more precise status information has not yet been obtained. This icon is typically displayed after probe reboot or if new streams have recently been joined. Shown if the service does not carry a video PID — which is the case for radio services. The stream contains no service, as signaled in PSI/SI.
  • Page 63 Detailed Monitoring The Detailed Monitoring pop-up is activated by clicking a stream line in the monitoring list. The probe is continuously gathering detailed information for the selected multicast. The probe will continue updating the detailed information for the selected multicast until another is selected. Clicking the Clear button will clear all information about the selected stream, including PSI/SI analysis data.
  • Page 64 In the Detailed Monitoring — IAT view the Inter Arrival Time histogram shows the accumulated number of IAT measurements within each presented interval. Vertical green lines indicate the maximum and minimum IAT values. By clicking the IAT range buttons it is possible to change the zooming of the graph. If the IAT auto button is pressed the diagram will auto-scale to always include the minimum and maximum IAT readings.
  • Page 65 rate compared to non-selected streams. Service audio level is indicated by one audio level bar per audio component. Clicking the Close button will close the Thumb View. Audio fields PID: The audio PID for which the associated parameters apply Language: The audio language, as derived from PSI/SI Average: The average audio level in dB, measured over a period of approximately 0.5...
  • Page 66 Video PID (PID Number) PID: The video PID of the selected service Bitrate: The video PID bitrate of the selected service Status: The status of the video PID as reported by the decoding engine PES sync: The latest PES sync state PES length indica- If signalled in the PES packet header the PES packet length is displayed tor:...

  • Page 67: Multicasts - Parameters - Fields

    6.4.2 Multicasts — Parameters — Fields The Multicasts — Parameters — Fields view enables selection of the parameters to be displayed in the Multicasts — Parameters view. Note that thumbnails must also be enabled in the Setup — Params view for thumbnail availability. 6.4.3 Multicasts —...
  • Page 68 Throughout this view the bulb colors indicate the most severe active alarm. They may be green (no alarm), yellow (warning), orange (error) or red (major). The bulb color is based on user defined alarm severity settings for each alarm. A grey bulb indicates that monitoring is disabled. The following Ethernet parameters are shown: Eth streams with Shows the number of streams that are presently in an alarm state.

  • Page 69: Multicasts - History

    6.4.4 Multicasts — History The probe keeps statistical Ethernet information for the last 4 days for visual inspection in the history timeline view. Each bar in the histogram corresponds to a number of events that occurred within a certain time interval. The interval that each bar represents depends on the scale, from 1 minute (when 90 min is selected) to 1 hour (when 4 days is selected).

  • Page 70: Multicasts - Join

    RTPooo: Accumulated number of times a packet has been found to be out of order in the interval represented by the bar. This parameter corresponds to the sum of RTP ooo reported by all streams. Tot bitr: Bitrate sensed on the eth0 interface Mon bitr: Bitrate on eth0 corresponding to joined multicasts CRC errs:...

  • Page 71: Multicasts - Streams

    6.4.6 Multicasts — Streams In this view the operator can define multicasts available to the probe and associate a name with each multicast address. This name will be used by the probe when referring to the multicast. If no name has been defined the probe will use the multicast-address:port notation.
  • Page 72 Name: A name should be assigned to each unicast/multicast. The name will be used throughout the probe’s user interface when referring to this stream. It may also be used by an external management system like the Video- BRIDGE Controller. Address: The IP-address of the unicast or multicast.
  • Page 73 SSM source 4: Additional SSM source address SSM source 5: Additional SSM source address ETR (ETR290 Option) Enable ETR: ETR monitoring of a stream will not take place unless it is enabled by this setting. This parameter is only relevant if the probe is ETR enabled. Select ETR engine: If the probe is licensed for several Ethernet ETR engines the user may select which engine should be used to analyze the stream.
  • Page 74 T2MI (T2MI Option) Container For an T2MI inner stream the container stream (outer stream) must be specified. stream: Select the container stream from the drop-down menu. For streams other than T2MI inner streams (none) should be selected. Data PID: The container stream PID carrying the inner stream PLP ID: The PLP ID for the inner stream.

  • Page 75: Multicasts - Ethernet Thresh

    6.4.7 Multicasts — Ethernet thresh. Thresholds are used to determine when to actually raise an alarm. If the defined threshold levels are exceeded for a parameter, an alarm will be raised. Ethernet thresholds are also used to scale some graphs like the MediaWindow graphs. The alarm level of each of these alarms is set in the Alarms — Alarm setup view.
  • Page 76 The Ethernet parameter thresholds are used for generating Ethernet probe alarms as well as for calculating error-seconds. Error seconds and ETH probe alarms are issued whenever measurements exceed the parameter thresholds. Ethernet parameter thresholds Name: The name of the Ethernet threshold template Refs: The number of streams associated with this Ethernet threshold template IAT:MLR error:...

  • Page 77: Mw (Media Window)

    PCR packets do not carry a valid CC field). The patented Sencore VideoBRIDGE Media Window presents both jitter and packet loss measurements in one graph, with jitter (IAT) values growing upwards (+ve Y) and packet loss (MLR) growing downwards (-ve Y).
  • Page 78 Red color is used to indicate that within the period represented by the bar there has been one or more occurrences of no-signal. Orange is used to indicate error while yellow indicates warning. The error and warning thresholds are allocated to each multicast in the Multicasts — Streams view. The user determines whether only multicasts associated with the currently selected page should be displayed (by clicking the Cur page button), or if all joined multicasts should be presented in one list (by clicking the All button).
  • Page 79 media windows for several streams without starting several browser sessions. When in the pop-up Media Window by pressing some where in the graph, the field will get zoomed in. This hi-resolution version of the Media Window reveals more details than the compressed version. There are 3 times more samples along the X-axis, and the graph indicates visually the error and warning thresholds.

  • Page 80: Rdp (Return Data Path)

    By clicking the IAT:RTP button the graph displays the packet jitter as a function of time. The composite graphs displays the RTP packet loss below the X-axis. If the monitored stream is not RTP encapsulated, IAT will be represented by grey color and there will never be any indication of packet loss in the graph. 6.6 RDP (Return Data Path) The Return Data Path feature enables forwarding of streams from any probe interface to another destination IP-address.

  • Page 81: Rdp - Control

    6.6.1 RDP — Control Click the icons in the Control tab to activate or de-activate an RDP engine. There are different icons for controlling RDP engines depending on whether they are configured to relay or record. The state of each RDP engine is restored after a reboot.

  • Page 82: Rdp - Setup

    6.6.2 RDP — Setup Each of the RDP engines is configured separately. First the Mode is selected. Depending on the mode either the Relay or Record settings needs to be configured. The Input selects the stream or interface to relay or record. These are the settings: Mode and Input Mode:...
  • Page 83 RDP Ethernet IPv4-address: The unicast address or multicast address to forward to. Multicast ad- dresses are in the range 224.0.0.0 – 239.255.255.255. Port: The port to forward to. The combination of IP-address and port fully describes the destination address. TTL: The Time-To-Live flagging of the relayed signal.

  • Page 84: Traffic

    6.7 Traffic 6.7.1 Traffic — Protocols (requires AET-OPT) The Traffic Protocols view allows monitoring of IP traffic on the data/video port in terms of the protocols used. Clicking the Clear statistics button will reset displayed values. The following measurements are presented: Protocol (rx): The protocol for which the following measurements apply Cur bitrate:...

  • Page 85: Traffic - Detect

    VLAN tagged frames The percentage of Ethernet frames that are VLAN tagged (%): IP-fragmented frames The percentage of IP packets that are fragmented, meaning they span (%): more than one Ethernet frame UDP unicasts: The number of detected UDP unicasts UDP unicasts: The total bitrate of detected UDP unicasts UDP multicasts:...
  • Page 86 multicasts already joined by the probe. Note that generally the upstream switch or router will not output streams that are not joined by downstream equipment, i.e. usually only joined streams will be available for monitoring. If the unicast/multicast destination address is known to the probe (i.e. listed in the Multicasts — Streams menu) the stream’s Name is looked up, otherwise a generic name is used.

  • Page 87: Traffic - Filter Statistics (Aet Option)

    6.7.3 Traffic — Filter statistics (AET Option) The Traffic — Filter statistics view makes it possible to view statistics for different stream types. Stream types are defined by the user in the Traffic — Filter setup view. Statistics is displayed for a time period selected by clicking one of the time duration buttons. Filter statistics: Filter: The filter name, as defined by the user in the Traffic —...
  • Page 88 Avg str duration: The stream duration is calculated for each stream by identifying the stream’s average stream alive counter inside the selected time period, then multiply by 2. The stream alive counter is the number of seconds the stream has existed. This gives accurate results for streams that begin within the selected time period, but may give up to twice the real bitrate for streams that begin (long) before the selected period.
  • Page 89 Clicking a graph icon displays the corresponding detailed graph for the selected filter. Clicking the trend graphs itself will bring up the same detailed graph but will plot all the filters so that they can easily be compared. The detailed trending graph above displays MLR errors for all filters. VB3xx 10G Probe User’s Manual version 5.2...

  • Page 90: Traffic - Filter Setup (Aet Option)

    6.7.4 Traffic — Filter setup (AET Option) The Traffic — Filter setup view makes it possible to define stream filter requirements affecting the Traffic — Detect and Traffic — Filter statistics views. Ten filters can be defined and enabled by the user.
  • Page 91 VB3xx 10G Probe User’s Manual version 5.2...

  • Page 92: Traffic - Microbitrate (Aet Option)

    6.7.5 Traffic — Microbitrate (AET Option) The Microbitrate feature allows sampling of bitrate at various sampling intervals. When enabling this feature, each Ethernet frame is timestamped in hardware on probe ingress. This timestamp is used to calculate exact bitrates at various sampling intervals. The Interval is the sampling interval of each bitrate calculation.
  • Page 93 For multicast type traffic the traffic pattern will look more like the graph above. Here the bitrate is much more steady even for short intervals. The network never experiences near line-speed bursting since each stream is bitrate controlled by the sender. VB3xx 10G Probe User’s Manual version 5.2...

  • Page 94: Ethernet

    6.8 Ethernet 6.8.1 Ethernet — IGMP The IGMP view shows all IGMP (version 2 or 3) messages detected by the probe. This includes IGMP query messages sent by routers, IGMP reply messages sent by the probe itself and IGMP reply messages sent by other probes and devices on the same subnet.

  • Page 95: Ethernet - Fsm - Monitor

    Up to 10 services may be defined and each service will be checked at regular intervals. Any errors will be logged. An error is defined as no reply within 5 seconds for the Ping option or no, or incorrect, reply within 5 seconds for the HTTP option.

  • Page 96: Ethernet - Fsm - Setup

    The Clear all button will clear accumulated data for all enabled FSM services, but active alarms will not be removed. Clicking the Traceroute button will open a new window, allowing the user to trace the network route to a specified IP address. 6.8.2.2 Ethernet —...
  • Page 97 These fields are common for both the ping and the HTTP-Get protocols: Enable: Enable by checking toggle button. Name: User-defined name of service Protocol: Select between ping and HTTP. Device: Ethernet interface to use for this service. Probe cycle: Time interval in seconds to wait between each activation. A value below 30 is not recommended.

  • Page 98: Ethernet - Fsm - Syslog

    6.8.2.3 Ethernet — FSM — Syslog The VB330 has a built-in syslog server which captures all incoming messages (UDP, port 514). Messages are displayed in a pageable grid with the following columns: Facility, Severity, Timestamp, Hostname, Agent and Message. Currently displayed page can be exported as an XML-document.

  • Page 99: Ethernet - Pcap

    6.8.3 Ethernet — PCAP The VB330 can make PCAP recordings on the data interface of up to approximately 1.5GB based on simple user configurable filters. The PCAP format supports microsecond timing accuracy. Incoming traffic is recorded if it matches one or more of the enabled filters while outgoing traffic is always recorded.

  • Page 100: Etr 290 (Option)

    Start recording: Click to start a new recording. This will clear the current rec.pcap file. Stop recording: Click to stop the current recording. Sort recorded frames At high bitrates, some Ethernet frames may be recorded out of order as on packet time: a result of the multi-core architecture.

  • Page 101: Etr 290 - Etr Overview

    6.9.1 ETR 290 — ETR Overview The ETR 290 — ETR Overview view will show ETR 290 status for ETR 290 monitored streams. ETR 290 monitoring may be enabled for Ethernet streams in the Multicasts — Streams — Edit view. The streams currently being analyzed are highlighted and a circular progress icon shows the monitoring progress.

  • Page 102: Etr 290 - Etr Details

    superimposed on the lock icon. To re-activate the round-robin cycling the lock icon should be clicked. Note that locking the ETR 290 processing to one stream will affect alarm handling and all ETR 290 views. Active alarms for streams that are not currently being analyzed will freeze (remain active) until the processing lock is deselected and ETR 290 analysis eventually shows that the error state is cleared.
  • Page 103 If the Clear status button is clicked the error counts are reset and the ETR 290 analysis restarts. The details of the individual ETR 290 measurements are described in a separate document called Sencore VideoBRIDGE ETR 290 Details — Extended ETSI TR 101 290 Testing. Clicking the Show alarm graph button opens the Alarm graph pop-up view.

  • Page 104: Etr 290 - Pids

    with the alarm severity if an alarm has occurred. Refer to section 6.2.3 for a description of the alarm color representation. Periods of time when the stream has not been ETR monitored due to round-robin operation are represented by grey. By using the arrow buttons it is possible to view alarm occurrences up to 24 hours back in time even if the highest graph time resolution is selected.
  • Page 105 The name of the current stream is displayed in addition to the two round-robin indicator icons when relevant: the time cycle icon and the lock icon. By clicking the lock icon the round-robin cycling is stopped or resumed. A DVB or ATSC icon indicates the analysis mode. The analysis mode is defined as part of the ETR thresholds.

  • Page 106: Etr 290 - Services

    References: All the references for this PID in the PSI/SI/PSIP tables. This will show the reference type and the service that refers the PID (if applicable). The service can be clicked to show the detailed service information. 6.9.4 ETR 290 — Services The ETR290 —...
  • Page 107 Services top node Service: Service name and service ID PID: Service component PID value Type: Service and component encoding format Bitrate: Individual current bitrate of services and components When clicking a service, details about the service and service components will be displayed. If a PID is scrambled this is indicated in the service tree by the color green or blue (for even and odd scrambling respectively).
  • Page 108 Service node Service name: Name of the highlighted service, as signalled in SDT or VCT Service ID: Service ID number Service type: Service type as signalled in SDT. Service provider The name of the service provider as signalled in SDT. Not applicable for ATSC name: streams.
  • Page 109 Service component node Current bitrate: The current component bitrate Minimum bitrate: The minimum component bitrate detected during the monitoring period Maximum bitrate: The maximum component bitrate detected during the monitoring period Carries PCR: An indication of whether the PID carries PCR or not. The value may be ‘Yes’...

  • Page 110: Etr 290 - Bitrates

    6.9.5 ETR 290 — Bitrates This view shows a graphical representation of service and PID bitrates. The current bitrate is shown as the length of the light blue bar whereas the dark blue bar represents bitrate variation, spanning from minimum to maximum measured bitrate. The name of the current stream is displayed in addition to the two round-robin indicator icons when relevant: the time cycle icon and the lock icon.
  • Page 111 This view lists the PSI and SI or ATSC tables and table contents of the currently active stream of the selected input. The name of the current stream is displayed in addition to the two round-robin indicator icons when relevant: the time cycle icon and the lock icon. By clicking the lock icon the round-robin cycling is stopped or resumed.
  • Page 112 The selected table entry is highlighted in the table dump. Note that values shown in the table list may not correspond directly to the highlighted hex dump byte(s), because some of the table entries do not add up to whole bytes. By hovering the cursor over the items in the tree a tooltip is displayed showing the start position of the data in the hexadecimal dump and the length of data.

  • Page 113: Etr 290 - Pcr

    6.9.7 ETR 290 — PCR The PCR jitter histogram displays PCR jitter as measured by the probe. A list of detected PCR PIDs in the selected stream is shown together with their current and maximum PCR jitter values. A PCR PID is selected for histogram presentation by clicking the associated table entry.
  • Page 114 Please note PCR analysis will be disabled if neither PCR-AC, PCR-OJ and the PCR Accuracy and PCR Jitter checks are enabled in the ETR thresholds. So to use the ETR 290 — PCR functionality this needs to be enabled. The name of the current stream is displayed in addition to the two round-robin indicator icons when relevant: the time cycle icon and the lock icon.

  • Page 115: Etr 290 - T2Mi (Option)

    6.9.8 ETR 290 — T2MI (Option) T2MI monitoring is a licensing option available for transport streams over ASI and Ethernet. T2Mi is enabled on a per stream basis, most of the information is found in this GUI extracted from the L1 current packets in the T2MI streams.
  • Page 116 Errors whole The number of CRC errors calculated over the whole T2MI packet since packet: the monitoring of the stream started. L1 information: T2 version: The version of the T2 spec used. Up to version 1.3.1 is supported including T2 lite.
  • Page 117 Frequencies: The list of frequencies used to transmit the signal. Normally only one frequency will be used. Current The index of the frequency currently being used for the transmission. dex: Start RF idx: The starting RF index. Frame idx: The frame index. Sub slice inter- The interval between sub slices.
  • Page 118 Detailed PLP information: PLP: The ID of the signalled PLP. Type: The signaled type of the PLP. Data PLP Type 1 is the most common, some signals can have a common PLP as well as well as other PLP types. Payload: Payload type of this PLP.

  • Page 119: Etr 290 - Scte 35 (Option)

    Rotation: Specifies if IQ rotation is enabled for this PLP. FEC type: Specifies the FEC coding type for this PLP. PLP num blocks The maximum number of blocks which can be used by this PLP. max: Frame interval: The frame interval for this PLP. Time IL length: The length of the time interleaver.
  • Page 120 transmission to insert local content. It can be used to allow insertion of local advertising at certain points in time or to allow the local operator to insert their own programs such as local news transmission. SCTE 35 requires a license for the probe and also an ETR 290 engine to connect it to. The SCTE 35 option enables monitoring of SCTE 35 events of all streams captured by the ETR engines.

  • Page 121: Etr 290 - Status

    When pressing the information button for a specific event a new window will pop-up with detailed information about the event. The pop-up will show a log of the SCTE 35 events signaled for the specified transport stream. Splice NULL messages are not logged. 6.9.10 ETR 290 —...

  • Page 122: Etr 290 - Compare

    6.9.11 ETR 290 — Compare The Compare view is based on analysis performed by the ETSI TR 101 290 engine and will only be visible if the probe is licensed with the ETR 290 option. To get this functionality go to ETR 290 — Compare. The Compare view allows comparison of services or transport streams across different probe interfaces.
  • Page 123 One or more services or transport streams are selected by clicking and later Ctrl + clicking items from the list. Clicking the Compare selected button will launch a condensed overview page that allows status parameters for services or streams to be viewed side by side. Key parameters are presented in one column for each service/stream, and it is easy to recognize differences in signal contents or alarm status.
  • Page 124 Max. eff. bitr: The maximum effective bitrate (null packets removed) measured for the selected stream or the stream containing the selected service Min. tot. bitr: The minimum total bitrate (including null packets) measured for the selected stream or the stream containing the selected service Max.
  • Page 125 alarms these alarms may be viewed by expanding the service tree. If relevant the PIDs affected by alarms are also displayed. Note that only alarms detected during the last monitoring period are displayed. If a service is selected for comparison this subview simply shows the selected service and any active alarms affecting the service.
  • Page 126 The Alarm graph subview shows similar alarm graphs as the ETR — ETR details — Alarm graph popup view. Please refer to the ETR 290 — ETR Details section of this user’s manual for a comprehensive description of this view. ETR Details The ETR details subview shows the same alarm overview as the ETR —...

  • Page 127: Etr 290 - Etr Thr

    6.9.12 ETR 290 — ETR thr. The ETR thresholds make it possible to define detailed conditions for ETR 290 alarm triggering on a per-stream basis. There are seven predefined ETR threshold templates that are write-protected and cannot be edited by the operator: Default ETSI TR 101 290 ATSC Default...
  • Page 128 stream currently being monitored, the new threshold for that stream will default to the predefined Default threshold template. It is possible to perform multi-editing of existing threshold templates by selecting several threshold tem- plates (using the regular Ctrl + click or Shift + click functionality) and clicking Edit selected. Parameters that differ between the threshold templates will be represented by an asterisk in the Edit ETR threshold view.
  • Page 129 Tuning duration (s): The time (in seconds) the probe will stay tuned to a frequency/multicast during the round-robin loop.For setting the tuning duration, use the follow- ing expression:max_table_rep*2+10 Use the maximum table repetition, multiply by 2 and then add 10 seconds. E.g. with TDT table repetition set to 30 seconds, use 30*2+10=70 seconds tuning duration.
  • Page 130 PAT - Allowed Transport When this field is left blank all TS IDs are considered valid. If one Stream IDs: or more TS IDs are specified (separated by commas or as a range) only these IDs are considered valid, and any other TS ID will trigger an alarm.
  • Page 131 Note that if both PCR checks are disabled in an ETR thresholds template the PCR for the associated streams will not be processed and the ETR 290 — PCR view will not display data for these streams. ETR Thresholds - Priority 3: NIT: Enable or disable alarming of Network Information Table errors.
  • Page 132 SDT - Minimum gap interval The minimum allowed section gap interval for the SDT table. Default: (ms): 25 ms SDT - Verify SDT against If enabled an alarm will be generated if a service found in the PAT is PAT: not listed in the SDT.
  • Page 133 Maximum interval PIM (ms): The maximum allowed section repetition interval for the PIM table. Default: 500ms Require PNM: Require presence of the Program Name Message table. Maximum interval PNM (ms): The maximum allowed section repetition interval for the PNM table. Default: 1000ms RRT: Enable or disable alarming of Rating Region Table errors.
  • Page 134 CA system checks - EMM bi- The averaging period used to calculate EMM bitrate. Note that the trate average period (s): average period must be at least 20s less than the round-robin tuning period, e.g. with a round-robin tuning period of 70s the maximum EMM bitrate average period is 50s.

  • Page 135: Etr 290 - Pid Thresh

    6.9.13 ETR 290 — PID thresh. The PID thresholds make it possible to define detailed conditions for alarm triggering on a PID or PID type basis. There is one predefined PID threshold template that cannot be edited by the operator: ‘Default’.
  • Page 136 The PID threshold template has the following settings: VB3xx 10G Probe User’s Manual version 5.2...
  • Page 137 Edit PID Threshold: Name: The name of the PID threshold template Description: Text field that should contain a meaningful description of the threshold template PID Threshold Parameters: Selection: The user selects if the requirements should apply for a specific PID or for all PIDs of a specified type.

  • Page 138: Etr 290 - Service Thresh

    6.9.14 ETR 290 — Service thresh. The Service thresholds make it possible to define detailed conditions for alarm triggering on a per- service basis. There is one predefined service threshold template that cannot be edited by the operator: Default. The Default service threshold template contains no service definitions and will therefore not alter alarming for any service.
  • Page 139 Edit Service Threshold: Name: The name of the ETR threshold template Description: Text field that should contain a meaningful description of the threshold Service Threshold Parameters: Selection: The user selects if the requirements should apply for a specific service ID, for all services of a specified type or for a service with a specified service name.

  • Page 140: Golden Ts Reference

    6.9.15 Golden TS reference The Golden TS reference option is available on HW4 and VB330 probes. It is used to compare the tables in the transport stream with a set of stored reference tables. This allows the operator to be notified of any...
  • Page 141 And lots of misconfigurations in multiplexers To use the Golden TS reference functionality first store away tables for a stream or a set of streams. Go to ETR 290 — Ref. Thr. Here you can see the reference thresholds currently stored on the probe and they can be renamed or edited.
  • Page 142 If needed a new template can be created and associated with the stream(s). Or the existing template(s) can be changed. The settings are as follows: The reference check needs to be set to alarm if the Golden TS reference checking are to be performed. The settings are as follows: Also check version number By default the version number and the original CRC of the tables are...
  • Page 143 Verify PMT table When enabled the Program Map Table will be checked. This allows the operator to catch lots of changes to the different services: Addition or removal of the various components such as audio and video PIDs. Changes in language descriptors Changed PCR PIDs Changed or removed ECM PID Lots of changes in the descriptors can be detected...
  • Page 144 Verify NIT actual tables When enabled the Network Information Tables for the other networks will be checked. This is disabled as default. This allows the operator to catch changes such as: Changes in frequency Changes in modulation parameters Network name Changes in service lists per transport stream Changes in private as well as MPEG/DVB defined descriptors The Golden TS reference checking is performed by the ETR engines and can be performed in round...
  • Page 145 If the tables are inspected and the change found to be OK the operator can then go in to ETR 290 — Ref. thr. and update the stored table set to the new version. VB3xx 10G Probe User’s Manual version 5.2...

  • Page 146: Setup

    6.10 Setup 6.10.1 Setup — Params The Parameters page contains the following settings: Various Probe name: Each probe can be assigned a user defined name. This name is shown in the Summary page which is the probe default page. The probe name is displayed in the browser’s title line.
  • Page 147 Treat Ethernet events as When enabled each event is treated as an alarm that is active for 5 alarms: seconds. This may be useful when reporting to external systems that do not support events but only active or cleared alarms. This setting affects the local alarm lists and SNMP traps.

  • Page 148: Setup

    SNMP Community string: The probe SNMP community string can be changed. Trap destination 1–3: SNMP traps will be sent to the specified destinations. Set to 0.0.0.0 to disable SNMP trap transmission. 6.10.2 Setup — Pages The Setup — Pages view allows names to be associated with different pages. This facilitates navigation in the Multicasts views.

  • Page 149: Setup - Colors (Requires Extract-Opt)

    6.10.3 Setup — Colors (requires EXTRACT-OPT) The Setup — Colors view allows the user to define colors that should be recognized if a color-freeze condition should occur. A mono-colored freeze frame condition may in some cases indicate what equipment is failing, resulting in the color-freeze. A freeze color is defined by clicking the Add new color button and assigning an RGB value to a name.

  • Page 150: Setup - Time

    6.10.4 Setup — Time The time of the probe is used to timestamp events in the alarm list. The local time is always presented just below the alarm list. The probe time should not be set manually if the probe is synchronizing against a time server (refer to the Setup —...
  • Page 151 management) and separate management (i.e. using eth1 for management). In any case make sure that the subnets for the interfaces do not overlap – otherwise the probe will not work properly. Dual stack functionality enables the probe to support both IPv4 and IPv6 for management. IP settings - data/video SFP+ B (eth0) Enable DHCP: If enabled, IP-address (eth0), netmask (eth0) and gateway are updated by...

  • Page 152: Setup - Ethernet - Ipv6 Settings

    6.10.5.1 Setup — Ethernet — IPv6 Settings IPv6 settings – data/video SFP+ B (eth0) Enable IPv6: If IPv6 is enabled, the probe will use IPv6 for management on eth0. Enable IPv6 If IPv6 auto-configuration is enabled, the probe will receive IPv6 address, IPv6 autoconf: prefix and gateway address from a network router when booting.

  • Page 153: Example 1 - Separate Management Ipv4

    IPv6 Gateway: Required to allow clients with an address outside the probe subnets to access the probe (HTTP, FTP, SSH, TELNET, SNMP). It is also required for the probe to access an NTP server or DNS server with IPv6 address outside the probe’s subnets.

  • Page 154: Example 2 - In-Line Management Ipv4

    6.10.5.3 Example 2 – In-Line Management IPv4 This model is useful if there is no separate management network and both data/video and management traffic are to use the same network. In this configuration the probe’s management network may not even be connected.

  • Page 155: Setup - Vlans

    6.10.6 Setup — VLANs The VB330 probe supports a large number of VLAN interfaces. The VLAN interfaces can be associated with any of the physical interfaces. Once enabled, these VLAN interfaces can be used for routing and joining of multicasts.

  • Page 156: Setup - Vbc

    6.10.7 Setup — VBC The VideoBRIDGE Controller can automatically detect the VB330 10G Probe and add it to the VBC equipment list, provided that the auto-detect functionality is enabled and the VBC server address is known to the probe. Note that the network must be transparent to traffic between the VBC server and probes for auto-detection to work.
  • Page 157 Any user can enable access control, but only users who are logged in can disable it or change the password. When access control is activated a READ-ONLY access message is displayed under the alarm list for users that are not logged in. It will be necessary to log-in each time a web browser application is launched and pointed at the probe.

  • Page 158: Setup - Etr

    6.10.9 Setup — ETR The Setup — ETR view allows the user to select miscellaneous ETR handling modes. Note that settings that apply to optional interface cards are not relevant for the VB330. 6.10.9.1 Parsing rules for private descriptors Probe recognition of a number of selected private descriptors may be defined by the user: 129 (0x81): ‘Disabled’...

  • Page 159: Etr 290 Tuning Control

    The default value for private descriptors is ‘Disabled’. To change this value, select a new descriptor interpretation from the drop-down menu and click the Apply changes button. 6.10.9.2 ETR 290 tuning control By default authorized users will be allowed to lock the ETR 290 analysis to one stream for an infinite length of time and unauthorized users will not be allowed to lock the analysis.

  • Page 160: Inactive Inputs

    6.10.9.5 Inactive inputs It is possible to hide disabled inputs from the ETR 290 views. This is convenient when one ore more inputs are never used, and therefore have been disabled. Mark the Hide inactive inputs checkbox to hide disabled inputs. 6.10.10 Setup —...
  • Page 161 VBC thresholds Name: The name of the VBC threshold template No signal: Number of seconds with ‘No signal’ RTP error: Number of seconds with RTP packet drops. This measurement will be zero unless the stream is encapsulated in RTP headers MLR error: Number of seconds with packet drops in the TS layer (seconds when media loss rate is non-zero).

  • Page 162: Setup - Scheduling

    Number of seconds the bitrate can fall below the error-threshold before a VBC alarm is generated ETR Pri 1 errors: ETR error seconds are note relevant for the VB330 10G Probe ETR Pri 2 errors: ETR error seconds are note relevant for the VB330 10G Probe...

  • Page 163: Setup - Routing

    When a scheduling template has been modified, click the Apply changes button. Defined scheduling templates become available as selections in the ETR 290 — PID thresh. — Edit and ETR 290 — Service thresh. — Edit views. 6.10.12 Setup — Routing The Setup —...

  • Page 164: Setup - Security

    6.10.13 Setup — Security The Setup — Security view makes it possible to disable selected communication protocols to increase safety against unauthorized access to the probe. It is also possible to have the probe disregard IP packets with source address outside the Ethernet interface’s subnet. Note that the Setup —...

  • Page 165: Data

    The configuration, stream list and thresholds exports can all be imported. Configuration files generated by a probe can be imported by the VB330. You can also import and export license and software maintenance keys in XML format from this page.

  • Page 166: Data - Software

    To import documents that have been manually edited the CRC attribute at the very top of the document must be deleted (i.e. delete from the file). This will bypass the checksum verification crc="..." mechanism. Note that the Ethernet setup parameters (IP-address, netmask and gateway) and probe-names are not part of the XML document.

  • Page 167: Data - Table Descriptors

    6.11.3 Data — Table Descriptors It is possible to upload parser files to the probe adding support for private descriptors. Private descriptors should be enabled (in the Setup — ETR view). VB3xx 10G Probe User’s Manual version 5.2...

  • Page 168: Data - Eii

    Contact Sencore for more information about private descriptors. 6.11.4 Data — Eii The External integration interface (Eii) allows inclusion of Sencore VideoBRIDGE equipment into 3rd party NMS systems. In order to facilitate integration the Data — Eii view allows export of XML files containing the data typically being requested by an NMS system via the regular Eii interface.

  • Page 169: Data - Storage (Flash Option)

    6.11.5 Data — Storage (FLASH option) The FLASH option allows a 32GB flash card to be used for storing recordings offline. RDP recordings are automatically stored, and PCAP recordings can also be stored in flash. VB3xx 10G Probe User’s Manual version 5.2...

  • Page 170: About

    6.12 About 6.12.1 About — Release info This view shows the software version, the hardware type and the software build date of the VB330 10G Probe. VB3xx 10G Probe User’s Manual version 5.2...

  • Page 171: About - License

    6.12.2 About — License This view shows the available probe options and current probe license details. By clicking the blue information icon associated with each option it is possible to view option details. It is also possible to export the license and software maintenance keys in XML format from this page. These keys can be imported using the Data —...

  • Page 172: About - Credits

    This view shows a description of some of the technologies available in the Sencore VideoBRIDGE product family. 6.12.4 About — Credits This view shows information about the software included with the 10G Probe. VB3xx 10G Probe User’s Manual version 5.2...

  • Page 173: A Appendix: Vb330 Versus Vbc Alarms

    A Appendix: VB330 Versus VBC Alarms The VB330 10G Probe alarms are independent of the VideoBRIDGE Controller alarms. The 10G Probe has been designed to yield instantaneous alarms based on the current measurements. This typically results in lots of short-lived alarms that would be “too much” for the VBC to report, as the VBC may control a large number of 10G Probes.
  • Page 174 Figure A.1: VBC alarming based on VB330 measurements VB3xx 10G Probe User’s Manual version 5.2...

  • Page 175: B Appendix: Monitoring Practices

    B Appendix: Monitoring Practices This Appendix summarizes a few useful monitoring practices. B.1 RTP Monitoring When running video inside an RTP wrapper it is possible to exactly deduce the number of dropped IP frames due to network issues. This is possible as a result of the 16-bit sequence counter inside the RTP header.
  • Page 176 Imagine the following MPEG-2 Transport Stream being generated by an encoder. The TS contains two PIDs (50 and 51) and the Continuity Counter (CC) values are continuous for each PID since there are no packets missing. PID: 50 PID: 51 PID: 50 PID: 51 PID: 50...

  • Page 177: Strategy For Mediawindow Analysis

    B.3 Strategy for MediaWindow Analysis This section provides further insight into MediaWindow analysis and suggests how the Ethernet threshold settings can be configured to maximize the usefulness of the MediaWindow graphs and alarms. The MLR value is always calculated using the continuity counter inside the transport stream packets. Since the continuity counter is expected to increase by one for each packet of the same PID it is possible to detect missing TS packets by noting gaps in the continuity counters.

  • Page 178: Iat Before And After Router

    B.3.1 IAT Before and After Router Packet-loss that occurs before or inside a router will usually not be visible since the queuing mechanism at the outgoing interface of the router will send out packets in an orderly fashion. If however the packet-loss did occur after the router (due to line noise for example) thus affect the timing between two neighboring packets –...

  • Page 179: Identifying Udp Packet Loss

    For VBR streams a similar packet-loss will not necessarily affect the IAT graph even if the time between two neighboring packets doubles. The pink line represents the IAT and MLR value measured for the missing packet. B.3.2 Identifying UDP Packet Loss This discussion does not apply to streams with TS/RTP mapping since in that case identifying UDP packet loss is straight forward.

  • Page 180: Thresholds

    As we have seen, there is no sure way to distinguish between UDP packet-loss and loss in the underlying TS packets. One way to deal with the situation is to have a probe doing zero readings close to the signal source before the network can introduce UDP packet loss.

  • Page 181: C Appendix: Ott Profile Health

    C Appendix: OTT Profile Health C.1 OTT Profile Health Bar The profile health bar displayed at channel level shows an overview of current status for individual channel profiles. Different colors indicate status: Green: OK Yellow: Warning Orange: Error Red: Major Black: Fatal All enabled alarms may affect the profile health bar, and alarm severities can be assigned to each alarm in the Alarms —...

  • Page 182: Ott Profile Health Timeline

    C.2 OTT Profile Health Timeline The OTT profile health timeline shows information about channel bitrate and channel alarm status for the last two hours, with a time resolution of one minute. Green parts of the timeline indicate profile download time versus chunk length. The graph is scaled so that 100% indicates a chunk download time identical to chunk length (in seconds), chunk length being signalled in the profile manifest.

  • Page 183: D Appendix: Software Upload

    D Appendix: Software Upload The process of performing a software upload to the probe involves the following steps: 1. Obtain the software image. 2. Export and save the probe configuration. 3. Delete an existing probe stream recording 4. Transfer the image to the probe using the software upload functionality in the Data view. Save the image to flash.

  • Page 184: Step 4: Transfer The Image To The Probe And Save To Flash

    D.4 Step 4: Transfer the image to the probe and save to flash Using the software upload functionality in the Data view From the Data view select the software image file to be uploaded and click the Go! button. When the software has been successfully transferred to the probe click the Save flash button and confirm.
  • Page 185 Open an Internet Explorer window. In the URL field type ftp://admin:elvis@192.168.7.196 (replace 192.168.7.196 with the probe’s IP-address) and hit <ENTER>. Follow the instructions given by Windows. It may be necessary to retype the string including user and password, as described above. Then drag the software image onto the empty Internet Explorer window.

  • Page 186: Step 5: Wait While The Software Is Being Saved

    Probes that are unable to execute the user program (usually caused by interrupting the save-to-flash process described above) can still be upgraded. Contact Sencore for details. To verify that the probe is unable to start the user program, connect the USB cable as explained in section 4.8.2 and reboot the probe.

Table of Contents
