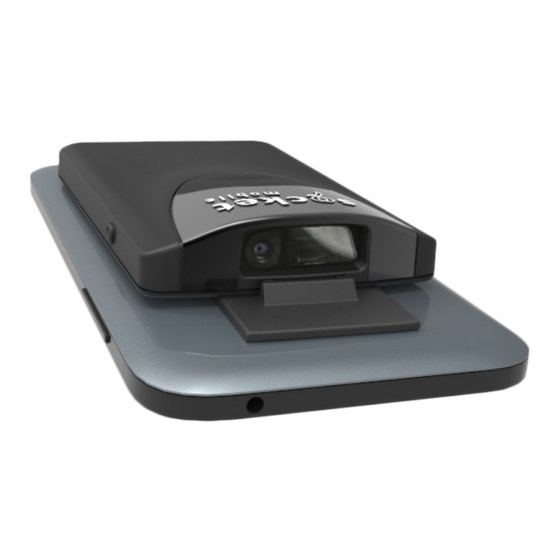

SOCKETSCAN™ 800 SERIES USERGUIDE
ATTACHABLE
Bluetooth
®
wireless technology
Cordless Barcode Scanner
www.socketmobile.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 800 SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Socket 800 SERIES

Summary of Contents for Socket 800 SERIES

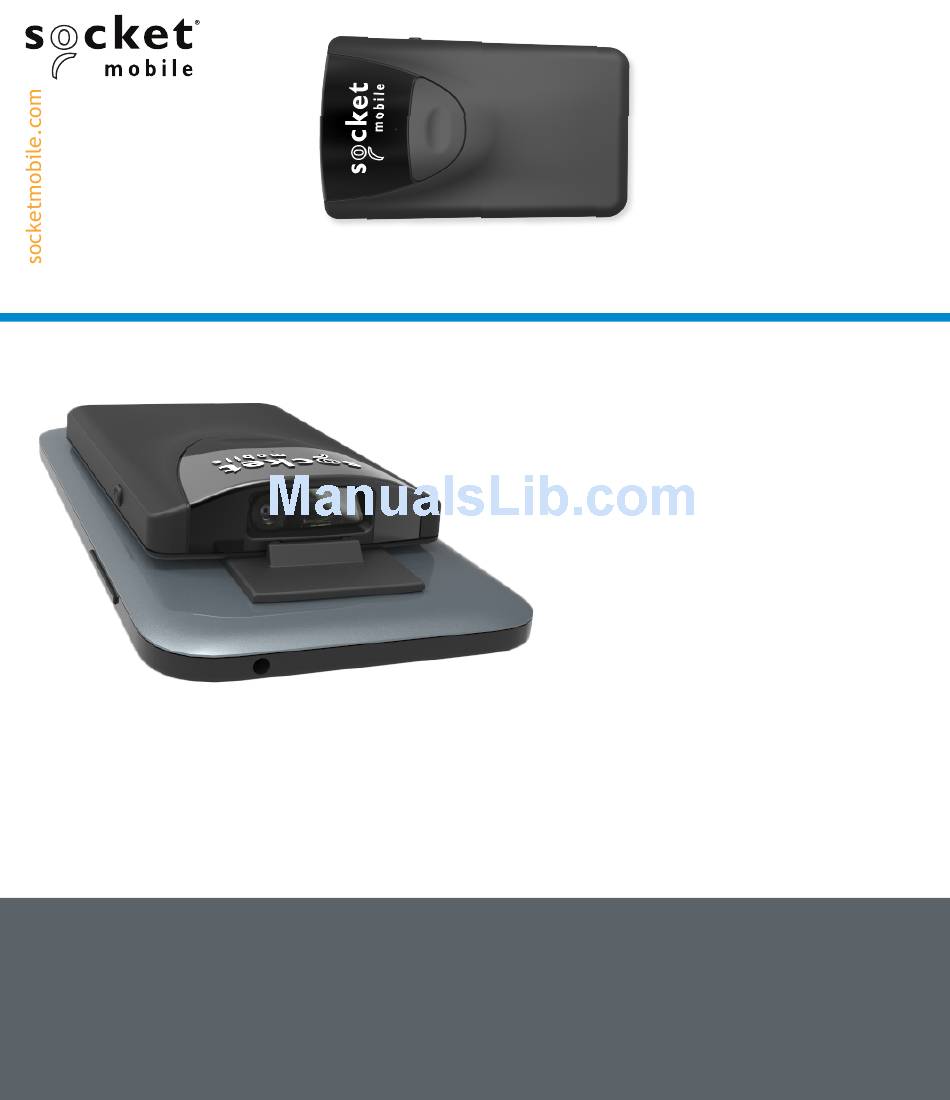

  • Page 1 SOCKETSCAN™ 800 SERIES USERGUIDE ATTACHABLE Bluetooth ® wireless technology Cordless Barcode Scanner www.socketmobile.com...
  • Page 2 U.S. and other countries. The Bluetooth® Technology word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Socket Mobile, Inc. is under license. Other trademarks and trade names are those of their respective owners.

  • Page 3: Product Information

    Lanyard Hook Micro USB Port Lanyard Attachment (not included) Socket Mobile’s barcodes scanners can be wiped clean with a cloth dampened with isopropyl alcohol or water. Or, the barcode scanners can be wiped clean with a Sani-Cloth. Warning: DO NOT IMMERSE IN WATER (scanner’s mechanics could be damaged)
  • Page 4 Adapters that look something like this.) 2. Plug charging adapter (not included) into an outlet. 3. Insert Micro USB into the 800 Series USB port. 4. The 800 Series will beep twice indicating adequate power is being supplied to the unit. Side LED status •...
  • Page 5 Serial Port Profile Application • Apple MFi tested and certified. Mode (MFi-SPP) • An app is required. • If you have an application that supports Socket Mobile Apple Specific Scanners this is the mode you want to use. Serial Profile...
  • Page 6 BLUETOOTH CONNECTION METHODS Connection Options Based on Operating Systems Operating Devices Blue- Blue- Bluetooth Systems tooth tooth Apple (OS) Basic Appli- Serial Mode cation Specific (HID) Mode (Applica- Support (SPP) tion Mode Support (MFi- SPP)) Android Android 2.1 & later Apple iOS iPod, iTouch, iPhone, &...
  • Page 7 Bluetooth settings 3. Make sure the device has Bluetooth “On”. Scan for devices. 4. In the list of found devices, select Socket CHS [xxxxxx]. Tap Pair. 5. The SocketScan will connect to the Android device. 6. The SocketScan will beep once after it has connected and is ready to scan barcodes.
  • Page 8 Note: On some computers the SocketScan will have to be configured as Basic Mode (HID) Peripheral. Please refer to the User Guide to see this special barcode. The User Guide at Socket Mobile’s support web page. Note: For Windows Mobile refer to the User Guide at Socket Mobile’s support web page.
  • Page 9 2. Turn Bluetooth on for your device. Go to Settings > Bluetooth. A Bluetooth Devices search will begin. 3. Tap Socket CHS[xxxxxx] in the list of Devices found. After a few seconds the “Not Paired” status will change to “Connected” and the canner’s Blue LED will blink every 3 seconds confirming the...
  • Page 10 8. On the next screen, tap Pair. 9. The scanner will beep once to indicate connected state and is ready to scan barcodes. Tap Back to close Socket EZ Pair. 10.If you are connecting a scanner which is not registered, a scanner registration icon will appear on top of the screen.
  • Page 11 APPLICATION MODE (SPP) - WINDOWS PC Connect Windows PC in Application Mode (SPP) Note: Make sure you have administrative privileges. 1. Download the latest SocketScan 10 software from Socket Mobile’s support web page. 2. Follow the on-screen instructions to install the software.
  • Page 12 Yes. If prompted for a passkey, enter 0000 (four zeroes). 7. After the SocketScan connects, it will beep once. Close Socket EZ Pair. 8. If you are connecting a scanner which is not registered, a SocketScan registration icon will appear on top of the screen.
  • Page 13 APPLICATION MODE (MFi-SPP) Connect Apple device in iOS Mode Please check with your scanner application vendor or visit www.socketmobile.com/appstore to confirm your Scanner-enabled application supports the SocketScan. If you are using the SocketScan with an Apple iOS device and a Scanner- enabled Application that does not provide instructions how to connect with the SocketScan, please use the following steps.
  • Page 14 APPLICATION MODE (MFi-SPP) 3. Turn Bluetooth on the Apple device. Go to Settings > Bluetooth. A Bluetooth Devices search will begin. 4. Tap Socket CHS[xxxxxx] in the list of Devices found. After a few seconds the “Not Paired” status will change to “Connected” and the SocketScan Blue LED will blink every 3 seconds confirming the connection.

  • Page 15: Using The Scanner

    USING THE SCANNER Scanning Barcodes After connecting the SocketScan to your device, open an application. Place the cursor where you want to enter the scanned data. 1. Hold the SocketScan a few inches from the barcode. 2. Aim, press and hold the trigger button. By default, the SocketScan will beep, vibrate, and the side LED will flash green to confirm successful scan.

  • Page 16: Bluetooth Unpairing

    BLUETOOTH UNPAIRING Note: This procedure will put the SocketScan in discoverable mode. Step 1: Unpairing the SocketScan: Deleting the Bluetooth Pairing If the SocketScan is paired with a device, unpair it before trying to connect to a different device. a. Power on the SocketScan. b.

  • Page 17: Command Barcodes

    COMMAND BARCODES Important! Make sure the SocketScan 800 Series is not connected to a host computer or device before scanning a command barcode! Bluetooth Connection Modes Basic Mode (HID) (default) Configures the SocketScan to Human Interface Device (HID) mode as a Keyboard class...
  • Page 18 COMMAND BARCODES Important! Make sure the SocketScan 800 Series is not connected to a host computer or device before scanning a command barcode! Beep Settings Beep “ON” (Default) Enables SocketScan to beep to indicate successful scans Beep “OFF” Disables SocketScan...
  • Page 19 COMMAND BARCODES Important! Make sure the SocketScan 800 Series is not connected to a host computer or device before scanning a command barcode! Vibrate Settings Vibrate “ON” (Default) Enables SocketScan to vibrate to indicate successful scans Vibrate “OFF” Disables SocketScan from...

  • Page 20: Status Indicators

    STATUS INDICATORS Status LED Activity Meaning Top LED 1 Blink Bluetooth is On and not Bluetooth (every second) connected 1 Blink SocketScan is connected to (every 3 seconds) a device Side LED 1 Green Blink Data successfully scanned (after the beam scan) Side LED Red Constant Battery is charging...
  • Page 21 STATUS INDICATORS Beep Pattern Meaning Low-High Tone Power On High-Low Tone Power Off High-High Tone An adequate USB charging port is detected 1 Low Beep Keyboard Pop-up Enable - Basic Mode (HID) in iOS device only 1 Beep SocketScan connected to device and ready to scan barcodes 2 Beeps (same SocketScan disconnected from device...

  • Page 22: Product Specifications

    PRODUCT SPECIFICATIONS Specifications S800 S850 Dimensions 3.42 x 0.52 x 2.12 in. (86.9 x 53.94 x 13.43 mm) 1.7 oz (48.2 g) Total Mass Antimicrobial additive in all external surfaces Antimicrobial +32 to +122°F (0 to + 50°C) Operating Temp ~10 hours or 10,000 scans Battery Life 4 hours fully charged...

  • Page 23: Helpful Resources

    Phone: 800-279-1390 +1-510-933-3020 (worldwide) Warranty Checker: www.socketmobile.com/support/warranty-checker Socket Mobile Developer Program: Learn more at: http://developer.socketmobile.com This web link is also provided in the below QR Code. To open the web page, scan this QR Code using a QR Code Reader App in your...

  • Page 24: Regulatory Compliance

    REGULATORY COMPLIANCE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 25 ROHS STATEMENT OF COMPLIANCE This product is compliant to Directive 2002/95/EC. NON-MODIFICATION STATEMENT Changes or modifications not expressly approved by the party responsible for compliance. For complete compliance information visit Socket Mobile’s support web page under Series 8 Manuals - Regulatory Compliance. RoHS...

  • Page 26: Limited Warranty

    (1) year from the date of purchase. Product must be purchased new from a Socket Authorized Distributor or Reseller. Used products and products purchased through non-authorized channels are not eligible for this warranty support.
  • Page 27 NOTES...
  • Page 28 Receive Priority Service, Personal Care, and Comprehensive Coverage You only have 60 Days after your Socket Mobile device purchase to en- roll in a SocketCare Service Program! When purchasing a SocketCare program, please provide your device se- rial number from the label below:...
