Nighthawk Pro 200

Flight Controller and Configurator

1.
（1）Please supply power to the Nighthawk Pro 200 using a 3S or 4S LiPo Battery.
（2）Connect the flight controller to the computer using a Micro USB cable. A BLUE LED will light on the flight
controller indicating initial setup and self checking. (Please refer to Appendix - Self checking light status)

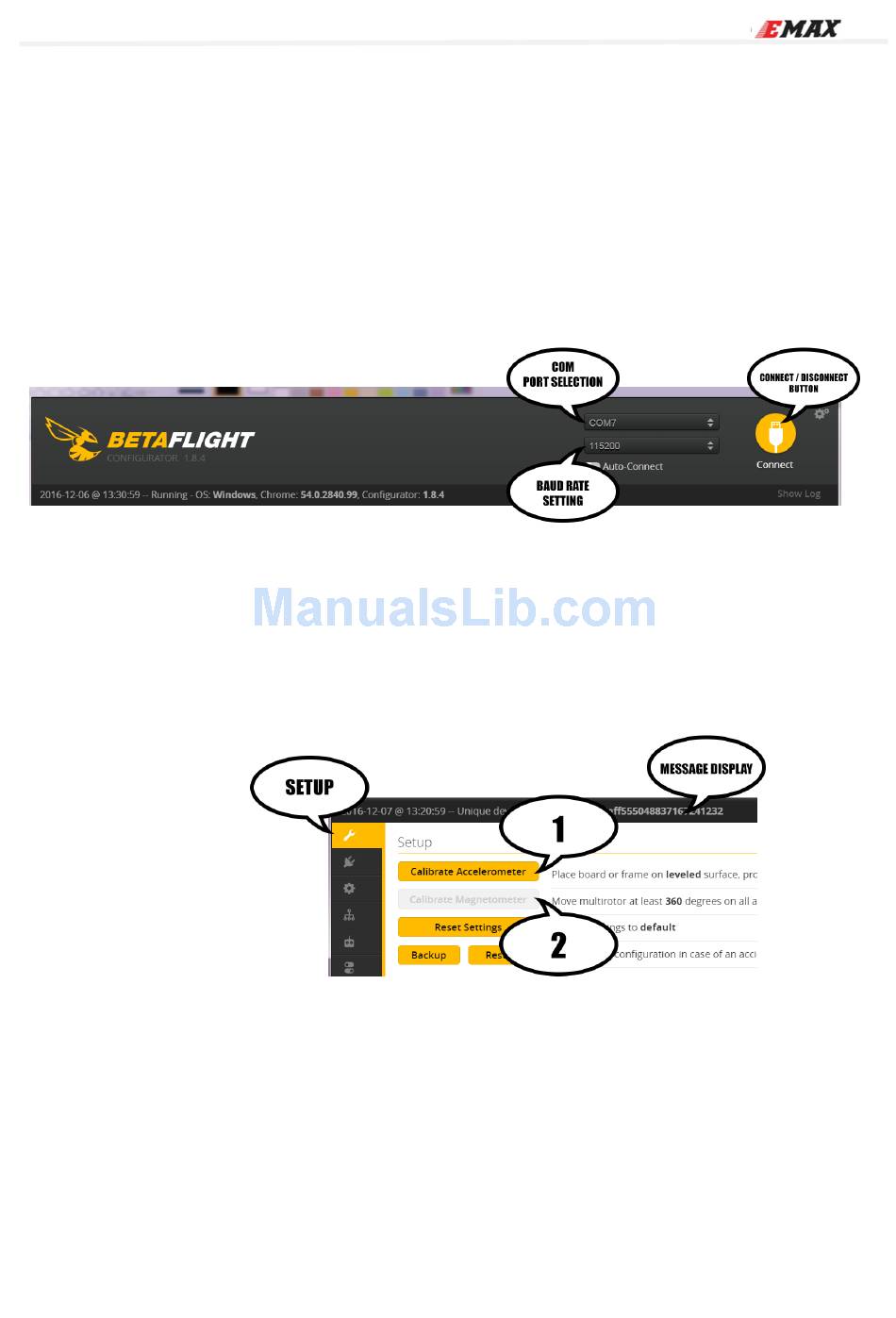

（3）In Betaflight - Configurator App, select your COM port and Baud Rate (keep at default of 115200).
（4）Click "Connect". A GREEN LED will light on the flight controller indicating a successful connection between it
and the configurator.

Flight Controller Setting (Basic)

2.
Accelerometer and Magnetometer Calibration
Please select "SETUP"
①Calibrate Accelerometer
②Calibrate Magnetometer (If Supported)
（ 1 ）
Calibrate Accelerometer: Place the Nighthawk Pro 200 on a leveled surface, then select "Calibrate
Accelerometer." Once the accelerometer calibration is complete, date will be saved automatically. Note: Starting or
ending accelerometer calibration will be shown in the "Message Display." (Make sure not to move the Nighthawk Pro
200 during calibration)
（2） Calibrate Magnetometer: Select "Calibrate Magnetometer." Make sure to rotate the Nighthawk Pro 200 360
degree in all axis within 30sec (Axis include: Roll axis, pitch axis and yaw axis). Note: Starting or ending magnetometer
calibration will be shown in the "Message Display."
7
