Emax Nighthawk Pro 200 Instruction Manual page 8

Nighthawk Pro 200

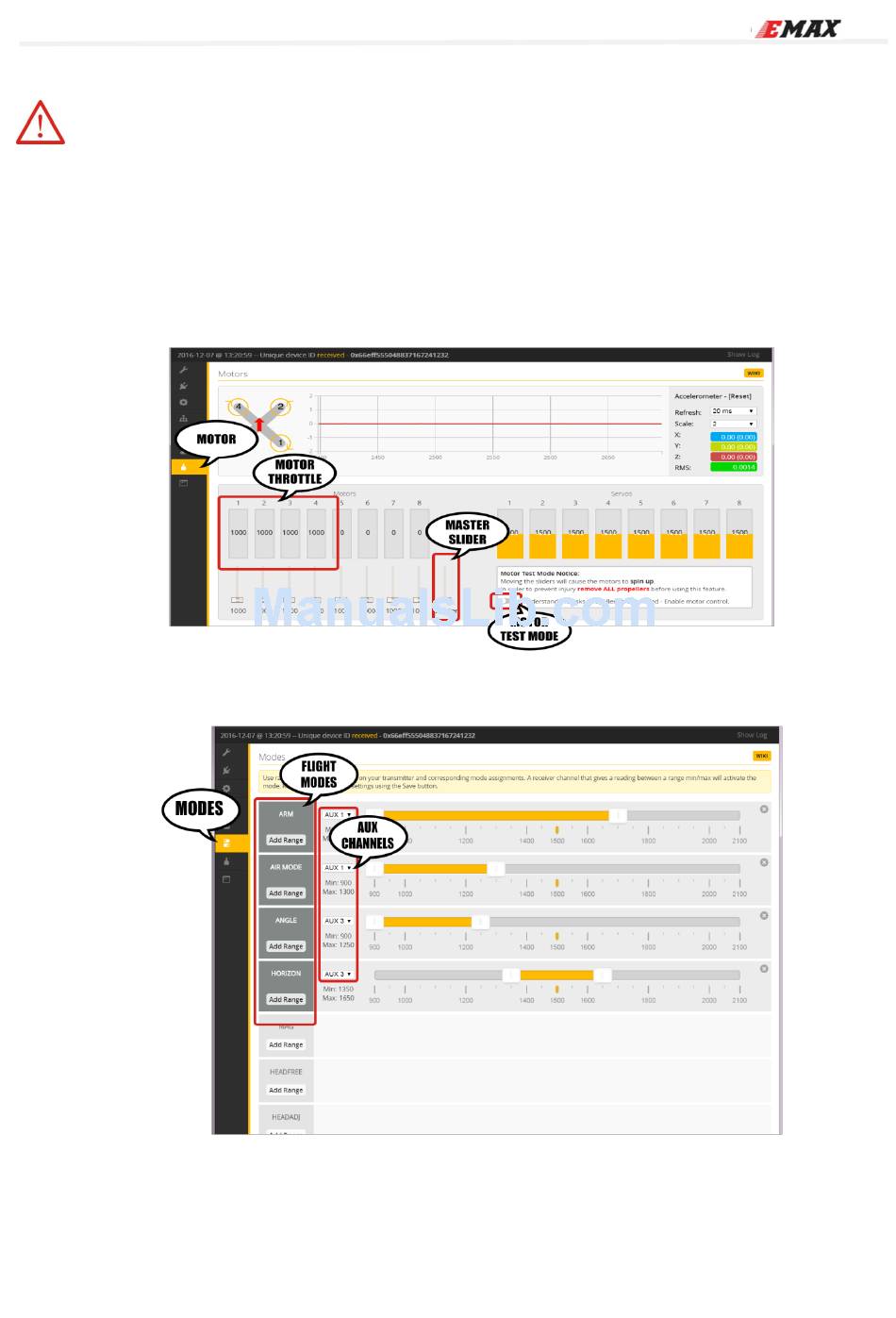

ESC CALIBRATION
Please make sure to REMOVE PROPELLERS before performing ESC Calibration！
(1) Please select "Configuration", change Maximum Throttle to 2000 and save
(2) Please select "Motor" Tab
①Please check the box for "Motor Test Mode"
②Move the "Master Slider" to MAXIMUM
（3）Power the unit using a 3S or 4S LiPo. After plug-in the MAXIMUM throttle confirmation will sound, move the
"Master Slider" to minimum and wait for the MINIMUM throttle confirmation sound. After the minimum throttle
confirmation sound, you will hear a final confirmation sound. ESC calibration is complete.
MODE SELECTIONS
（1）Please select "Modes"
①Flight Modes: ARM, ANGLE, HORIZON, MAG, HEADFREE, etc. If need to add another mode, please click
"Add Range." When desired mode is selected, AUX Channel drop-down box will appear on the right.
②AUX Channel Select for Modes.
（2）AUX Channel for Modes: Click the "Add Range" button to add a Flight Mode. Select an available auxiliary
8
