Nighthawk Pro

Step 3 Receiver Connection

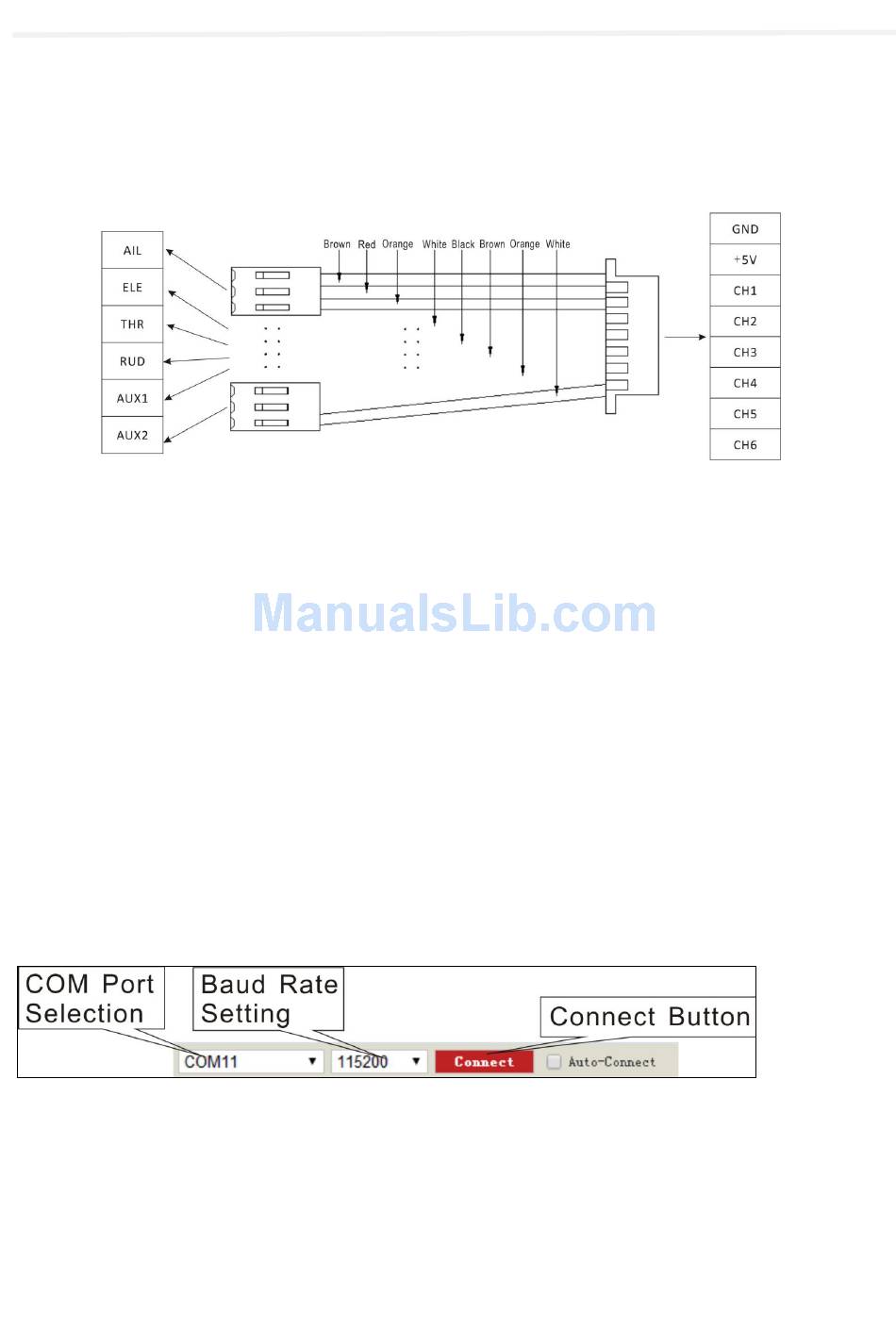

Receiver and Flight Controller Connection (ARF model ONLY)

Receiver

Step 4 How to use Baseflight Configurator

Only Baseflight Configurator will be discuss below. If customers use Cleanflight components, please download
cleanflight configurator to configure you Cleanflight controller.
Note: RTF version only need to follow the accelerometer and magnetometer calibration and ESC calibration. ARF will
need to follow the accelerometer and magnetometer calibration, ESC calibration, Mode selection and transmitter
calibration.
1、

Flight Controller and Configurator

（1）Please switch the ESC switch to ON
（2）Connect flight controller to computer with Micro USB cable, blue light will lit on flight controller and start self
checking. (Please refer to Appendix - Self checking light status)
（3）In Baseflight Configurator App, select COM port and Baud Rate
（4）Click "Connect", flight controller and configurator and connected when the button change to green.
2、

Flight Controller Setting (Basic)

Accelerometer and Magnetometer Calibration

8Pin Cable
７
www.emaxmodel.com
RC Input Connector
