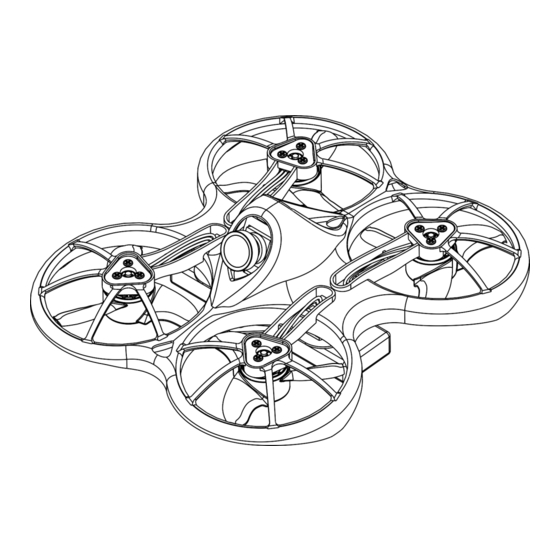

Thanks for purchasing the Tinyhawk. Designed in California, assembled in China.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tinyhawk and is the answer not in the manual?

Questions and answers

Related Manuals for Emax Tinyhawk

Summary of Contents for Emax Tinyhawk

  • Page 1 Thanks for purchasing the Tinyhawk. Designed in California, assembled in China.
  • Page 2 Please fly in a safe area away from people Do not modify or use other parts and accessories not approved for the use of EMAX. Do not use this product in harsh environments (such as winds, rain, lightning, snow, etc.).

  • Page 3: Table Of Contents

    Fly Tinyhawk ......................8 Arming ....................... 8 Flying Modes ...................... 8 Line of Sight Flying ..................... 9 First Person View (FPV) Flying ................9 Tinyhawk ......................... 10 Propeller Direction and Mounting ................. 10 Propeller Dismount ....................10 Tinyhawk VTX Settings ................... 11 emax-usa.com...
  • Page 4 Tinyhawk All-in-One Flight Controller ..............14 Emax Tiny Receiver ..................... 14 Binding Procedure .................... 14 Emax Tinyhawk Flight Controller (FC) ..............14 Stock Flight Controller Settings ................ 14 Adjusting Software Settings (Betaflight Configurator) ........15 Reprogramming Tinyhawk Flight Controller ............15 Set the Correct Settings ...................

  • Page 5: Product Specification

    125mm antenna, cable tie) Aircraft weight (without battery) 27.5g Motor TH08025 15000KV Propeller Avan Tinyhawk propeller 40x23x3 F4（MATEKF411 firmware） 4 in one 3A ESC Main Flight Controller EMAX Tiny receiver（Compatible with Frasky remote control D8 mode） Camera 600TVL CMOS camera...

  • Page 6: Product List

    Tinyhawk Product list 1. Tinyhawk × 1 2. Radio × 1 3. Goggle × 1 4. Instruction manual × 1 5. Battery × 1 6. Charger × 1 7. Gaggle battery case × 1 8. Extra Propeller Set (2x CW, 2x CCW) 9.

  • Page 7: Battery And Charging

    Power on and off by holding the power button for 2 seconds. The center light will turn green when on. Binding The radio comes already bound to tinyhawk in the ready to fly kit. If binding is necessary follow these steps: 1. Put tinyhawk into binding mode by pressing and holding the bind button while powering on tinyhawk.

  • Page 8: Trim

    4. Take the radio out of binding mode by pressing and holding the throttle trim down and pitch trim down buttons for 2 seconds until the red lights turn off. 5. Unplug tinyhawk battery to power it down to take it out of binding mode. 6. Tinyhawk and radio will not be bound.

  • Page 9: Assembly

    Caution: Make sure the goggles are on the correct channel that tinyhawk is on. The current selected band and channel of tinyhawk is shown in the lower right corner of the screen.

  • Page 10: Video Channel Auto Scanning

    There is a scanning function on the goggles to aid in finding which channel tinyhawk is on. First power on tinyhawk then press the “A” button to start the auto scan mode. This mode will cycle through all channels and select the channel with the best video reception.

  • Page 11: Flight

    Always use caution when flying and operate in an open and controllable area. Please learn the flight controls first before powering on the aircraft to fly. Radio Stick Controls The left stick controls throttle and yaw direction of tinyhawk. The right stick controls pitch and roll of the aircraft. Left Stick Diagram...

  • Page 12: Fly Tinyhawk

    Calibration takes a few seconds then tinyhawk is ready to fly. Tinyhawk can fly for 4 minutes on a fully charged battery. Land tinyhawk when the battery reaches 3.2v; flying any longer can severely damage your battery and is not recommended.

  • Page 13: Line Of Sight Flying

    Line of Sight Flying To learn how to fly tinyhawk start by flying it line of sight (no goggles yet). Power on tinyhawk and set it down in a cleared room. Arm tinyhawk then throttle up using the left stick to a hover position.

  • Page 14: Tinyhawk

    1. Use a small tool (such as a 1.5mm hex wrench or the small screwdriver provided) to press on the metal on the bottom of the motor and tinyhawk. 2. Press on the blades of the propeller with your fingers until the propellers pop off the motor.

  • Page 15: Tinyhawk Vtx Settings

    Tinyhawk Tinyhawk VTX Settings Vtx Schematic and Button Diagram VTX Channel Settings with the Button 1. Normal display All LEDs on the VTX are normally off until the button is pressed. To check band and channel status click the button once quickly, and LED starts to indicate frequency band and frequency channel.

  • Page 16: Button Menu Diagram

    HAM radio license or prior consent from the FCC.By purchasing this equipment, the user is agreeing that they understand these responsibilities and will operate the equipment legally. Emax cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations.

  • Page 17: Changing Vtx Setting Via Betaflight Osd

    Tinyhawk Changing VTX setting via Betaflight OSD Tinyhawk is equipped with SmartAudio and is already configured with stock settings. The SmartAudio line is operated on UART 2 TX. 1. Power on Tinyhawk, goggles, and Controller. 2. Follow the tips on screen to enter the main settings menu: THROTTLE MID+ YAW LEFT+ PITCH UP to enter OSD parameter adjustment menu.

  • Page 18: Tinyhawk All-In-One Flight Controller

    AUX 1, and AUX 2. The arm switch on tinyhawk is set on AUX 2 and armed with the highest value. The middle stage of AUX 2 activates the beeper. AUX 1 is configured for a 3 stage switch to select flight modes: Angle, Horizon, and Acro activating in an increasing order.

  • Page 19: Adjusting Software Settings (Betaflight Configurator)

    Betaflight Configurator. PID profiles: PID profile 1 is tuned and optimized for Tinyhawk for ultimate control of flight indoors and outdoors. Please do not change these values.
  • Page 20 Tinyhawk Open the CLI Dump File in a text editor and copy all the text. Paste the settings into the command bar and press enter Tinyhawk will reconnect to Betaflight when completed emax-usa.com...
  • Page 21 Tinyhawk Thank you for purchasing our product! Enjoy Flying Tinyhawk. Warning： Please pay attention to your surroundings. Not Recommended for persons under 18 years of age. emax-usa.com...
