BabyHawk R Pro 4 Inch

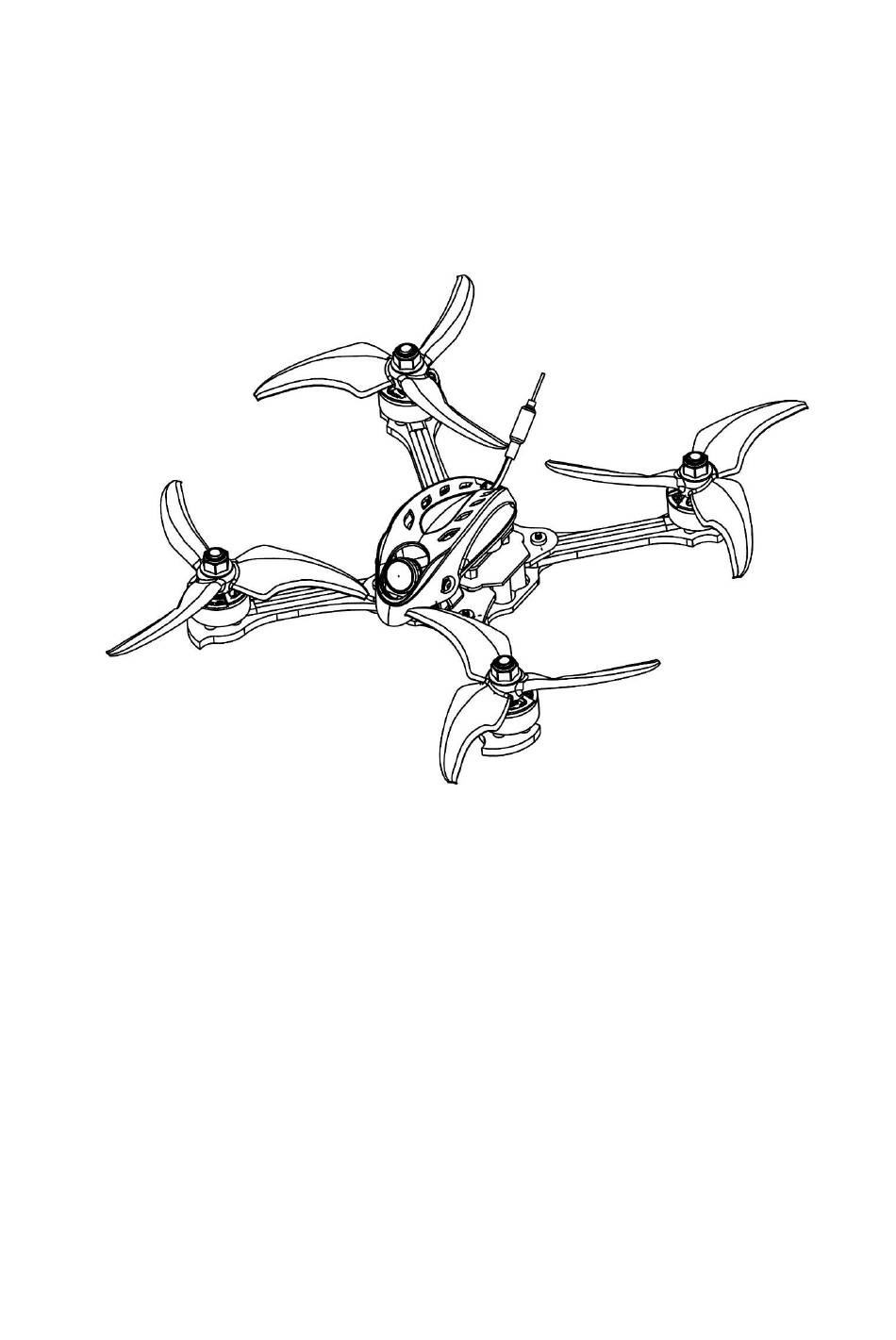

Thanks for purchasing the Babyhawk Race Pro 4 inch. Designed in California,
assembled in China.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Babyhawk Race Pro 4 and is the answer not in the manual?

Questions and answers

Related Manuals for Emax Babyhawk Race Pro 4

Summary of Contents for Emax Babyhawk Race Pro 4

  • Page 1 BabyHawk R Pro 4 Inch Thanks for purchasing the Babyhawk Race Pro 4 inch. Designed in California, assembled in China.
  • Page 2 Please fly in a safe area away from people Do not modify or use other parts and accessories not approved for the use of EMAX. Do not use this product in harsh environments (such as winds, rain, lightning, snow, etc.).

  • Page 3: Table Of Contents

    ........................... 6 Emax Tiny Receiver ....................6 Binding Procedure ....................6 Emax Babyhawk Race Pro 4 inch Flight Controller (FC) ........7 Stock Flight Controller Settings ................7 Adjusting Software Settings (Betaflight Configurator) ......... 7 Reprogramming Babyhawk Race Pro 4 inch Flight Controller ......7 ...........................

  • Page 4: Disclaimer

    25-200mW Adjustable frequency 37CH Battery Emax 4 Cell 850 mAh lipo battery Product list 1. Babyhawk Race Pro 4 inch × 1 2. Instruction manual × 1 3. Emax 1s HV 450 mAh × 1 4. Avan Scimitar 4x2.8x3 (3 CW, 3 CCW) 5.

  • Page 5: Babyhawk Race Pro 4 Inch

    Caution: Failure to mount the propellers in the correct orientation will cause Babyhawk Race Pro 4 inch to not fly correctly and with no control. Please double check for the correct orientation.

  • Page 6: Babyhawk Race Pro 4 Inch Vtx Settings

    Babyhawk Race Pro 4 inch Babyhawk Race Pro 4 inch VTX Settings Vtx Schematic and Button Diagram VTX Channel Settings with the Button 1. Normal display The display will cycle between showing band and channel. If the red dot is on in the lower right corner, that means the vtx is in high power mode (200 mW).

  • Page 7: Ce And Fcc Unlicensed User Chart

    Notice: If you change to an illegal channel using SmartAudio, there will be no image transmitting from Babyhawk Race Pro 4 inch. To switch back to a legal channel, press the button on the vtx and follow the vtx menu guide shown below.
  • Page 8 Babyhawk Race Pro 4 inch Figure 3 Figure 5 4. In the menu of VTX SA, we can configure the BAND, CHAN and POWER. Pulling the PITCH stick to move cursor up and down to choose VTX options that need setting.

  • Page 9: Babyhawk Race Pro 4 Inch Electronic Stack

    Babyhawk Race Pro 4 inch Babyhawk Race Pro 4 inch Electronic Stack Flight Controller Emax Tiny Receiver Number of Channels: Up to 8CH using SBUS Compatibility: FrSky D8 mode Binding Procedure Binding is the process of uniquely associating a receiver to a transmitter module. A transmitter module can be bound to multiple receivers (not to be used simultaneously).

  • Page 10: Emax Babyhawk Race Pro 4 Inch Flight Controller (Fc)

    Please configure your radio as described above or change these settings in Betaflight Configurator. PID profiles: PID profile 1 is tuned and optimized for Babyhawk Race Pro 4 inch with the provided Emax 4s 850 mAh battery for ultimate control. Please do not change these values.

  • Page 11: Set The Correct Settings

    Set the Correct Settings 1. Download the latest CLI Dump File from https://emax-usa.com/ 2. Connect Babyhawk Race Pro 4 inch to Betaflight configurator and select the CLI tab 3. Open the CLI Dump File in a text editor and copy all the text.
  • Page 12 Babyhawk Race Pro 4 inch 5. Babyhawk Race Pro 4 inch will reconnect to Betaflight when completed emax-usa.com...
