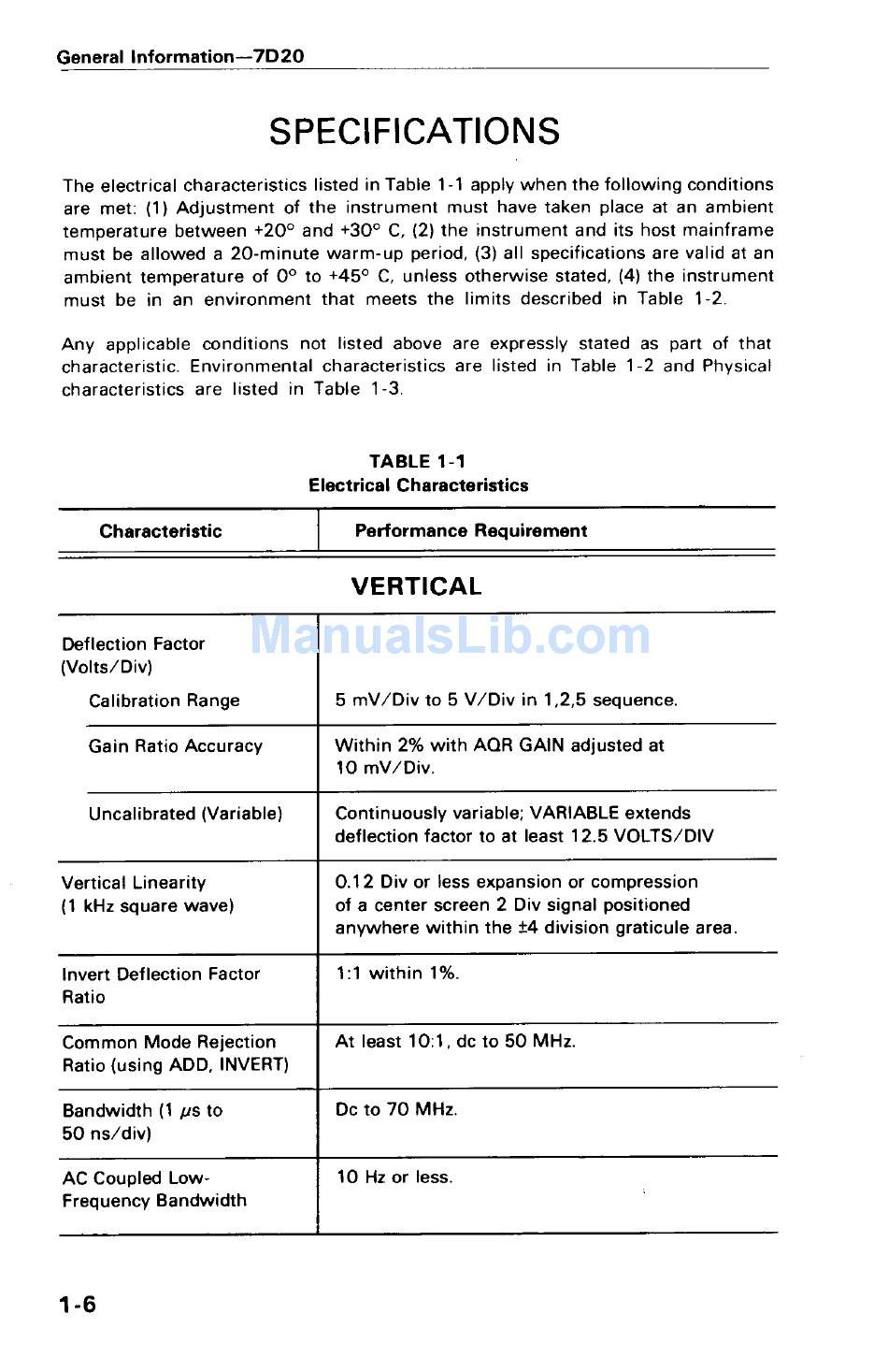

Specifications - Tektronix 7D20 Operator's Manual

General Information-7D20
The electrical characteristics listed in Table 1-1 apply when the following conditions
are met : (1) Adjustment of the instrument must have taken place at an ambient
temperature between +20° and +30° C, (2) the instrument and its host mainframe
must be allowed a 20-minute warm-up period, (3) all specifications are valid at an
ambient temperature of 0° to +45° C, unless otherwise stated, (4) the instrument
must be in an environment that meets the limits described in Table 1-2 .
Any applicable conditions not listed above are expressly stated as part of that
characteristic . Environmental characteristics are listed in Table 1-2 and Physical
characteristics are listed in Table 1-3 .
Characteristic
Performance Requirement
Deflection Factor
(Volts/Div)
Calibration Range
Gain Ratio Accuracy
Uncalibrated (Variable)
Vertical Linearity
(1 kHz square wave)
Invert Deflection Factor
Ratio
Common Mode Rejection
Ratio (using ADD, INVERT)
Bandwidth (1 ps to
50 ns/div)
AC Coupled Low-
Frequency Bandwidth
SPECIFICATIONS
TABLE 1-1
Electrical Characteristics
VERTICAL
5 mV/Div to 5 V/Div in 1,2,5 sequence .
Within 2% with AOR GAIN adjusted at
10 mV/Div .
Continuously variable; VARIABLE extends
deflection factor to at least 12 .5 VOLTS/DIV
0 .12 Div or less expansion or compression
of a center screen 2 Div signal positioned
anywhere within the t4 division graticule area .
1 :1 within 1% .
At least 10 :1, do to 50 MHz.
Dc to 70 MHz .
10 Hz or less .
