dperating I nstructions- 7D2d

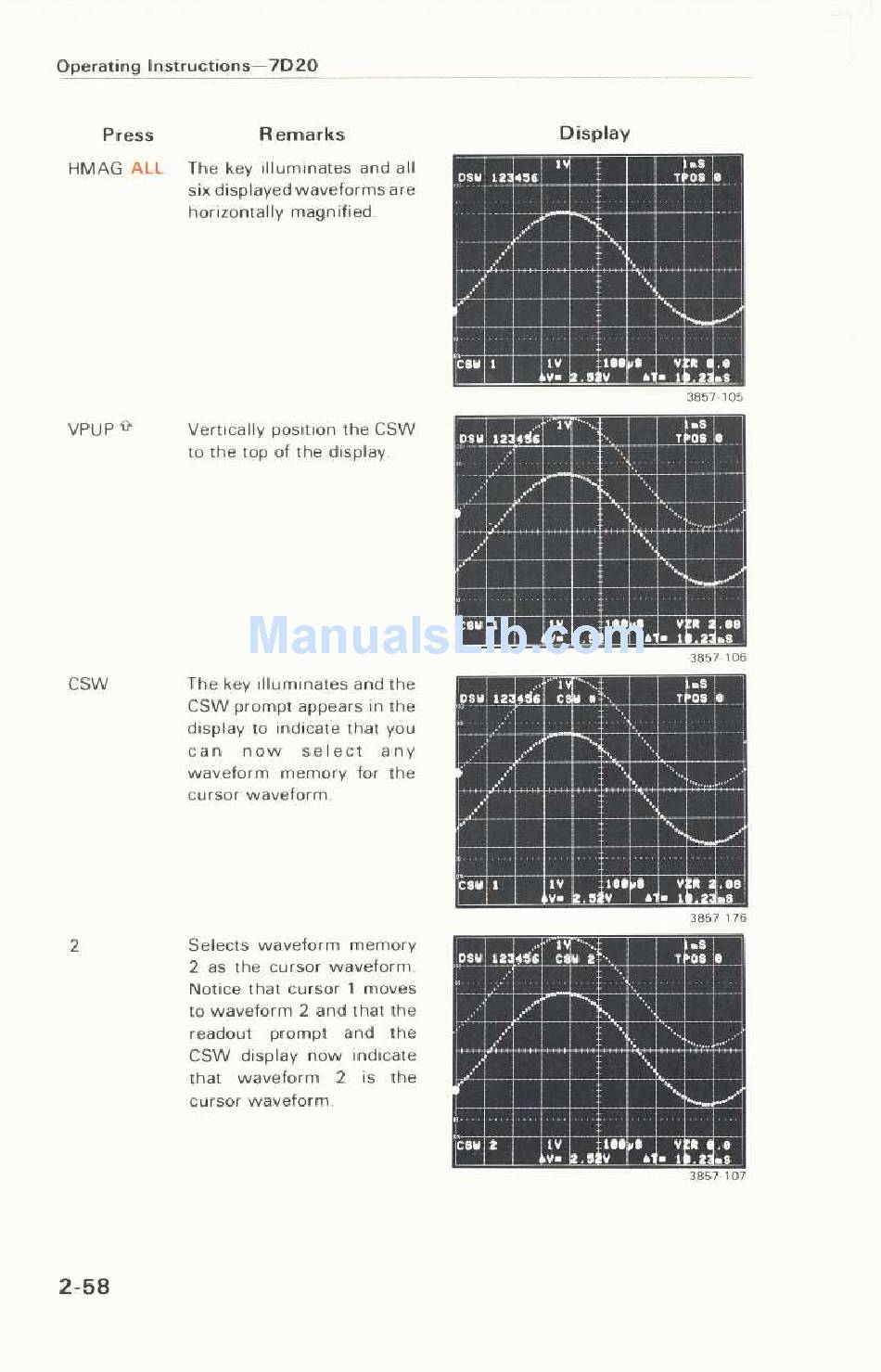

Press
Remarks Display
HMAG ALL The key illuminates and all
six displayedwaveforms are
horizontally magnified.
VPUP "'~ Vertically position the CSW
to the top of the display .
3857 105
CSW The key illuminates and the
3857 106
CSW prompt appears in the
display to indicate that you
can now select any
waveform memory for the
cursor waveform .
3857 176
2 Selects waveform memory
2 as the cursor waveform . ~~
Notice that cursor 1 moves '
to waveform 2 and that the
readout prompt and the
CSW display now indicate
that waveform
2 is the ~ "
cursor waveform .
3857-107
