RACKMOUNT MAINFRAMES
A special option (Option 20) is available for TEKTRONIX R7603 Oscilloscope
(rackmount) mainframes that enable you to make GPIB connections at the rear of
the mainframe . The option includes a special cable which must be installed in the
7D20 for this purpose . This cable is also available separately and can be ordered as
an optional accessory .
COMPATIBILITY
The 7D20 is compatible with all Tektronix 7000-series mainframes except the 7104 .
Because of the small area and fixed pattern of the 7D20 readout, the display from
the 7D20 can cause permanent reduction in the crt microchannel plate gain,
permanently reducing the writing rate of the 7104 . Any crt damage caused by use
of the 7D20 in the 7104 will not be covered under the instrument warranty .
PACKAGING FOR SHIPMENT
If this instrument is to be shipped for long distances by commercial transportation,
we recommend that it be packaged in the original manner . The carton and
packaging material in which your instrument was shipped should be saved and used
for this purpose .
Also, if this instrument is to be shipped to a Tektronix Service Center for service or
repair, attach a tag to the instrument showing the following : Owner of the
CH 2 NosinnN
PROGRAMMABLE
DIGITIZER

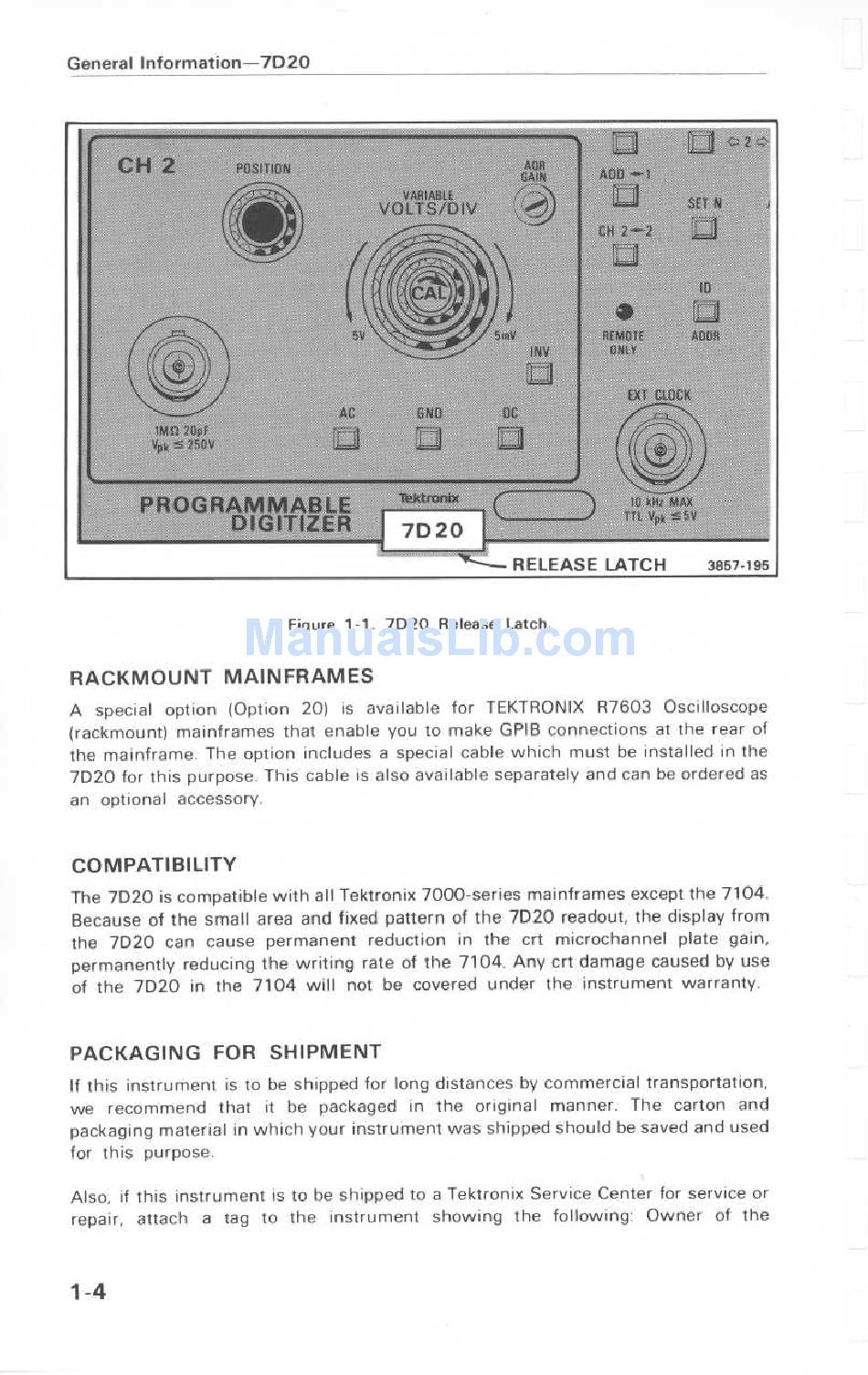

Figure 1-1 . 7D20 Release Latch .
se N
RELEASE LATCH 3857-195
