CSW? HMAG
CSW VS :
<wfm #>
CSWl VS
CSW?
Command/Query

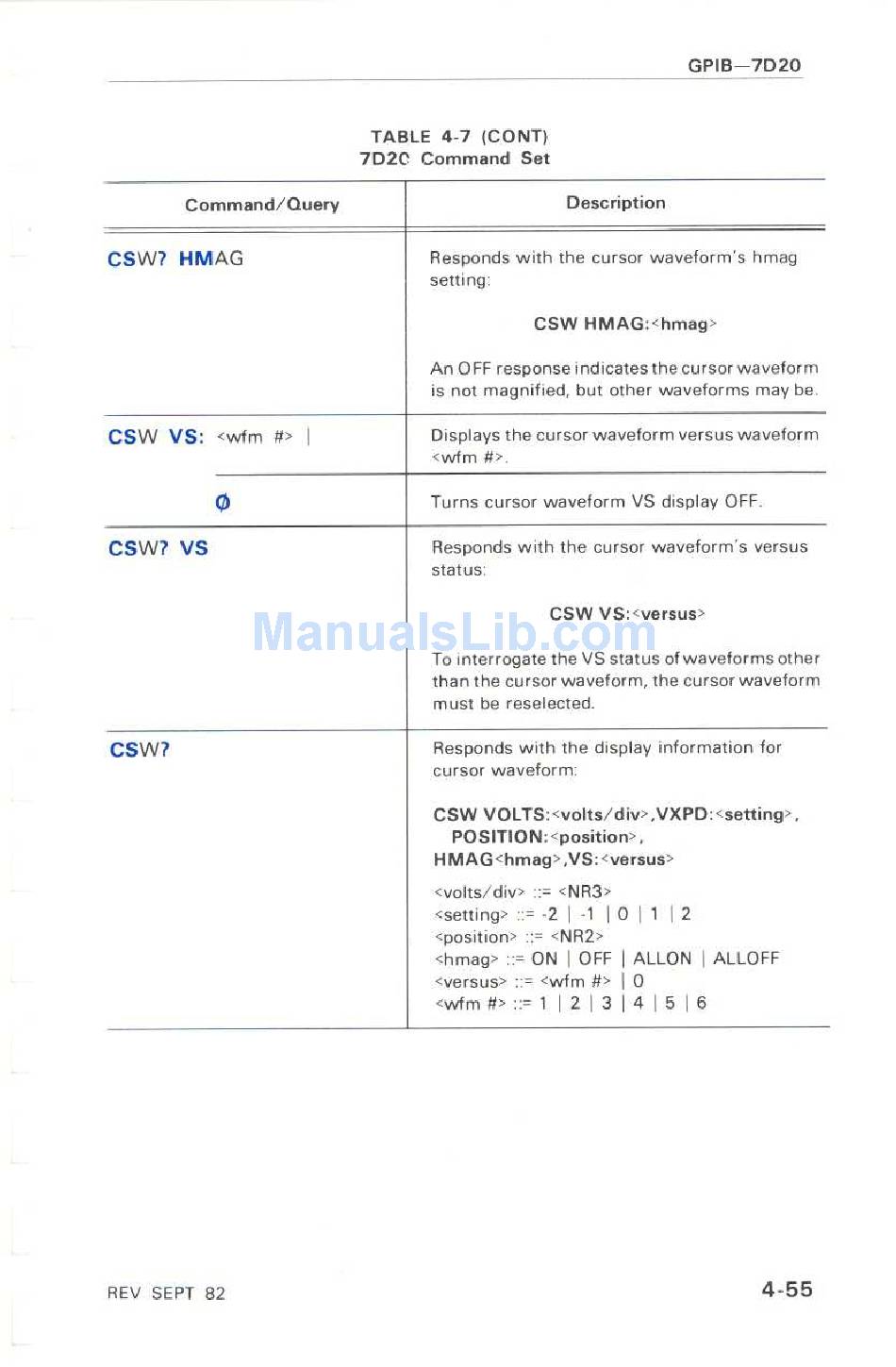

TABLE 4-7 (CONT)
7D2G Command Set
Description
CSW HMAG :<hmag>
CSW VS :<versus>
GPIB-7D20
Responds with the cursor waveform's hmag
setting :
An O FF response indicates the cursor waveform
is not magnified, but other waveforms may be .
Displays the cursor waveform versus waveform
<wfm #> .
Turns cursor waveform VS display OFF .
Responds with the cursor waveform's versus
status :
To interrogate the VS status of waveforms other
than the cursor waveform, the cursor waveform
must be reselected .
Responds with the display information for
cursor waveform :
CSW VOLTS :<volts/div>,VXPD :<setting>,
POSITION :<position>,
HMAG<hmag>,VS :<versus>
<volts/div> : :_ <NR3>
<setting> : :_ -2
I
-1 ~ 0 ~ 1 ~ 2
<position> : : <NR2>
<hmag> : := ON ~ OFF ~ ALLON ~ ALLOFF
<versus> : :_ <wfm #> ~ 0
<wfm#> : :=1 ~2~3~4~5~6
REV SEPT 82
4- 5rJ
