GPIB-7D20
CH2? PROBE
CH2
Command/Query

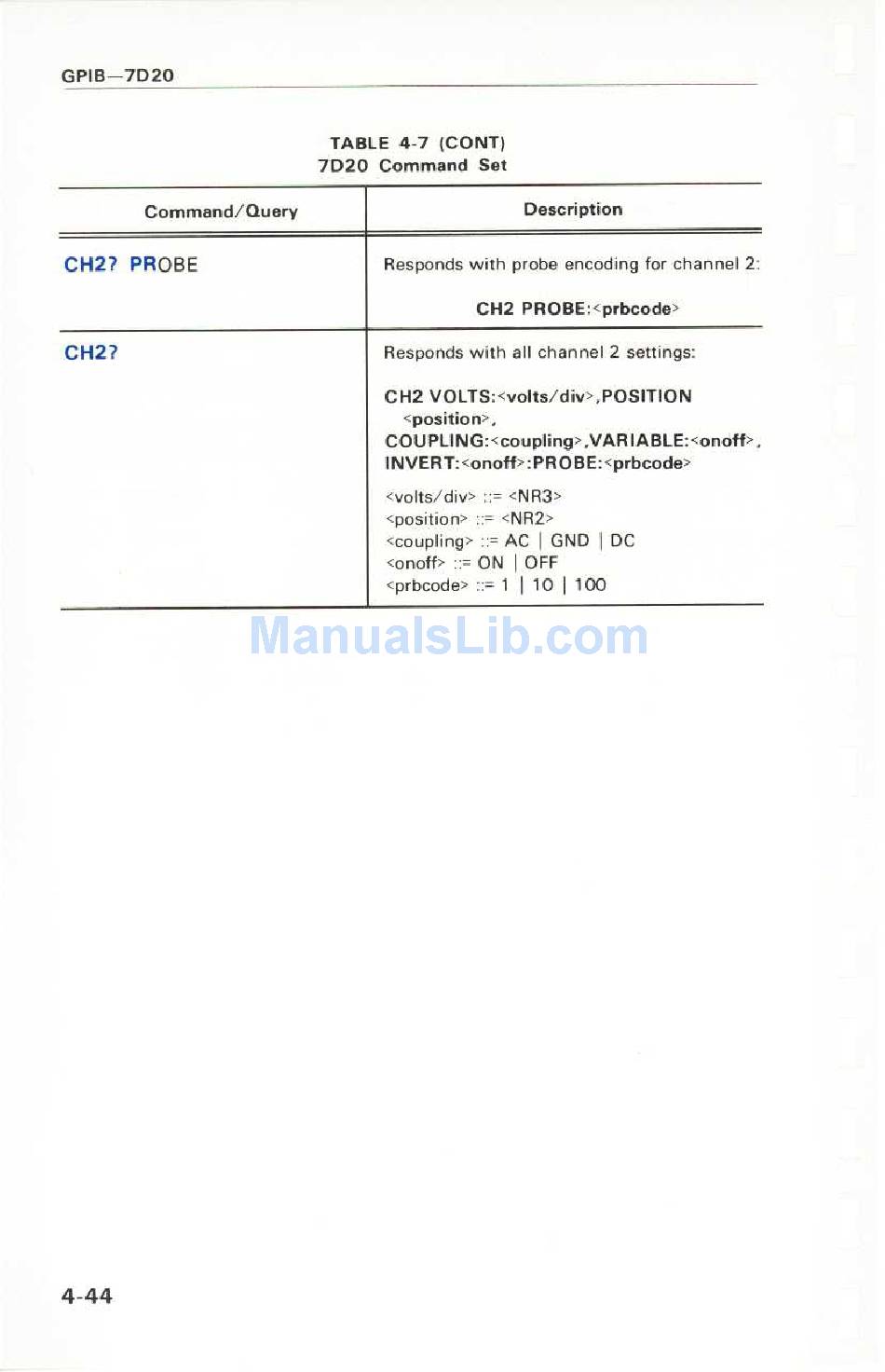

TABLE 4-7 (CONT)
7D20 Command Set
Description
Responds with probe encoding for channel 2 :
CH2 PROBE :<prbcode>
Responds with all channel 2 settings :
CH2 VOLTS :<volts/div>,POSITION
<position>,
COUPLING :<coupling>,VARIABLE :<onoff>,
INVERT :<onoff> :PROBE :<prbcode>
<volts/div> : :_ <NR3>
<position> : :_ <NR2>
<coupling> : := AC ~ GND ~ DC
<onoff> : := ON ~ OFF
<prbcode> : := 1 ~ 10 ~ 100
