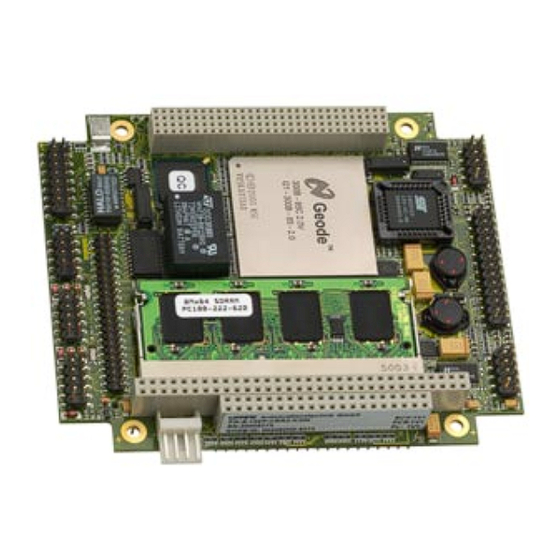

- Page 1 Cool RoadRunner II “All-in-one” PC/104-Plus CPU board Technical Manual TME-104P-CRR2-R1V16.doc Version 1.16 / April 04 LIPPERT © Automationstechnik GmbH Hans-Thoma-Str. 11 D-68163 Mannheim http://www.lippert-at.com...
-
Page 2: Table Of Contents
1.19 USB ports ............................... 15 1.20 EIDE port ..............................16 1.21 Compact flash connector ........................16 1.22 CRT / LCD Graphic-Controller......................16 1.23 Video Input Port ............................. 19 © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... - Page 3 3.12 Flat Panel connector pin definition...................... 30 3.13 PC/104-Plus bus pin definition......................31 3.14 PC/104 bus pin definition........................32 3.15 Video Input Port ............................. 33 © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30...
- Page 4 4.2 Interrupts and DMA channels......................... 36 TECHNICAL CHARACTERISTICS................37 5.1 Electrical specifications.......................... 37 5.2 Environment specifications........................37 5.3 Mechanical specification ........................38 OPTIONS ........................41 HISTORY........................42 © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30...
-
Page 5: Functional Specification
Supports a 64-bit memory bank using single- or double-sided 144-pin SO DIMM modules up to 512MB SDRAM Extension slots: 1x 32-bit PC/104Plus slot 1x 16-bit PC/104 slot © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... - Page 6 With metal spacers there is a possible danger to create a short circuit with the components located around the mounting holes. This can damage the board! © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30...
-
Page 7: Functional Block Diagram
CX5530 National Flash socket GEODE Companion EIDE Ultra DMA/33 SODIMM SDRAM PCI bus Ethernet Graphic SVGA controller controller PC/104Plus bus extension 10/100BaseT Flat Panel © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... -
Page 8: Processor
ATA-compatible devices. A two-port Universal Serial Bus (USB) pro- vides high speed, Plug & Play expansion for a variety of new consumer peripheral devices such as digital cameras. © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... -
Page 9: Integrated Chipset Features
5 volts. The generated voltage of 3.3 Volts, which is available on the connectors „PC/104+“ and „Flat Panel“, must not be used to supply external electronic devices with high power consumption like other PC/104 boards or displays. © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... -
Page 10: Pc/104-Plus Bus Interface
Page 10 of 42 1.7 PC/104-Plus bus interface The PC/104-Plus bus is a modification of the standard PCI PC bus. It incorporates all of the PC/104 features, with the added advantage of the high speed PCI bus. The main features are: PC/104 Plus Bus slot fully compatible with PCI version 2.1 specifications. -
Page 11: Pc/104 Bus Interface
On request there are DOS programs SMCW.EXE (to write) and SMCR.EXE (to read) available that work that way (hex-letters ‘ a ’ to ‘ f ’ have to be entered as small letters) © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... -
Page 12: Pc-At Keyboard Interface
1.12 Reset-In Signal The RESET-IN signal is located on the IDC10 Header “KEYBOARD”. To reset the board the signal RESET-IN must be connected to GND. © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... -
Page 13: Floppy Disk Interface
The parallel port is programmable in BIOS setup by pressing DEL at boot time. Entering Integrated Peripherals and then choosing Onboard Parallel Port, configuration of LPT1 is accessible. Configuring LPT1, the following settings are possible: Disabled © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... -
Page 14: Ps/2 Mouse Interface
Audio IRQ Select: IRQ5, IRQ7, IRQ10 or Disabled Audio Low DMA Select: DMA0, DMA1, DMA3 or Disabled Audio High DMA Select: DMA5, DMA6, DMA7 or Disabled © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... -
Page 15: Irda Interface
Entering Chipset Features Setup and then choosing USB Controller: Enabled and also USB Legacy Support: Enabled. An adapter cable with two standard USB connectors is available. © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... -
Page 16: Eide Port
To better support MPEG2 (DVD) video decompression, the CT69000 includes a line buffer to directly support the native format of MPEG2 data of 720 pixels wide. © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... - Page 17 CT69000 Display Device: CRT, LCD or simultaneous The display can be selected through the following options, if CT69000 Display device is LCD or simultaneous: © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30...
- Page 18 Switched Power Supply + 5V / 1 A VBKL-SRC Display Backlight Supply Source + 12V / 1A SW-VBKL Switched Backlight Supply + 12V / 1A © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30...
-
Page 19: Video Input Port
VGA mode changes. To come back to normal VGA timing the software interrupt looks like this: mov ax,5F19 mov bl,01 mov bh,00 int 10 © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... -
Page 20: Ethernet-Controller
CSMA/CD unit can also be placed in a full duplex mode, which allows simultaneous transmission and reception of frames. The PHY unit of the 82559ER supports Auto-Negotiation for 10BaseT-/100BaseTX Half Duplex and 10BaseT-/100BaseTX Full Duplex. © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... -
Page 21: Watchdog
When a system event is enabled the occurrence of this event will cause the watchdog timer to © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... - Page 22 SMCW f3 4x mapping to IRQ 4 … … … … 0xf3 bit [7..4] = f WDT interrupt SMCW f3 fx mapping to IRQ 15 © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30...
- Page 23 (Bit0 and Bit2-Bit7 are don’t care) of the Super I/O. A low level at this pin indicates that a watchdog time-out has occurred and the watchdog has generated a reset. © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30...
-
Page 24: Hardware Installation
If the user wants to change some settings, pressing the <DEL> key on power up can ac- cess the setup. The BIOS is located in a flash prom and can be easily updated on board with software under DOS. © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... -
Page 25: Software Installation
For the “Cool RoadRunner II” are software drivers for Sound, Ethernet and graphic avail- able. These drivers are delivered on request. For installation follow the instructions on the driver disks. © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... -
Page 26: Connectors
Connector type: IDC10 pin header 2.54 mm Signal name Signal name +5 Volt 3.4 LPT1 port connector pin definition Connector type: IDC26 pin header 2.54 mm © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... -
Page 27: Keyboard Connector Pin Definition
Reset-In (Power- Good) 3.6 VGA connector pin definition Connector type: IDC10 pin header 2.54 mm Signal name Signal name Green Blue HSYNC VSYNC n.c. © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... -
Page 28: 10/100Baset Connector Pin Definition
Connector type: IDC14 pin header 2.00 mm Signal name Signal name /Reset Data7 Data8 Data6 Data9 Data5 Data10 Data4 Data11 Data3 Data12 Data2 Data13 Data1 Data14 Data0 Data15 n.c. DRQ0 © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... -
Page 29: Floppy Connector Pin Definition
3.11 TV-OUT connector pin definition Connector type: IDC 12-pin header 1.27 mm Recommended cable connector: manufacturer: ERNI / Part no.: 103634 Signal name Signal name CRMA LUMA COMP © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... -
Page 30: Flat Panel Connector Pin Definition
5 Volt supply voltage of the board. This 3,3 Volt must be not used to supply connected displays with high power consumption. © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... -
Page 31: Pc/104-Plus Bus Pin Definition
INTB INTC -12 Volt Reserved Reserved All VIO pins are connected to 3.3 Volt by default. -12 Volt is not supported on this board. © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... -
Page 32: Pc/104 Bus Pin Definition
SD12 IRQ4 +5 Volt SD13 IRQ3 MASTER SD14 DACK2 SD15 BALE +5 Volt -5 Volt and –12 Volt are not supported on this board. © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... -
Page 33: Video Input Port
Connector type: FFC 40 pin 0.50 mm Signal Signal CT-VID-VP0 CT-VID-VP10 CT-VID-VP1 CT-VID-VP11 CT-VID-VP2 CT-VID-VP12 CT-VID-VP3 CT-VID-VP13 CT-VID-VP4 CT-VID-VP14 CT-VID-VP5 CT-VID-VP15 CT-VID-VP6 CT-VID-HREF CT-VID-VP7 CT-VID- VREF CT-VID-VP8 CT-VID-VCLK CT-VID-VP9 CT-VID-PCLK © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... -
Page 34: Motherboard Software Specifications
704K - 736K B0000 - B7FFF 32K Color Text Memory 640K - 704K A0000 - AFFFF 64K Graphic Memory 0K - 640K 9FFFF 640K Conventional Memory © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... - Page 35 0CFC – 0CFF 8 bytes PCI Configuration Data Registers 046E8 1 byte VGA Add-in mode enable Register C000 – C0FF 256 bytes PCI Configuration Registers © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30...
-
Page 36: Interrupts And Dma Channels
IDE Controller 16 bits available 16 bits available Note: Depending on enabled or disabled functions in the BIOS, other or more resources may be used © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... -
Page 37: Technical Characteristics
5.2 Environment specifications Temperature range: -20°..+60°C (optional –40°..+85 °C) Storage temperature: -40°..+70°C Temperature change: max. 10K / 30 minutes Humidity (relative): 10..90 % Pressure: 450..1100 hPa © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... -
Page 38: Mechanical Specification
95.9mm x 115.6mm (including I/O extension) Height : 15mm Weight : 140g (including Battery and 32Mbyte RAM Module) Mechanical dimensions : Top side : © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... -
Page 39: Bottom Side
Technical Manual PC/104-Plus “Cool RoadRunner II” Version 1.16 April 2004 Page 39 of 42 Bottom side : © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... - Page 40 Technical Manual PC/104-Plus “Cool RoadRunner II” Version 1.16 April 2004 Page 40 of 42 Self-stacking system (standard) : Customized system : © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30...
-
Page 41: Options
3,5” Floppy, VGA adapter cable, cable for 2,5’’ hard disk drives and Power supply) • Adapter cable for Ethernet, Sound, USB, PS/2 Mouse © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30... -
Page 42: April 2004
- picture on front page added TME-104P-CRR2-R1V14.doc 03-07-30 P.Kannegießer PanelLink removed Extended temperature range TME-104P-CRR2-R1V15.doc 03-08-28 P.Kannegießer corrected TME-104P-CRR2-R1V16.doc 04-04-19 P.Kannegießer SDRAM up to 512 MB supported © LIPPERT Automationstechnik GmbH • Hans-Thoma-Str. 11 • 68163 Mannheim • Tel: 0621/43214-0 • Fax: 0621/43214-30...
