Change the Sonar Colors Palette
The X-Press Menu allows you to quickly change the display palette while you fish. If Ice Fishing Mode is on, additional palettes are
available (F1, F2, F3). The Color Palette menu shows a preview of the palette, and the weak to strong sonar return range is displayed
from left to right.
1. Circular Flasher X-Press Menu: With the Circular Flasher View displayed on-screen, press the MENU key once.
2. If Ice Fishing Mode is on, select Color Palette.
If Ice Fishing Mode is off, select Sonar Colors.
3. Select a palette.
Turn on/off Jigging Mode (HELIX CHIRP SI GPS G2 only)
If you have a HELIX CHIRP SI GPS G2, you can use Jigging Mode to refine the sonar returns shown in the Sonar View. This setting is
influenced by the whether 2D CHIRP Mode is turned on or off. See Set up Sonar for more information.
1. Circular Flasher X-Press Menu: With a Sonar View displayed on-screen, press the MENU key once.
2. Select Jigging Mode.
3. Select On or Off.
Circular Flasher

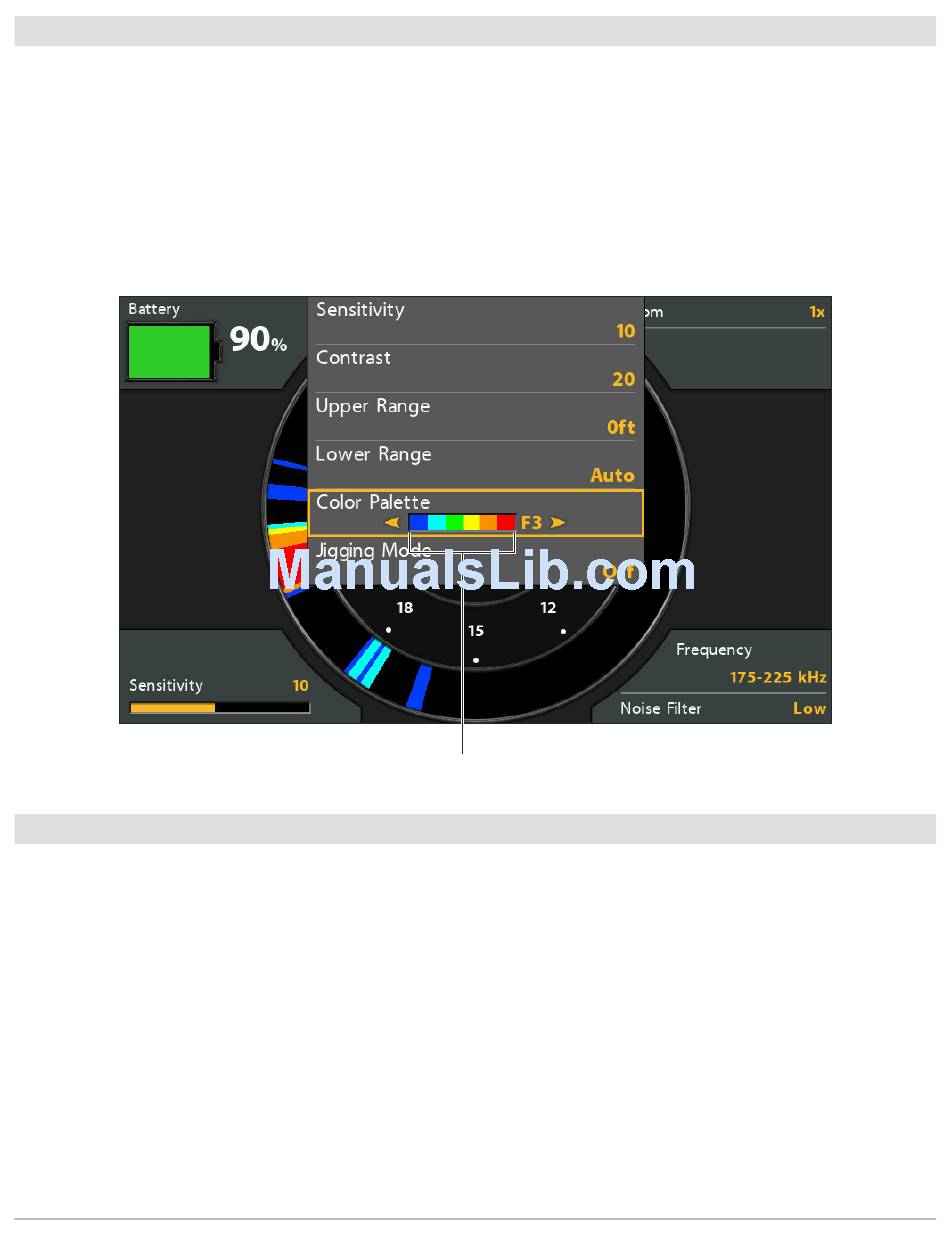

Changing the Color Palette
palette preview (weak to strong)
