Compare Sonar Beams (Split Sonar View) - Humminbird HELIX 5 G2 SERIES Operation Manual

C S
OMPARE ONAR
Split Sonar View displays sonar returns from each down beam frequency on separate sides of the view. You can use this view to make
side by side comparisons between the sonar returns from both beams. The beams are determined by your Humminbird model and
the installed transducer.
Frequencies: HELIX SONAR G2, HELIX CHIRP GPS G2 models, and HELIX CHIRP SI GPS G2 models allow you to compare the 83
KHz and 200 kHz beams in this view. If you have a HELIX DI G2 or HELIX CHIRP DI GPS G2 model, 455 kHz and 200 kHz will be
displayed side by side in this view. When 2D CHIRP Mode is turned on, you can also compare beams.
Fish ID+: It is also helpful to turn on Fish ID+ in Split Sonar View so you can see where the fish are located within each transducer
beam (see Adjust Sonar Display Settings: Turn on/off Fish ID+ Settings).
Display the Split Sonar View
1. Press and hold the VIEW key.
2. Select Sonar > Split Sonar View.
frequency
B
EAMS

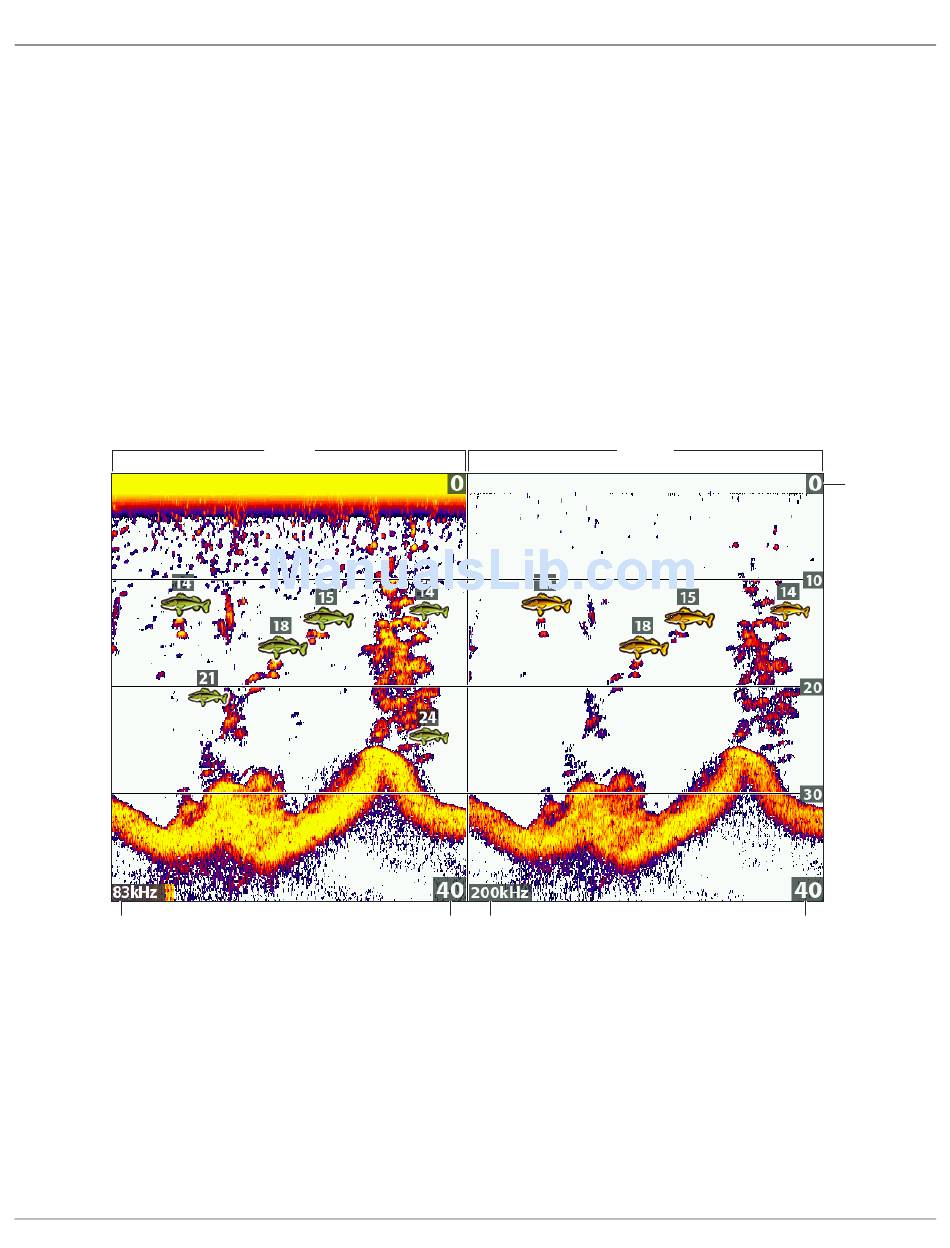

Reviewing Beams Separately in Split Sonar View (83 kHz/200 kHz)
83 kHZ
lower range frequency
59
(S
200 kHZ
lower range
S V )
PLIT ONAR IEW
upper range
Sonar (2D)
