Juniper srx550 Setup Manual

How to Set Up Your SRX550 High Memory Services Gateway

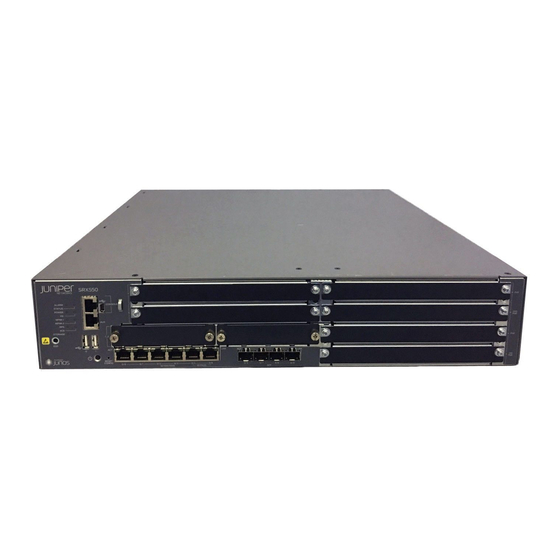

The SRX550 High Memory Services Gateway is a large branch office
gateway that combines security, routing, switching, and WAN interfaces
with next-generation firewall and advanced threat mitigation capabilities
for cost-effective, secure connectivity across distributed enterprise
locations. The services gateway simplifies network complexity, protects and
prioritizes network resources, and improves user and application experience.
The SRX550 High Memory Services Gateway comes with 4 GB of DRAM
memory and 8 GB of flash memory.

Package Contents

SRX550
Mounting brackets
• End-User License Agreement
• Safety Guide
• Quick Start Guide
AC power supply
RJ45 cable Power cable
DB9 adapter USB cable
Warranty and Registration
Information

Front Panel

Serial USB
console console
LEDs port port
ESD Power
point button
USB 0 and Reset Config
USB 1 ports button

Back Panel

Power supply slots
Screws
Grounding point
Specification
Dimensions (H x W x D)
Chassis weight
Average power consumption
Average heat dissipation
Relative humidity
Noise level
AUX Mini-PIM GPIM
port slots slots
Gigabit SFP
Ethernet ports Ethernet ports
ACE slot
Storage slot
Value
3.5 in. x 17.5 in. x 18.2 in.
21.96 lb
85 W
238 BTU/hr
5% to 90%, noncondensing
51.8 dB per ISO 7779 standard
Mounting
bracket
Air filter cover
ESD point
1
