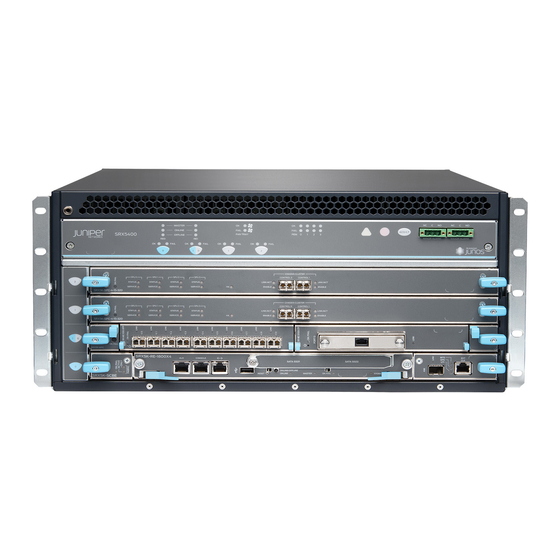

Juniper SRX5400 Manual
  1. Manuals
  2. Brands
  3. Juniper Manuals
  4. Gateway
  5. SRX5400
  6. Manual

Juniper SRX5400 Manual

Hide thumbs Also See for SRX5400:
Table of Contents

Advertisement

Quick Links

Download this manual
SRX5400, SRX5600, and SRX5800
Services Gateway Card Reference
March 2016
Contents
Copyright © 2016, Juniper Networks, Inc.
I/O Card SRX5K-40GE-SFP Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
I/O Card SRX5K-4XGE-XFP Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Modular Port Concentrators and Interface Cards . . . . . . . . . . . . . . . . . . . . . . . . . . 18
MIC with 20x1GE SFP Interfaces (SRX-MIC-20GE-SFP) . . . . . . . . . . . . . . . . . 21
SRX5K-MPC3-40G10G Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
SRX5K-MPC3-100G10G Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Flex I/O Cards and Port Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Flex I/O Card (SRX5K-FPC-IOC) Specifications . . . . . . . . . . . . . . . . . . . . . . . 34
Switch Control Board SRX5K-SCB Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 41
Switch Control Board SRX5K-SCBE Specifications . . . . . . . . . . . . . . . . . . . . . . . . 44
SRX5K-SCBE LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Switch Control Board SRX5K-SCB3 Specifications . . . . . . . . . . . . . . . . . . . . . . . . 47
SRX5K-SCB3 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Routing Engine SRX5K-RE-13-20 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Routing Engine SRX5K-RE-1800X4 Specifications . . . . . . . . . . . . . . . . . . . . . . . . 51
SRX5K-RE-1800X4 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRX5400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Juniper SRX5400

Summary of Contents for Juniper SRX5400

  • Page 1: Table Of Contents

    March 2016 Contents SRX5400, SRX5600, and SRX5800 Services Gateway Card Overview ..3 Cards Supported on SRX5400, SRX5600, and SRX5800 Services Gateways . . . 4 Services Processing Card SRX5K-SPC-2-10-40 Specifications ....6 Services Processing Card SRX5K-SPC-4-15-320 Specifications .
  • Page 2 Terminology ..........54 Handling an SRX5400, SRX5600, or SRX5800 Services Gateway Card . . . 55 Storing an SRX5600, SRX5600, or SRX5800 Services Gateway Card .

  • Page 3: Srx5400, Srx5600, And Srx5800 Services Gateway Card Overview

    SRX5400, SRX5600, and SRX5800 Services Gateway Card Overview SRX5400, SRX5600, and SRX5800 Services Gateway Card Overview The cards described in this guide let you upgrade and customize your SRX5400, SRX5600, or SRX5800 Services Gateway to suit the needs of your network. The following types of...

  • Page 4: Cards Supported On Srx5400, Srx5600, And Srx5800 Services Gateways

    SRX5400, SRX5600, and SRX5800 Services Gateway Card Reference Related Cards Supported on SRX5400, SRX5600, and SRX5800 Services Gateways on page 4 Documentation Cards Supported on SRX5400, SRX5600, and SRX5800 Services Gateways Table 1 on page 4 describes the cards and other modules supported on the SRX5400, SRX5600, and SRX5800 Services Gateways.
  • Page 5 Cards Supported on SRX5400, SRX5600, and SRX5800 Services Gateways Table 1: Supported Cards for SRX5400, SRX5600, and SRX5800 Services Gateways (continued) Earliest Supported Junos OS Release SRX5600 and Card Name and Model Number SRX5400 SRX5800 “Flex I/O Card Port Module SRX-IOC-4XGE-XFP Specifications”...

  • Page 6: Services Processing Card Srx5K-Spc-2-10-40 Specifications

    Guide for more information about connecting and configuring redundant chassis clusters. CAUTION: If you are having a problem running a Juniper Networks device that is using a third-party optic or cable, the Juniper Networks Technical Copyright © 2016, Juniper Networks, Inc.
  • Page 7 Assistance Center (JTAC) can help you diagnose the source of the problem. Your JTAC engineer might recommend that you check the third-party optic or cable and potentially replace it with an equivalent Juniper Networks optic or cable that is qualified for the device.
  • Page 8 SRX5400, SRX5600, and SRX5800 Services Gateway Card Reference LEDs OK/FAIL LED, one bicolor: Steady green–The SPC is operating normally. Red–The SPC has failed and is not operating normally. Off–The SPC is powered down. LED, one tricolor for each of the two SPUs...
  • Page 9 Location Figure 3: Serial Number Label (IOC Shown, Other Cards Similar) OK /F AIL Serial number ID label AA567 8 Related Cards Supported on SRX5400, SRX5600, and SRX5800 Services Gateways on page 4 Documentation Copyright © 2016, Juniper Networks, Inc.

  • Page 10: Services Processing Card Srx5K-Spc-4-15-320 Specifications

    SRX5400, SRX5600, and SRX5800 Services Gateway Card Reference Services Processing Card SRX5K-SPC-4-15-320 Specifications The SRX5K-SPC-4-15-320 Services Processing Card (SPC) contains four Services Processing Units (SPUs), which provide the processing power to run integrated services such as firewall, IPsec, and IDP (see Figure 4 on page 10).
  • Page 11 CAUTION: If you are having a problem running a Juniper Networks device that is using a third-party optic or cable, the Juniper Networks Technical Assistance Center (JTAC) can help you diagnose the source of the problem. Your JTAC engineer might recommend that you check the third-party optic or cable and potentially replace it with an equivalent Juniper Networks optic or cable that is qualified for the device.
  • Page 12 SRX5400, SRX5600, and SRX5800 Services Gateway Card Reference Weight Approximately 18 lb (8.3 kg) LEDs LED, one bicolor: OK/FAIL Steady green–The SPC is operating normally. Red–The SPC has failed and is not operating normally. Off–The SPC is powered down. LED, one tricolor for each of the four SPUs...
  • Page 13 Location Figure 5: Serial Number Label (IOC Shown, Other Cards Similar) OK /F AIL Serial number ID label AA567 8 Related Cards Supported on SRX5400, SRX5600, and SRX5800 Services Gateways on page 4 Documentation Copyright © 2016, Juniper Networks, Inc.

  • Page 14: I/O Card Srx5K-40Ge-Sfp Specifications

    SRX5400, SRX5600, and SRX5800 Services Gateway Card Reference I/O Card SRX5K-40GE-SFP Specifications The SRX5K-40GE-SFP I/O card (IOC) is optimized for Ethernet density and supports 40 Gigabit Ethernet ports (see Figure 6 on page 14). The IOC assembly combines packet forwarding and Ethernet interfaces on a single board, with four 10-Gbps Packet Forwarding Engines.
  • Page 15 Figure 7 on page Figure 7: Serial Number Label (IOC Shown, Other Cards Similar) OK /F AIL Serial number ID label AA567 8 Related Cards Supported on SRX5400, SRX5600, and SRX5800 Services Gateways on page 4 Documentation Copyright © 2016, Juniper Networks, Inc.

  • Page 16: I/O Card Srx5K-4Xge-Xfp Specifications

    SRX5400, SRX5600, and SRX5800 Services Gateway Card Reference I/O Card SRX5K-4XGE-XFP Specifications The SRX5K-4XGE-XFP I/O card (IOC) supports four 10-Gigabit Ethernet ports (see Figure 8 on page 16). The IOC assembly combines packet forwarding and Ethernet interfaces on a single board, with four 10-Gbps Packet Forwarding Engines. Each Packet Forwarding Engine consists of one I-chip for Layer 3 processing and one Layer 2 network processor.
  • Page 17 The serial number label is located as shown in Figure 9 on page Figure 9: SRX5K-4XGE-XFP Serial Number Label OK /F AIL Serial number ID label AA567 8 Related Cards Supported on SRX5400, SRX5600, and SRX5800 Services Gateways on page 4 Documentation Copyright © 2016, Juniper Networks, Inc.

  • Page 18: Modular Port Concentrators And Interface Cards

    You can install MPCs in any of the slots that are not reserved for Switch Control Boards (SCBs). If a slot in the SRX5400, SRX5600, or SRX5800 Services Gateway card cage is not occupied by a card, you must install a blank panel to shield the empty slot and to allow cooling air to circulate properly through the services gateway.
  • Page 19 Modular Port Concentrator (SRX5K-MPC) Specifications Figure 10: SRX5K-MPC MPC (empty) Copyright © 2016, Juniper Networks, Inc.
  • Page 20 You must explicitly configure the using the CLI command: session-distribution-mode user@host set security forwarding-process application-services session-distribution-mode hash-based When installing an SRX5K-MPC in an SRX5400 Services Gateway, the will only function when mode is session-distribution-mode hash-based configured or set as the default. The normal mode is not supported.

  • Page 21: Mic With 20X1Ge Sfp Interfaces (Srx-Mic-20Ge-Sfp)

    SRX5K-MPCs. On SRX5400 and SRX5600 Services Gateways with AC power supplies, we recommend that you use high-line (220 V) input power to ensure that the devices have adequate power to support SRX5K-MPCs.
  • Page 22 SRX5400, SRX5600, and SRX5800 Services Gateway Card Reference Figure 11: SRX-MIC-20GE-SFP Description MIC with twenty 1-Gigabit Ethernet SFP Ethernet ports Fits into the MPC Supports up to 20 Gbps of full-duplex traffic Maximum configurable MTU: 9192 bytes Maximum throughput: 20 Gbps Software release Junos OS Release 12.1X47-D10...

  • Page 23: Mic With 10X10Ge Sfp+ Interfaces (Srx-Mic-10Xg-Sfpp)

    The serial number for the mezzanine card is shown only for reference and is never used for any purpose. Related Cards Supported on SRX5400, SRX5600, and SRX5800 Services Gateways on page 4 Documentation Modular Port Concentrator (SRX5K-MPC) Specifications on page 18...
  • Page 24 SRX5400, SRX5600, and SRX5800 Services Gateway Card Reference Figure 13: SRX-MIC-10XG SFPP Description MIC with ten SFP+ 10-Gigabit Ethernet ports Fits into MPC Supports up to 100 Gbps of full-duplex traffic Maximum configurable MTU: 9192 bytes Maximum throughput: 100 Gbps Software release Junos OS Release 12.1X46-D10...

  • Page 25: Mic With 1X100Ge Cfp Interface (Srx-Mic-1X100G-Cfp)

    The serial number label is yellow and located as shown in Figure 14 on page Figure 14: SRX-MIC-10XG-SFPP Serial Number Label Related Cards Supported on SRX5400, SRX5600, and SRX5800 Services Gateways on page 4 Documentation Modular Port Concentrator (SRX5K-MPC) Specifications on page 18 MIC with 1x100GE CFP Interface (SRX-MIC-1X100G-CFP) You use MICs and MPCs to add different combinations of Ethernet interfaces to your services gateway to suit the specific needs of your network.
  • Page 26 Figure 16 on page Figure 16: SRX-MIC-1X100G-CFP Serial Number Label Serial number ID label Related Cards Supported on SRX5400, SRX5600, and SRX5800 Services Gateways on page 4 Documentation Modular Port Concentrator (SRX5K-MPC) Specifications on page 18 Copyright © 2016, Juniper Networks, Inc.

  • Page 27: Mic With 2X40Ge Qsfp+ Interfaces (Srx-Mic-2X40G-Qsfp)

    OK/FAIL Green–The MIC is operating normally. Red–The MIC has failed and is not operating normally. Off–The MIC is powered down. LED, single color, one per QSFP+ port: LINK Green–The link is active. Off–No link. Copyright © 2016, Juniper Networks, Inc.

  • Page 28: Srx5K-Mpc3-40G10G Specifications

    The SRX5K-MPC3-40G10G (IOC3) is an interface card that provides 10 Gigabit Ethernet and 40 Gigabit Ethernet interfaces, with a Packet Forwarding Engine that provides a 240 Gbps line rate. This interface card is supported on SRX5400, SRX5600, and SRX5800 Services Gateways. See...
  • Page 29 In SRX5800 Services Gateways, you cannot install the interface card in slots 0 and 11. If a slot in the SRX5400, SRX5600, or SRX5800 Services Gateway card cage is not occupied by a card, you must install a blank panel to shield the empty slot and to allow cooling air to circulate properly through the services gateway.
  • Page 30 SRX5400, SRX5600, and SRX5800 Services Gateway Card Reference Hardware features Line-rate throughput of up to 240 Gbps Supports up to 32,000 queues per-slot LAN-PHY mode at 10.3125 Gbps on a per-port basis The ports are labeled as: 10-Gigabit Ethernet ports: 0/0 through 0/11 and 1/0 through 1/11...

  • Page 31: Srx5K-Mpc3-100G10G Specifications

    The SRX5K-MPC3-100G10G (IOC3) is an interface card that provides 100 Gigabit Ethernet and 10 Gigabit Ethernet interfaces, with a Packet Forwarding Engine that provides a 240 Gbps line rate. This interface card is supported on SRX5400, SRX5600, and SRX5800 Services Gateways. See...
  • Page 32 In SRX5800 Services Gateways, you cannot install the interface card in slots 0 and 11. If a slot in the SRX5400, SRX5600, or SRX5800 Services Gateway card cage is not occupied by a card, you must install a blank panel to shield the empty slot and to allow cooling air to circulate properly through the services gateway.
  • Page 33 10-Gigabit Ethernet LINK LED, one bicolor per port: Green—Link is up. Amber—Link is disabled. Off—Link is down or disabled. 100-Gigabit Ethernet LINK LED, one bicolor per port: Green—Link is up. Amber—Link is disabled. Off—Link is down. Copyright © 2016, Juniper Networks, Inc.

  • Page 34: Flex I/O Cards And Port Modules

    Related SRX5K-MPC3-40G10G Specifications on page 28 Documentation Cards Supported on SRX5400, SRX5600, and SRX5800 Services Gateways on page 4 Flex I/O Cards and Port Modules Flex I/O Card (SRX5K-FPC-IOC) Specifications on page 34 Flex I/O Card Port Module SRX-IOC-16GE-SFP Specifications on page 36...
  • Page 35 Weight Approximately 10 lb (4.5 kg) LEDs LED, one bicolor: OK/FAIL Steady green–The Flex IOC is operating normally. Red–The Flex IOC has failed and is not operating normally. Off–The Flex IOC is powered down. Copyright © 2016, Juniper Networks, Inc.

  • Page 36: Flex I/O Card Port Module Srx-Ioc-16Ge-Sfp Specifications

    Serial number ID label AA567 8 Related Cards Supported on SRX5400, SRX5600, and SRX5800 Services Gateways on page 4 Documentation Flex I/O Card Port Module SRX-IOC-16GE-TX Specifications on page 38 Flex I/O Card Port Module SRX-IOC-16GE-SFP Specifications on page 36...
  • Page 37 Off–The port module is powered down. LED, single color, one per port: LINK Steady green–The link is active. Off–No link. LED, single color, one per port: TX/RX Blinking Green–The port is receiving or transmitting data. Off–No activity. Copyright © 2016, Juniper Networks, Inc.

  • Page 38: Flex I/O Card Port Module Srx-Ioc-16Ge-Tx Specifications

    Serial number ID label JX0123 Related Cards Supported on SRX5400, SRX5600, and SRX5800 Services Gateways on page 4 Documentation Flex I/O Card (SRX5K-FPC-IOC) Specifications on page 34 Flex I/O Card Port Module SRX-IOC-16GE-TX Specifications You use port modules and Flex I/O Cards (Flex IOCs) to add different combinations of small form-factor pluggable transceiver (SFP), 10-gigabit SFP transceiver (XFP), and copper ports to your services gateway to suit the specific needs of your network.

  • Page 39: Flex I/O Card Port Module Srx-Ioc-4Xge-Xfp Specifications

    Serial number ID label JX0123 Related Cards Supported on SRX5400, SRX5600, and SRX5800 Services Gateways on page 4 Documentation Flex I/O Card (SRX5K-FPC-IOC) Specifications on page 34 Flex I/O Card Port Module SRX-IOC-4XGE-XFP Specifications You use port modules and Flex I/O Cards (Flex IOCs) to add different combinations of small form-factor pluggable transceiver (SFP), 10-gigabit SFP transceiver (XFP), and copper ports to your services gateway to suit the specific needs of your network.
  • Page 40 SRX5400, SRX5600, and SRX5800 Services Gateway Card Reference Figure 29: Flex IOC Port Module SRX-IOC-4XGE-XFP Description Port module with four 10-Gigabit Ethernet XFP ports Maximum throughput: 10 Gbps Oversubscription ratio: 4:1 Maximum configurable MTU: 9192 bytes Software release Junos OS Release 9.5R1 and later...

  • Page 41: Switch Control Board Srx5K-Scb Specifications

    Figure 30: Port Module SRX-IOC-4XGE-XFP Serial Number Label Serial number ID label JX0123 Related Cards Supported on SRX5400, SRX5600, and SRX5800 Services Gateways on page 4 Documentation Flex I/O Card (SRX5K-FPC-IOC) Specifications on page 34 Switch Control Board SRX5K-SCB Specifications The SRX5K-SCB Switch Control Board (SCB)
  • Page 42 SRX5400, SRX5600, and SRX5800 Services Gateway Card Reference Figure 31: Switch Control Board SRX5K-SCB Each SCB consists of the following components: Chassis management Ethernet switch. I2C bus logic, used for low-level communication with each component. Component redundancy circuitry. Gigabit Ethernet switch that is connected to the embedded CPU complex on all components.
  • Page 43 FABRIC ACTIVE Green–The fabric is in active mode. Serial Number Location The serial number label is located as shown in Figure 32 on page Figure 32: SCB Serial Number Label Serial number ID label Copyright © 2016, Juniper Networks, Inc.

  • Page 44: Switch Control Board Srx5K-Scbe Specifications

    SRX5400, SRX5600, and SRX5800 Services Gateway Card Reference Related Cards Supported on SRX5400, SRX5600, and SRX5800 Services Gateways on page 4 Documentation Routing Engine SRX5K-RE-13-20 Specifications on page 48 Switch Control Board SRX5K-SCBE Specifications Each SRX5K-SCBE consists of the following components:...

  • Page 45: Srx5K-Scbe Leds

    ACTIVE FABRIC Green On steadily SRX5K-SCBE operates in ONLY fabric-only mode. None SRX5K-SCBE operates in fabric/control board mode. OK/FAIL Green On steadily SRX5K-SCBE is online. On steadily SRX5K-SCBE has failed. None SRX5K-SCBE is offline. Copyright © 2016, Juniper Networks, Inc.
  • Page 46 SRX5400, SRX5600, and SRX5800 Services Gateway Card Reference Related Cards Supported on SRX5400, SRX5600, and SRX5800 Services Gateways on page 4 Documentation Routing Engine SRX5K-RE-1800X4 Specifications on page 51 Copyright © 2016, Juniper Networks, Inc.

  • Page 47: Switch Control Board Srx5K-Scb3 Specifications

    Power requirement 300 W Weight 9.6 lb (4.4 kg) with Routing Engine Serial number location The serial number label is located as shown in Figure 34 on page Figure 34: SRX5K-SCB3 Serial Number Label Copyright © 2016, Juniper Networks, Inc.

  • Page 48: Srx5K-Scb3 Leds

    Related SRX5K-MPC3-100G10G Specifications on page 31 Documentation SRX5K-MPC3-40G10G Specifications on page 28 Cards Supported on SRX5400, SRX5600, and SRX5800 Services Gateways on page 4 Routing Engine SRX5K-RE-13-20 Specifications The SRX5K-RE-13-20 Routing Engine (Figure 35 on page 48) is an Intel-based PC platform that runs the Junos operating system (Junos OS).
  • Page 49 DRAM), issue the show chassis routing-engine command. Description Routing Engine for SRX5400, SRX5600, and SRX5800 Services Gateways Software release Junos OS Release 9.2 and later Junos OS Release 10.0 and later required to install a second Routing Engine...
  • Page 50 Blinking green–The Routing Engine hard disk is functioning normally. MASTER LED: Blue–The Routing Engine is Primary. NOTE: The SRX5400, SRX5600, and SRX5800 Services Gateways do not support a secondary or backup Routing Engine, so the LED should always be lit. MASTER LED, one bicolor: OK/FAIL Off–The Routing Engine is operating normally.

  • Page 51: Routing Engine Srx5K-Re-1800X4 Specifications

    The serial number label is located on the right side of the top of the Routing Engine as shown in Figure 36 on page 51 Figure 36: SRX5K-RE-13-20 Serial Number Label Related Cards Supported on SRX5400, SRX5600, and SRX5800 Services Gateways on page 4 Documentation Switch Control Board SRX5K-SCB Specifications on page 41 Routing Engine SRX5K-RE-1800X4 Specifications Each Routing Engine consists of the following components: CPU—Runs Junos OS to maintain the routing tables and routing protocols.
  • Page 52 Online/Offline button—Takes the Routing Engine online or offline when pressed. Extractor clips—Inserts and extracts the Routing Engine. Captive screws—Secures the Routing Engine in place. Description Routing Engine for SRX5400, SRX5600, and SRX5800 Services Gateways Software release Junos OS Release 12.1X47-D15 and later Cables and connectors Slot for Routing Engine –Connects the Routing Engine to a laptop, a modem, or another auxiliary device...

  • Page 53: Srx5K-Re-1800X4 Leds

    Routing Engine is functioning normally. OK/FAIL On steadily Routing Engine has failed. Related Cards Supported on SRX5400, SRX5600, and SRX5800 Services Gateways on page 4 Documentation Switch Control Board SRX5K-SCBE Specifications on page 44 Copyright © 2016, Juniper Networks, Inc.

  • Page 54: Cards

    Handling and Storing SRX5400, SRX5600, and SRX5800 Services Gateway Cards SRX5400, SRX5600, and SRX5800 Services Gateway Card Terminology on page 54 Handling an SRX5400, SRX5600, or SRX5800 Services Gateway Card on page 55 Storing an SRX5600, SRX5600, or SRX5800 Services Gateway Card on page 57...

  • Page 55: Handling An Srx5400, Srx5600, Or Srx5800 Services Gateway Card

    Handling an SRX5400, SRX5600, or SRX5800 Services Gateway Card Handling an SRX5400, SRX5600, or SRX5800 Services Gateway Card When carrying a card, you can hold it either vertically or horizontally. NOTE: A card weighs up to 18.3 lb (8.3 kg). Be prepared to accept the full weight of the card as you lift it.
  • Page 56 SRX5400, SRX5600, and SRX5800 Services Gateway Card Reference Figure 39: Do Not Grasp the Connector Edge Never carry the card by the faceplate with only one hand. Do not rest any edge of a card directly against a hard surface (see Figure 40 on page 56).

  • Page 57: Storing An Srx5600, Srx5600, Or Srx5800 Services Gateway Card

    Storing an SRX5600, SRX5600, or SRX5800 Services Gateway Card Related Cards Supported on SRX5400, SRX5600, and SRX5800 Services Gateways on page 4 Documentation Storing an SRX5600, SRX5600, or SRX5800 Services Gateway Card You must store a card as follows: In the services gateway chassis...

  • Page 58: Self-Help Online Tools And Resources

    7 days a week, 365 days a year. Self-Help Online Tools and Resources For quick and easy problem resolution, Juniper Networks has designed an online self-service portal called the Customer Support Center (CSC) that provides you with the following features: Find CSC offerings: http://www.juniper.net/customers/support/...
  • Page 59 February 2015—Minor revisions. Added list of supported transceivers. June 2015—Added information about SCB3 and IOC3. October 2015—Updated supported transceivers list for SRX5K-MPC3-40G10G, SRX5K-MPC3-100G10G, and SRX-MIC-10XG-SFPP. March 2016—Updated the Switch Control Board SRX5K-SCB Specifications with the number of default SCBs. Copyright © 2016, Juniper Networks, Inc.
  • Page 60 Juniper Networks, Junos, Steel-Belted Radius, NetScreen, and ScreenOS are registered trademarks of Juniper Networks, Inc. in the United States and other countries. The Juniper Networks Logo, the Junos logo, and JunosE are trademarks of Juniper Networks, Inc. All other trademarks, service marks, registered trademarks, or registered service marks are the property of their respective owners.
