4. How to Program
Only display parameters selected in par. 0-20 and par. 0-24 can be viewed. It is possible to store
up to 120 samples in the memory for later reference.
Efficient Parameter Set-up for HVAC Ap-
plications
The parameters can easily be set up for the vast majority of the HVAC applications only by using
the [Quick Set-up] option.
After pressing [Quick Menu], the different areas in the quick menu are listed. See also illustration
6.1 below and tables Q3-1 to Q3-4 in the following
Example of using the Quick Set-up op-
4
tion
Assume you want to set the ramp-down time
to 100 seconds!
1.
2.
3.
4.
5.
6.
7.
8.
The new ramp-down time is now set to 100
seconds.
It is recommended to do the set-up in the or-
der listed.
76
Press [Quick Set-up]. The first
0-01 Language
in Quick Set-up ap-
pears.
par. 3-42
Press [▼] repeatetly until
Ramp 1 Ramp-down Time
with the default setting of 20 sec-
onds.
Press [OK].
Use the [◀] button to highlight the
3rd digit before the comma.
Change '0' to '1' by using the [▲] but-
ton.
Use the [▶] button to highlight the
digit '2'.
Change '2' to '0' with the [▼] button.
Press [OK].
MG.11.F1.22 - VLT
Function Set-ups
NOTE
A complete description of the
function is found in the param-
eter sections of this Instruction
Manual.
par.
appears

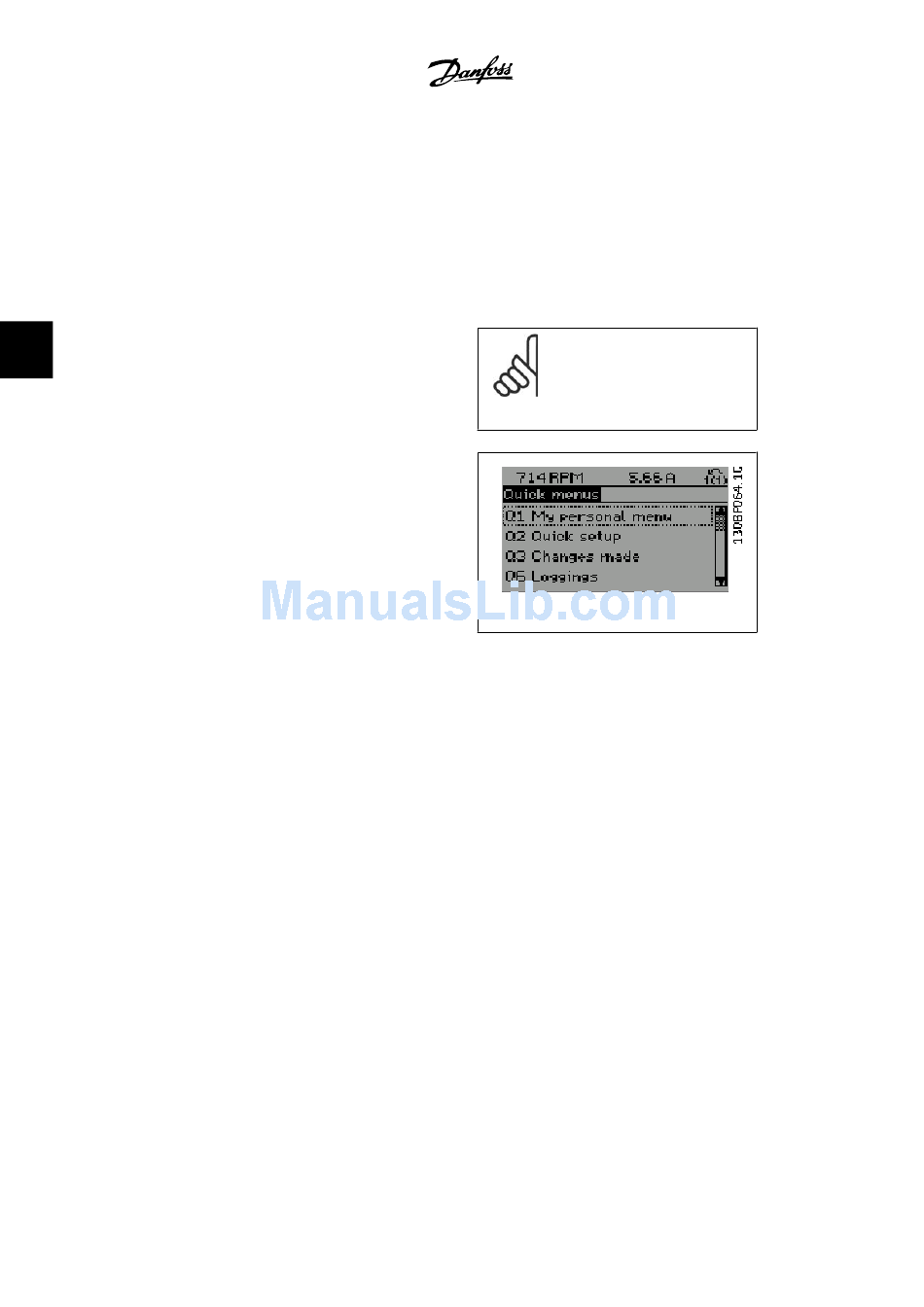

4.1: Quick Menu view.
The QUICK Set-up menu gives access to the
12 most important set-up parameters of the
drive. After programming, the drive will, in
most cases, be ready for operation. The 12
(see footnote) quick menu parameters are
shown in the table below. A complete descrip-
tion of the function is given in the parameter
sections of this manual.
