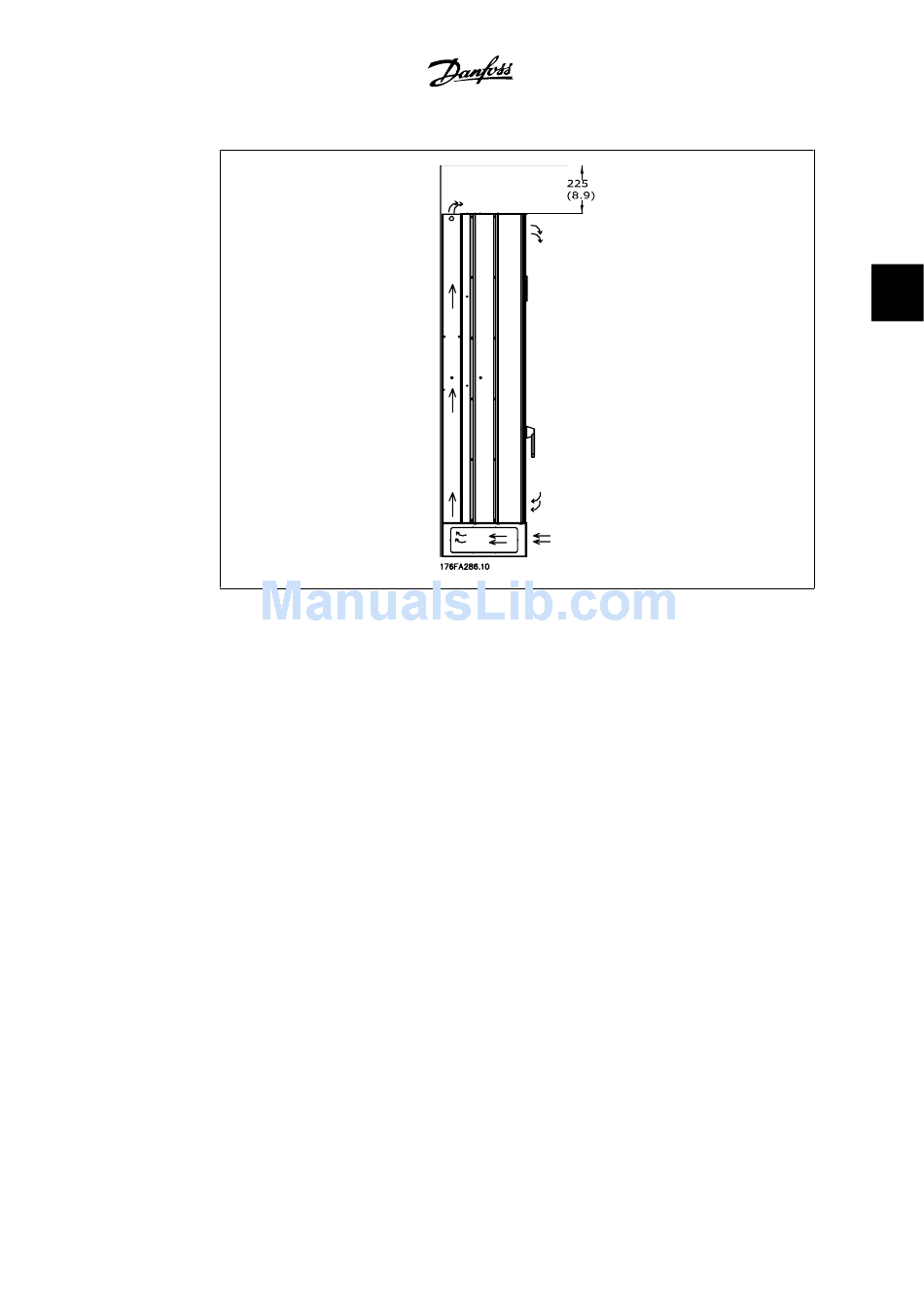

3.7: Airflow direction and necessary space for cooling - Enclosure IP 21/IP 54, E1
Wire access
Ensure that proper cable access is present including the necessary bending allowance. Since the
IP 00 enclosure is open, the bottom cables must be attached to the back panel of the enclosure
where the adjustable frequency drive is mounted, i.e., by using cable clamps.
Terminal locations
(D1 and D2 enclosures)
Take the following terminal positions into consideration when you design for cable access.
