3.1: Cable positions as shown in the drawings above. Dimensions in inches [mm].
Terminal locations - E1 enclosures
Give thought to the following terminal positions when designing the cable access.

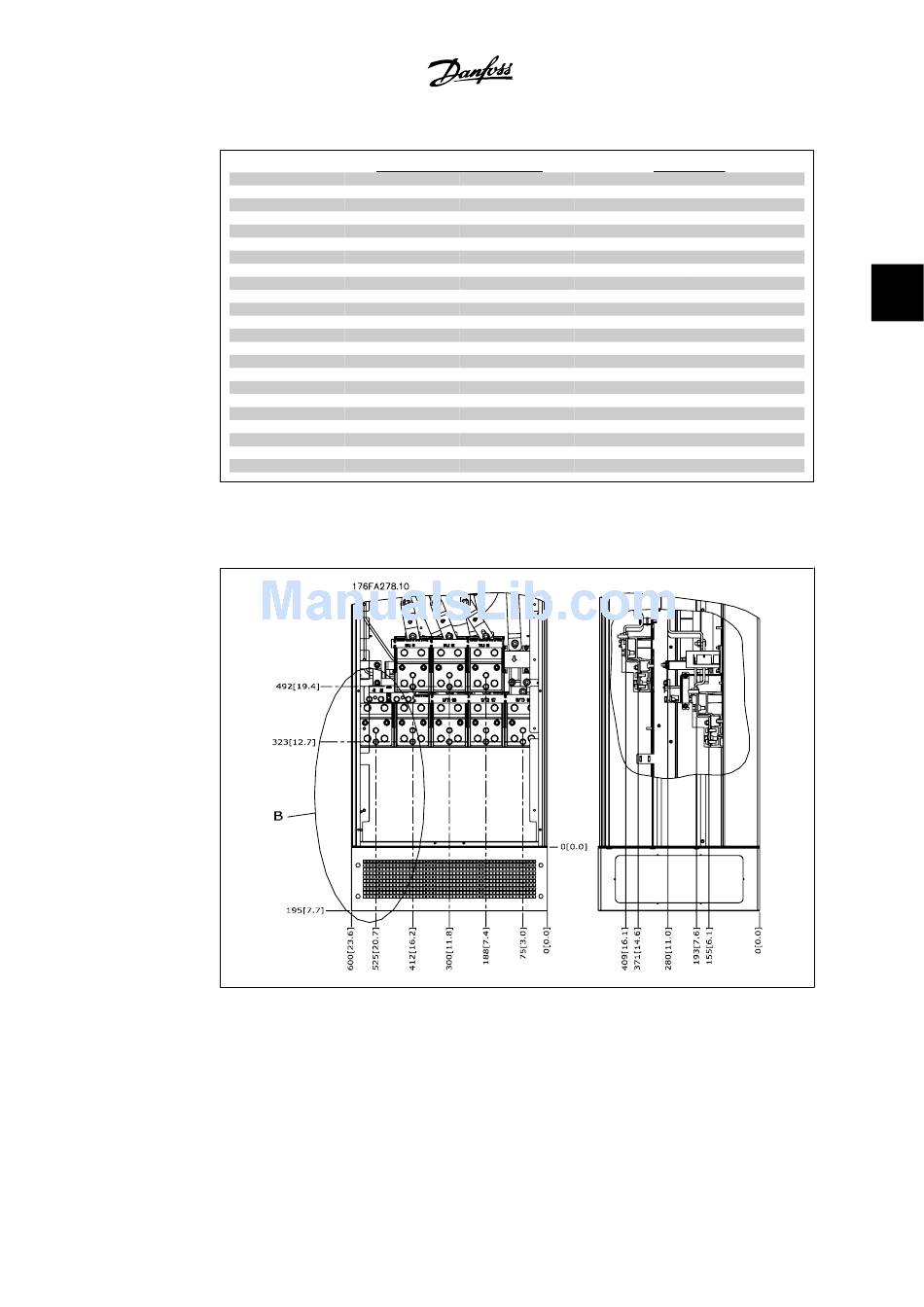

3.10: IP 21 (NEMA Type 1) and IP 54 (NEMA Type 12) enclosure power connection positions
IP 21 (NEMA 1) / IP 54 (NEMA 12)
Enclosure D1 Enclosure D2
277 (10.9) 379 (14.9)
227 (8.9) 326 (12.8)
173 (6.8) 273 (10.8)
179 (7.0) 279 (11.0)
370 (14.6) 370 (14.6)
300 (11.8) 300 (11.8)
222 (8.7) 226 (8.9)
139 (5.4) 142 (5.6)
55 (2.2) 59 (2.3)
354 (13.9) 361 (14.2)
284 (11.2) 277 (10.9)
334 (13.1) 334 (13.1)
250 (9.8) 250 (9.8)
167 (6.6) 167 (6.6)
261 (10.3) 260 (10.3)
170 (6.7) 169 (6.7)
120 (4.7) 120 (4.7)
256 (10.1) 350 (13.8)
308 (12.1) 332 (13.0)
252 (9.9) 262 (10.3)
196 (7.7) 192 (7.6)
260 (10.2) 273 (10.7)
MG.11.F1.22 - VLT ® is a registered Danfoss trademark.
3. How to Install
IP 00 / Chassis
Enclosure D3 Enclosure D4
119 (4.7) 122 (4.8)
68 (2.7) 68 (2.7)
15 (0.6) 16 (0.6)
20.7 (0.8) 22 (0.8)
363 (14.3) 363 (14.3)
293 (11.5) 293 (11.5)
215 (8.4) 218 (8.6)
131 (5.2) 135 (5.3)
48 (1.9) 51 (2.0)
347 (13.6) 354 (13.9)
277 (10.9) 270 (10.6)
326 (12.8) 326 (12.8)
243 (9.6) 243 (9.6)
159 (6.3) 159 (6.3)
261 (10.3) 261 (10.3)
170 (6.7) 170 (6.7)
120 (4.7) 120 (4.7)
98 (3.8) 93 (3.7)
301 (11.8) 324 (12.8)
245 (9.6) 255 (10.0)
189 (7.4) 185 (7.3)
260 (10.2) 273 (10.7)
