3. How to Install

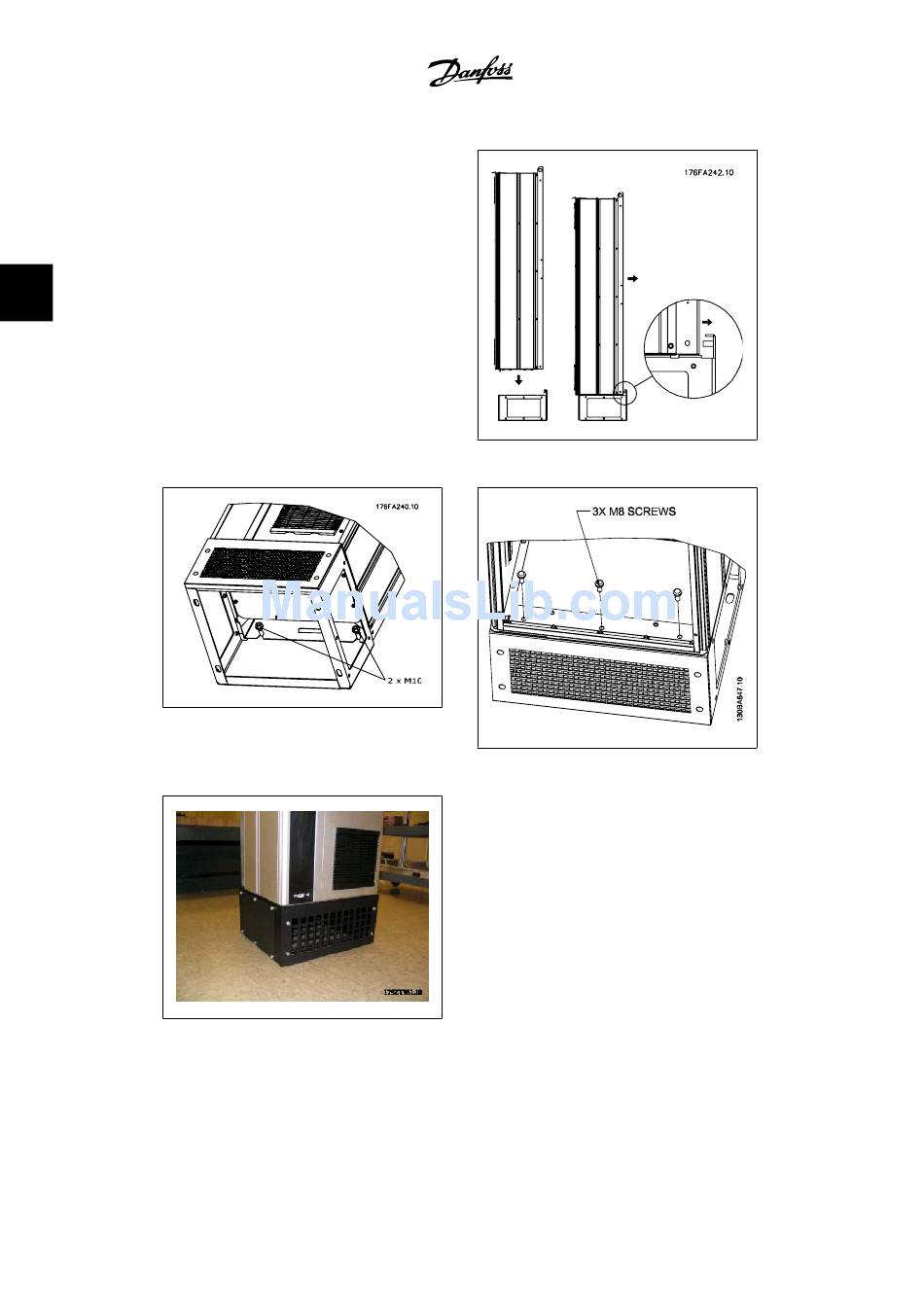

Install the adjustable frequency drive by low-
ering it onto the pedestal. The adjustable fre-
quency drive must hang over the front of the
pedestal to clear the retaining bracket on the
rear of the pedestal. After the adjustable fre-
quency drive has been placed on the pedestal,
slide the adjustable frequency drive so that it
3
engages with the retaining bracket on the
pedestal and mount screws as shown.
3.65: Two nuts at rear side.
3.67: Frame D2 with pedestal installed
48
3.64: Mount the drive onto pedestal.
3.66: Three front screws.
