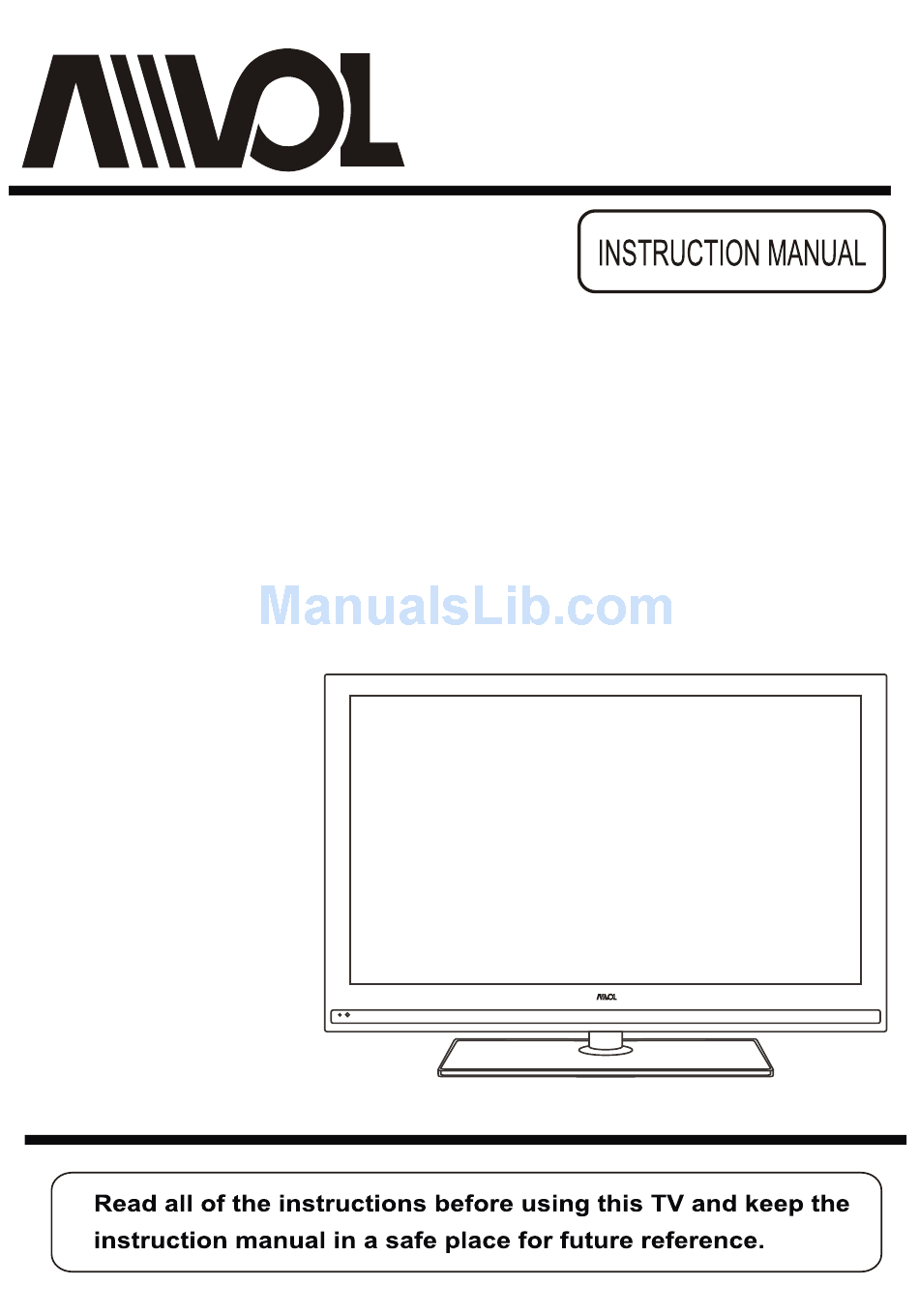

- Page 1 32" Full HD Multi System LED TV Model No.: AET3220M...
-
Page 3: Table Of Contents
Contents Caution Caution Safety Information Accessories Technical Specification Product Introduction Front View Rear View Connections Remote Control Basic Operation OSD Menu 9-15 1. Video menu 2. Audio menu 3. Misc menu 11-12 4. TV menu 13-14 5. PC menu Simple Troubleshooting... -
Page 4: Caution
Caution Caution The lightening flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 5: Safety Information
Safety Information Safety Information To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below . Electrical safety • The TV set should only be connected to a mains supply which matches that stated on the label on the mains adaptor. -
Page 6: Accessories
Accessories & Technical Specification Accessories for AV IN for MINI SCART User’s Manual Remote control 220V Power Socket for YPBPR audio for YPBPR video * Note: The configuration of the components may look different from the folltowing illustration Technical Specification - TV System PAL, SECAM, NTSC - Sound System... -
Page 7: Product Introduction
Product Introduction Product Introduction Front View TV/AV: Display the input source menu. MENU: Display/exit the OSD menu. CH+/-: Scan through channels. VOL+/-: Adjust the volume. POWER: TV/AV MENU VOL+ VOL- POWER Turn on/standby the TV set. TV/AV MENU VOL+ VOL- POWER LED indicator Remote Control window(keep clear) (IR) Infrared Receiver: Receives IR signals from the remote control. -
Page 8: Connections
Connections Connections HDMI1/2/3: Connect it to the HDMI of DVD or other equipment. VGA: For PC display. Connect it to the D-Sub 15 pins analog output connector of the PC. Mini SCART1/2: Connect them to the SCART output terminal of DVD. PC AUDIO IN: Connect it to the audio output terminal of PC. -
Page 9: Remote Control
Remote Control Remote Control The remote control is using Infra-Red(IR). Point it towards the front of the LCD TV. The remote control may not work correctly if it is operated out of range or out of angle. MUTE POWER Press to mute the sound. Press to turn the TV on/standby Press again or press VOL+ to unmute. - Page 10 Remote Control Remote Control TEXT HOLD REVEAL INDEX SIZE SUBPAGE FAV- FAV+ NICAM THUMBSTICK Allows you to navigate the MENU MENU on-screen menus and adjust the Press to display the OSD menu. system settings to your preference. EXIT EXIT Press to exit form the OSD menu. DISPLAY DISPLAY IPOD MENU...
-
Page 11: Basic Operation
Basic Operation Basic Operation Power on/off 1. Connect to the power supply with the power code. 2. -To turn on the TV Press POWER button on the TV or remote control. -To turn off the TV Main: Press POWER button on the TV or remote control. Input Source select SCART 1 Press TV/AV/SOURCE button on the TV set or remote control to display... -
Page 12: Osd Menu
OSD Menu OSD Menu 1. Video menu Picture Mode Vivid Video Contrast Audio Brightness Saturation Misc Sharpness Color Temperature Normal Geometric Advance Picture Adjust Select Back Adjust /ENTER MENU Description Picture Mode: Select your desired picture mode. You may select the picture mode directly by pressing the PICTURE button on the remote control. -
Page 13: Audio Menu
OSD Menu OSD Menu 2. Audio menu Sound Mode User Video Bass Audio Treble Balance Misc Surround Geometric Select Back Adjust /ENTER MENU Description Sound Mode: Select your desired picture mode. You may select the sound mode directly by pressing the SOUND button on the remote control. -
Page 14: Misc Menu
OSD Menu OSD Menu 3. Misc menu OSD Language English Teletext Language Video Arabic Blue Mute Audio Picture Size 16:9 SCART 1 Misc SCART 2 Timer Parental Default Geometric Select Back Adjust /ENTER MENU Description OSD Language: Select OSD language. Teletext Language: Select Teletext language. - Page 15 OSD Menu OSD Menu Channel Lock Video Lock Change Password Clear All Channel Lock: Lock to playing a channel. Video Lock: Lock to playing a input source. Password - - - - Change Password: Change the pssword. - - - - You have to enter the password to enter the Parental menu above.
-
Page 16: Tv Menu
OSD Menu OSD Menu 4. TV menu Region Selection Video Auto Search Audio Manual Scam Update Search Misc Program Edit Geometric Select Back Adjust /ENTER MENU Description Region Selection: Select Region Language. Auto Search: Start auto searching. Note: When the TV is auto tunning, you could press MENU button to stop auto tunning and return to preview menu. - Page 17 OSD Menu OSD Menu Program Edit: Select a channel to manual scan as the picture below. Program Edit Channel Freq System Name Skip - - - - - - - - - 90.75 - - - - - - - - - - - - - - - - - -...
-
Page 18: Pc Menu
OSD Menu OSD Menu 5. PC menu Auto Setting Video Phase Audio Manual Clock H Position Misc V Position Geometric Select Back Adjust /ENTER MENU Description Auto Setting: Press button to setup the parameter of the screen automatically Phase: Adjust the phase of the ADC sampling clock relative to the sync signal, until a stable image is obtained. -
Page 19: Simple Troubleshooting
Simple Troubleshooting Simple Troubleshooting If the display fails or performance dramatically deteriorates check the Display in accordance with the following instructions.Remember to check the peripherals topinpiont the source of the failure. If the display still fails to perform as expected,connect your helpline for assistance. No power - Check all connections to the TV.
