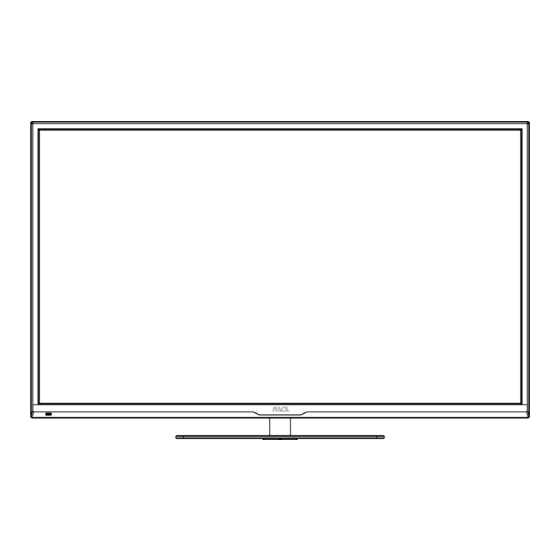

58" Full HD 100/120Hz Multi System LED TV
Model No.:AET58320UM
Attention;
Please Kindly refer to "TV Broadcasting system"(Page 10 of User's manual) for choosing suitable
TV broadcasting system as per your living area when you use this unit firstly.TV Color system is
automatically searched regardless of your living area.
Advertisement
Table of Contents
Related Manuals for Avol AET58320UM
Summary of Contents for Avol AET58320UM
- Page 1 58" Full HD 100/120Hz Multi System LED TV Model No.:AET58320UM Attention; Please Kindly refer to "TV Broadcasting system"(Page 10 of User's manual) for choosing suitable TV broadcasting system as per your living area when you use this unit firstly.TV Color system is...
-
Page 3: Table Of Contents
Contents Contents Caution Safety Information Accessories Technical Specification Product Introduction Front View Wall Mounting Connections Remote Control Basic Operation OSD Menu 9-14 1. Channel menu 9-10 2. Picture menu 3. Sound menu 4. Time menu 5. OPTION menu Simple Troubleshooting... -
Page 4: Caution
Caution Caution The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 5: Safety Information
Safety Information Safety Information To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below . Electrical safety To prevent overload, don't share the same mains supply socket with too many other items of equipment. -
Page 6: Accessories
Accessories & Technical Specification Accessories Converter cable for Din to F Connector YPbPr video User’s Manual Remote control 220V Power Socket Converter cable for (Model no.: MA004) * Note: The configuration of the components may look different from the following illustration Technical Specification - TV-System PAL/SECAM/NTSC... -
Page 7: Product Introduction
Product Introduction Product Introduction Front View INPUT: MENU: CH+/-: Press to scan through channels. VOL+/-: POWER: Led Indicator Remote Control window (Keep clear) POWER to turn on and off. Indicator on(Green) Power on mode Wall Mounting The TV is provided with mounting holes 400x200mm for a VESA approved wallmounting bracket (NOT SUPPLIED). -
Page 8: Connections
Connections Connections AC POWER IN Headphone out HDMI1 HDMI2 HDMI3 HDMI4 PC-IN AC POWER IN : Connect to an earth 100-240V~ 50/60Hz outlet with the Power Cable. Headphone out: Connect it to your headphone or other audio equipments. HDMI1/2/3/4 : Connect it to the HDMI output of the external devices. VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC. -
Page 9: Remote Control
Remote Control Remote Control The remote control is using Infra-Red(IR). Point it towards the front of the TV. The remote control may not work correctly if it is operated out of range or out of angle. POWER : Turn on/standby the TV MUTE: Silence status PICTURE: Select the picture mode ASPECT: Adjust picture size... - Page 10 Remote Control Remote Control ASPECT SLEEP ROOT: Come back to the home page. GOTO : Play your favorite title/chapter/track. : Play/Pause program : Stop program CH.list : fast reverse : fast forward NICAM/A2 : previous chapter : next chapter A-B: Select and play the preferable paragraph of USB program by pressing this key twice at the beginning and end of it.
-
Page 11: Basic Operation
Basic Operation Basic Operation Power on/off 1. Connect to the power supply with the power corde. 2. -To turn on the TV Press POWER button on the TV or remote control. -To turn off the TV Press POWER button on the TV or remote control. Input Source select Press INPUT button on the TV set or remote control to display input source menu, and use CH+/- button on the TV set or... -
Page 12: Osd Menu
OSD Menu OSD Menu 1. CHANNEL menu Description Auto Tuning Press OK button to start auto tuning. You could press MENU/EXIT button to exit the process of tuning, there will be a hint on the screen, and you should press button to confirm, or press button to cancel the operation. - Page 13 OSD Menu OSD Menu Programme Edit Press OK button to enter the Programme Edit menu as the following picture. Delete: Select a channel and press RED button to delete. Rename: Select an ATV channel and press the GREEN button to change the name of the channel by buttons.
-
Page 14: Picture Menu
OSD Menu OSD Menu 2. PICTURE menu Description Picture Mode: Choose from Standard, Dynamic, User and Mild. Note: Contrast, Brightness, Color and sharpness are only available and can be adjusted in the User mode option in the Picture Mode Settings. Contrast: Controls the difference between the brightest and darkest regions of the picture. -
Page 15: Sound Menu
OSD Menu OSD Menu 3. SOUND menu SPDIF MODE Description Sound Mode: Allows you to select among: Standard, Music, Movie, Sports and User. Treble(Can be adjusted when the sound mode is User): Controls the relative intensity of higher pitched sounds. Bass (Can be adjusted when the sound mode is set to User): Controls the relative intensity of lower pitched sounds. -
Page 16: Time Menu
OSD Menu OSD Menu 4. TIME menu Description Sleep Timer: Allows you to setup the sleep timer among: 10min, 20min, 30min, 60min, 90min, 120min,180min, 240min and off. Auto Sleep : According to the latest ERP regulation, this unit will switch off itself automatically if no change in status within the last 4 hours of operation. -
Page 17: Option Menu
OSD Menu OSD Menu 5. OPTION menu Description OSD Language: Allows you to select menu language. TT Language:Seclet the Teletext language. Aspect Ratio: Choose from 4:3, 16:9, Zoom1, Zoom2 and Panorama. Blue Screen: Turn on/off the blue screen function when there’s no signal. Key Lock: Turn on the function, and the buttons on the TV will be invalid. -
Page 18: Simple Troubleshooting
Simple Troubleshooting Simple Troubleshooting If the display fails or performance dramatically deteriorates check the Display in accordance with the following instructions.Remember to check the peripherals topinpiont the source of the failure. If the display still fails to perform as expected,connect your helpline for assistance. No power - Check SWITCH on rear cabinet of TV. -
Page 20: Limited Warranty
WARRANTY PERIOD MODEL# LABOR PARTS AET58320UM 90 Days 1 Year No other express warranty is applicable to this product. The duration of any implied warranties, including the implied warranty of merchantablility, is limited to the duration of the express warranty herein.
