Avol AET55200UN Instruction Manual

55”full hd 120hz atsc/ntsc system led tv

Advertisement

55"Full HD 120Hz ATSC/NTSC System LED TV
Model No .: AET55200UN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AET55200UN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Avol AET55200UN

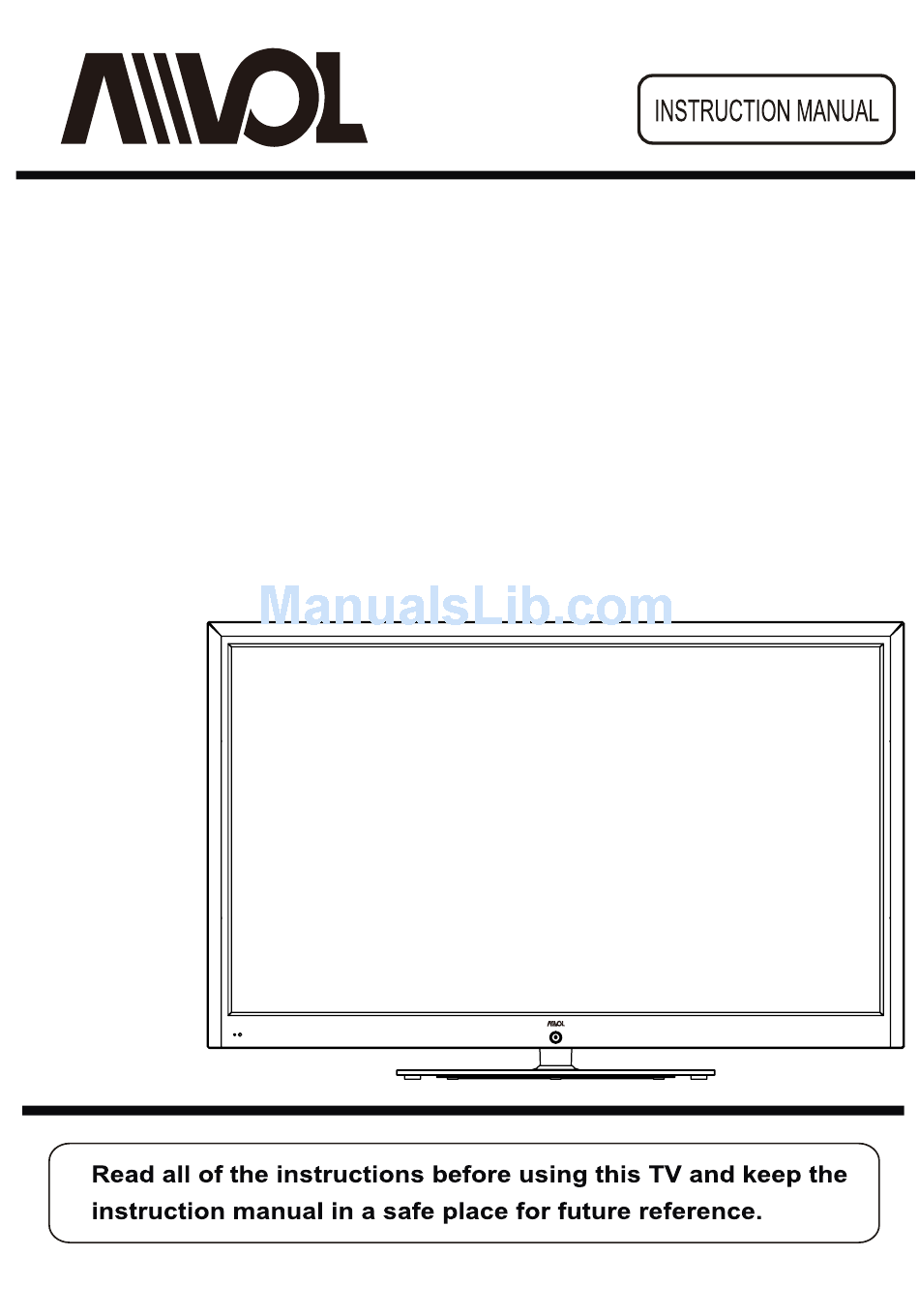

  • Page 1 55”Full HD 120Hz ATSC/NTSC System LED TV Model No .: AET55200UN...
  • Page 3: Table Of Contents

    Contents Contents Caution Safety Information Accessories Technical Specification Product Introduction Front View Wall Mounting Connections Remote Control First Time Installation Basic Operation OSD Menu 9-15 1. Picture menu 2. Audio menu 3. Time menu 4. Setup menu 5. Lock menu 6.
  • Page 4: Caution

    Caution Caution The lightening flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
  • Page 5: Safety Information

    Safety Information Safety Information To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below . Electrical safety To prevent overload, don't share the same mains supply socket with too many other items of equipment.
  • Page 6: Accessories

    Accessories & Technical Specification Accessories SOURCE -/-- PICTURE SOUND SLEEP DISPLAY VOL+ MUTE VOL- EXIT MENU User’s Manual Remote control 220V (Model No. : NA001) Power Socket * Note: The configuration of the components may look different from the folltowing illustration Technical Specification - TV System ATSC/NTSC...
  • Page 7: Product Introduction

    Product Introduction Product Introduction Front View SOURCE: MENU: CH+/-: Press to scan through channels. VOL+/-: POWER: Led Indicator Remote Control window (Keep clear) POWER to turn on and off. Indicator on(Green) Power on mode Wall Mounting The TV is provided with mounting holes 400x400mm for a VESA approved wallmounting bracket (NOT SUPPLIED).
  • Page 8: Connections

    Connections Connections AC POWER IN AC POWER IN: Connect it to AC100-240V~ 50/60Hz power supply with the mains cable. Headphone out : Connect it to your headphone or audio equipments. COAX : Digital audio output. VIDEO : Connect it to video output of video device. L/R in : Connect them to audio output of video device.
  • Page 9: Remote Control

    Remote Control Remote Control The remote control is using Infra-Red(IR). Point it towards the front of the TV. The remote control may not work correctly if it is operated out of range or out of angle. POWER(red button): Turn the TV on/standby. SOURCE SOURCE : Press to display the input source menu.
  • Page 10: First Time Installation

    First Time Installation First Time Installation 1. Connect the mains lead to the AC power supply and the Aerial lead to the RF input socket. 2. Make sure your Remote is in TV mode , switch on the TV by pressing 3.
  • Page 11: Basic Operation

    Basic Operation Basic Operation Power on/off 1. Connect to the power supply with the power cord. 2. -To turn on the TV Press POWER button on the TV or remote control. -To turn off the TV Press POWER button on the TV or remote control. Component Input Source select HDMI1...
  • Page 12: Osd Menu

    OSD Menu OSD Menu 1. Picture menu MEMC Normal Description Picture mode: Select between Standard, Dynamic, Mild, Sports User and Power Saving. You may select the picture mode directly by pressing the PICTURE button on the remote control. Note: when select the "Power Saving", the machine is in energy-saving status. Contrast: Control the difference between the bright and dark regions of the screen picture.
  • Page 13: Audio Menu

    OSD Menu OSD Menu 2. Audio menu Sound Mode Flat Bass Treble Balance Surround SPDIF Type Audio Language English Move Select MENU Description Sound Mode: Select your desired picture mode as follow: Flat, Music, Movie, Sports and User You may select the sound mode directly by pressing the SOUND button on the remote control. Bass: Low frequency intensity.
  • Page 14: Time Menu

    OSD Menu OSD Menu 3. Time menu Description Sleep timer: You may set the automatic shutdown timer choosing from 5 to 240 minutes, or deactivate this function. Time zone: Select between Pacific, Alaska, Hawaii, Eastern, Central and Mountain. Daylight Saving Time (Could only be activated in DTV mode): Select between On and Off. Clock: User can not change time manually during DTV mode as time comes from signal directly.
  • Page 15: Setup Menu

    OSD Menu OSD Menu 4. Setup menu Description Menu Language: Select OSD menu language. Transparency: Turn on or off the transparency menu function. Zoom Mode: Select the zoom mode between 16:9, 16:9 zoom, 4:3, 4:3 zoom. Noise reduction: Select the noise reduction mode between Strong, Off, Weak and Middle. PC SETUP: If the video input signal comes from your PC, you may adjust the V-Position, H-Position, Clock, Phase or even perform an Auto adjustment.
  • Page 16: Lock Menu

    OSD Menu OSD Menu 5. Lock menu You must enter the password to gain access to the Lock menu. The default password is 0000. You may modify the following options: Description Change password: Change the password, you must enter the new password twice to confirm it. Note: Do not forget the password.
  • Page 17: Channel Menu

    OSD Menu OSD Menu 6. Channel menu Description Air/Cable: Allow you to select antenna between Air and Cable. If you selet “Cable”, the following items(Favorite, Show/Hide, Channel NO, Channel Label and DTV Signal) are unable to use. Auto Scan: Enter the Auto Scan menu to start auto scan. If you select “Cable”...
  • Page 18: Osd Menu

    OSD Menu OSD Menu Show/Hide: Allow you to show or hide the channels. button to highlight the desired item, then press OK button to show or hide the highlighted channel. Channel No.: Show and select the channel. Channel Label: Allow you to setup a label for the channel. Press button to select the position of the table, and press button to select the...
  • Page 19: Simple Trouble Shooting

    Simple Trouble Shooting Simple Trouble Shooting If the display fails or performance dramatically deteriorates check the Display in accordance with the following instructions.Remember to check the peripherals topinpiont the source of the failure. If the display still fails to perform as expected,connect your helpline for assistance. No power - Check SWITCH on rear cabinet is ON.
  • Page 20: Limited Warranty

    WARRANTY PERIOD MODEL# LABOR PARTS AET55200UN 90 Days 1 Year No other express warranty is applicable to this product. The duration of any implied warranties, including the implied warranty of merchantablility, is limited to the duration of the express warranty herein.
