Summary of Contents for Avol A3ET47100UN

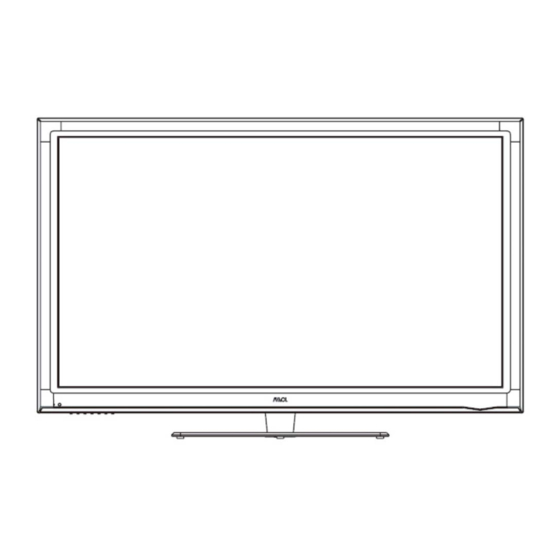

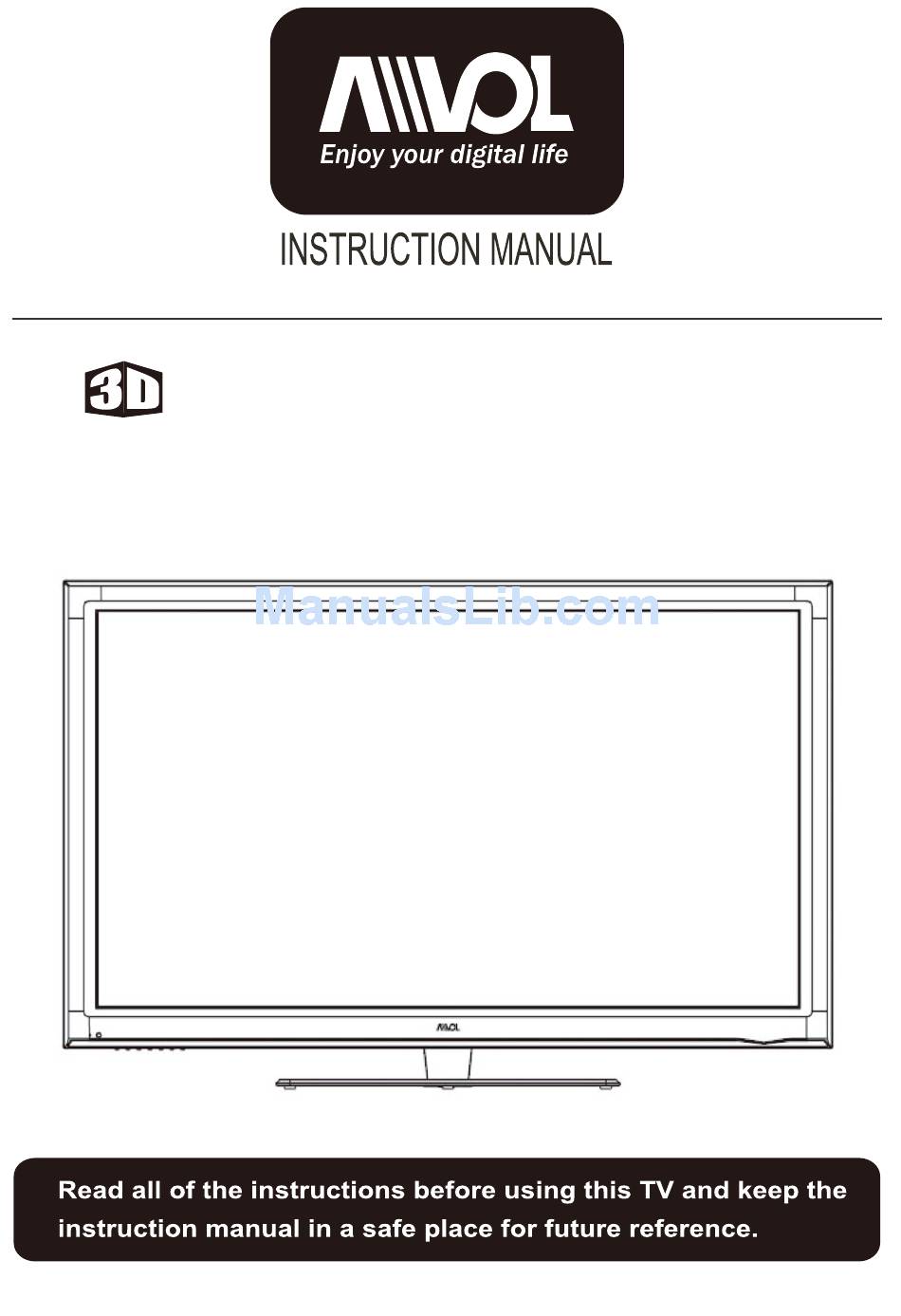

- Page 1 47” Full HD ATSC/NTSC System LED TV Model No.: A3ET47100UN...
-
Page 3: Table Of Contents
Contents Contents Caution Safety Information Accessories Technical Specification Product Introduction Front View Wall Mounting Connections Remote Control First Time Installation Basic Operation OSD Menu 9-15 1. Picture menu 2. Audio menu 3. Time menu 4. Setup menu 5. Lock menu 6. -
Page 4: Caution
Caution Caution The lightening flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 5: Safety Information
Safety Information Safety Information To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below . Electrical safety To prevent overload, don't share the same mains supply socket with too many other items of equipment. -
Page 6: Accessories
Accessories & Technical Specification Accessories SOURCE -/-- PICTURE SOUND SLEEP DISPLAY VOL+ MUTE VOL- EXIT MENU User’s Manual Remote control 220V 4 x 3D glasses (Model No. : NA303) Power Socket (Model No.: AGL2P) * Note: The configuration of the components may look different from the above illustration Technical Specification - TV System ATSC/NTSC... -
Page 7: Product Introduction
Product Introduction Product Introduction Front View SOURCE: MENU: CH+/-: Press to scan through channels. VOL+/-: LED Indicator POWER: POWER VOL- VOL+ MENU SOURCE Remote Control window (Keep clear) POWER to turn on and off. Indicator on(Green) Power on mode Wall Mounting The TV is provided with mounting holes 400x400mm for a VESA approved wallmounting bracket (NOT SUPPLIED). -
Page 8: Connections
Connections Connections AC POWER IN PC IN AC POWER IN : Connect to an earth 100-240V~ 50/60Hz outlet with the Power Cable. HP : Connect it to your headphone or other audio equipments. USB : For service (software update). HDMI1/2/3(1.4 version) : Connect it to the HDMI output of the external devices. PC IN: Connect it to the audio output terminal of PC. -
Page 9: Remote Control
Remote Control Remote Control The remote control is using Infra-Red(IR). Point it towards the front of the TV. The remote control may not work correctly if it is operated out of range or out of angle. POWER(red button): Turn the TV on/standby. SOURCE SOURCE : Press to display the input source menu. -
Page 10: First Time Installation
First Time Installation First Time Installation 1. Connect the mains lead to the AC power supply and the Aerial lead to the RF input socket. 2. Make sure your Remote is in TV mode , switch on the TV by pressing 3. -
Page 11: Basic Operation
Basic Operation Basic Operation Power on/off 1. Connect to the power supply with the power cord. 2. -To turn on the TV Press POWER button on the TV or remote control. -To turn off the TV Press POWER button on the TV or remote control. Input Source select Component Press SOURCE button on the TV set or remote control to display input... -
Page 12: Osd Menu
OSD Menu OSD Menu 1. Picture menu Advanced Option Description Picture mode: Select between Standard, Dynamic, Mild, Sports User and Power Saving. You may select the picture mode directly by pressing the PICTURE button on the remote control. Note: when select the "Power Saving", the machine is in energy-saving status. Contrast: Control the difference between the bright and dark regions of the screen picture. -
Page 13: Audio Menu
OSD Menu OSD Menu 2. Audio menu Sound Mode Flat Bass Treble Balance Surround SPDIF Type Audio Language English Move Select MENU Description Sound Mode: Select your desired picture mode as follow: Flat, Music, Movie, Sports and User You may select the sound mode directly by pressing the SOUND button on the remote control. Bass: Low frequency intensity. -
Page 14: Time Menu
OSD Menu OSD Menu 3. Time menu Description Sleep timer: You may set the automatic shutdown timer choosing from 5 to 240 minutes, or deactivate this function. Time zone: Select between Pacific, Alaska, Hawaii, Eastern, Central and Mountain. Daylight Saving Time (Could only be activated in DTV mode): Select between On and Off. Clock: User can not change time manually during DTV mode as time comes from signal directly. -
Page 15: Setup Menu
OSD Menu OSD Menu 4. Setup menu Description Menu Language: Select OSD menu language. Transparency: Turn on or off the transparency menu function. Zoom Mode: Select the zoom mode between 16:9, 16:9 zoom, 4:3, 4:3 zoom. Noise Reduction: Select the noise reduction mode between Strong, Off, Weak and Middle. PC SETUP: If the video input signal comes from your PC, you may adjust the V-Position, H-Position, Clock, Phase or even perform an Auto adjustment. -
Page 16: Lock Menu
OSD Menu OSD Menu 5. Lock menu You must enter the password to gain access to the Lock menu. The default password is 0000. You may modify the following options: Description Change password: Change the password, you must enter the new password twice to confirm it. Note: Do not forget the password. -
Page 17: Channel Menu
OSD Menu OSD Menu 6. Channel menu Description Air/Cable: Allow you to select antenna between Air and Cable. If you selet “Cable”, the following items(Favorite, Show/Hide, Channel NO, Channel Label and DTV Signal) are unable to use. Auto Scan: Enter the Auto Scan menu to start auto scan. If you select “Cable”... -
Page 18: Osd Menu
OSD Menu OSD Menu Show/Hide: Allow you to show or hide the channels. button to highlight the desired item, then press OK button to show or hide the highlighted channel. Channel No.: Show and select the channel. Channel Label: Allow you to setup a label for the channel. Press button to select the position of the table, and press button to select the... -
Page 19: Imaging
3D Imaging 3D Imaging 3D Technology This TV can display in 3D via 3D broadcasting or when the TV is connected to a compatible device, such as a Blu-ray 3D Player. You need such a device to watch the TV in 3D. The 3D TV displays two separate pictures formatted for each eye. - Page 20 3D Imaging 3D Imaging Additional 3D glasses are sold separately. Please contact AVL@avl21c.com. 3D Imaging Viewing Range TV size angle & ces may distance and angle vie . Top V 10° 35° 10° 35° Watching 3D TV 3D Customised Setting 3D Customised Setting 3D Type 3D Customised Setting...
- Page 21 3D Imaging 3D Imaging 3D Customised Setting 1. Press the Menu button and then press the buttons to select the PICTURE menu and then press buttons to select Advance Option item, press button to enter the menu. You could also press 3D button to enter the 3D Customise Setting menu (Advance Option menu) Directly.
-
Page 22: D Imaging
3D Imaging 3D Imaging Display Methods for 3D and 2D Images Display method Example display Side by Side Top and Bottom Frame packing * FHD3D frame will be transmitted at 24fps with a resolution of 1920×2205. -
Page 23: Simple Trouble Shooting
Simple Trouble Shooting Simple Trouble Shooting If the display fails or performance dramatically deteriorates check the Display in accordance with the following instructions.Remember to check the peripherals topinpiont the source of the failure. If the display still fails to perform as expected,connect your helpline for assistance. No power - Check all connections to the TV.
