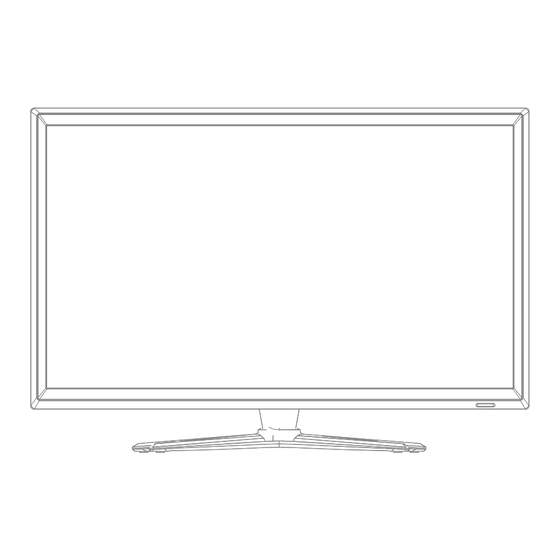

22" Full HD Multi System LED TV
Model No
.:
AET22390FM
Attention;
Please Kindly refer to "TV Broadcasting system"(Page 9 of User's manual) for choosing suitable
TV broadcasting system as per your living area when you use this unit firstly.TV Color system is
automatically searched regardless of your living area.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Avol AET22390FM
Summary of Contents for Avol AET22390FM
- Page 1 22” Full HD Multi System LED TV Model No AET22390FM Attention; Please Kindly refer to "TV Broadcasting system"(Page 9 of User's manual) for choosing suitable TV broadcasting system as per your living area when you use this unit firstly.TV Color system is...
-
Page 3: Table Of Contents
Contents Caution Safety Information Accessories Technical Specification Product Introduction Front View Wall Mounting Connections Remote Control Basic Operation OSD Menu 9-14 1. Channel menu 9-10 2. Picture menu 3. Sound menu 4. Time menu 5. OPTION menu Simple Troubleshooting... -
Page 4: Caution
Caution The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 5: Safety Information
Safety Information To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below . Electrical safety • To prevent overload, don't share the same main supply socket with too many other items of equipment. -
Page 6: Accessories
Accessories Din to F Connector 220V Power Socket User’s Manual Remote control The Mains adaptor (Model no.: MA004) * Note: The configuration of the components may look different from the following illustration Technical Specification - TV-System PAL/SECAM/NTSC - Screen Size 22 inch(diagonal) - Resolution 1920x1080... -
Page 7: Product Introduction
Product Introduction Front View INPUT: MENU: CH+/-: Press to scan through channels. VOL+/-: POWER: Led Indicator Remote Control window (Keep clear) POWER to turn on and off. Indicator on(Green) Power on mode Wall Mounting The TV is provided with mounting holes 100x100mm for a VESA approved wallmounting bracket (NOT SUPPLIED). -
Page 8: Connections
Connections POWER HDMI SCART PC-IN POWER: Connect to the mains adaptor. VIDEO: Connect it to video output terminal of the external devices with the converter cable. R/ L in: Connect them to the audio output terminal of the external devices with the converter cable (shared with YPbPr). -
Page 9: Remote Control
Remote Control The remote control is using Infra-Red(IR). Point it towards the front of the T V. The remote control may not work correctly if it is operated out of range or out of angle. POWER : Turn on/standby the TV MUTE: Silence status PICTURE: Select the picture mode ASPECT: Adjust picture size... - Page 10 Remote Control ASPECT SLEEP CH.list NICAM/A2 TV/TXT: Teletext on/off ROOT GOTO HOLD: Hold or carry on the current subpage SUBPAGE: Go to subpage REPEAT : Repeat playing the title or chapter. SLOW LAN. TV/TXT ZOOM INDEX: Direct recall of page 100. HOLD SIZE: Press to see top half of page double size, Press again to see the SUBT.
-
Page 11: Basic Operation
Basic Operation Power on/off 1. Connect to the power supply with the power adaptor. 2. -To turn on the TV Press POWER button on the TV or remote control. -To turn off theTV Press POWER button on the TV or remote control. Input Source select Press INPUT button on the TV set or on the remote control to display SCART... -
Page 12: Osd Menu
OSD Menu 1. CHANNEL menu Select Description Auto Scan Press OK button to start auto tuning. You could press MENU/EXIT button to exit the process of tuning, there will be a hint on the screen, and you should press button to confirm, or press button to cancel the operation. - Page 13 OSD Menu Programme Edit Press OK button to enter the Programme Edit menu as the following picture. Delete: Select a channel and press RED button to delete. Rename: Select an channel and press the GREEN button to change the name of the channel buttons.
-
Page 14: Picture Menu
OSD Menu 2. PICTURE menu Select Select Description Picture Mode: Choose from Standard, Dynamic, User and Mild. Note: Contrast, Brightness, Color and sharpness are only available and can be adjusted in the User mode option in the Picture Mode Settings. Contrast: Controls the difference between the brightest and darkest regions of the picture. -
Page 15: Sound Menu
OSD Menu 3. SOUND menu Select Description Sound Mode: Allows you to select among: Standard, Music, Movie, Sports and User. Treble(Can be adjusted when the sound mode is User): Controls the relative intensity of higher pitched sounds. Bass (Can be adjusted when the sound mode is set to User): Controls the relative intensity of lower pitched sounds. -
Page 16: Time Menu
OSD Menu 4. TIME menu Select Description Clock: Use the buttons to select the position, and use the buttons to set the time. Off Time: Press OK button to enter the submenu, you could set the time when the TV set will be turned off automatically, you could also set the frequency. -
Page 17: Option Menu
OSD Menu 5. OPTION menu Description OSD Language: Allows you to select menu language. TTX Language: Allows you to select teletext language. OSD Duration: Allows you to select the time for the OSD display on the screen. Blue Screen: Turn on/off the blue screen function when there’s no signal. Restore Dafault: Press OK button to restore factory default. -
Page 18: Simple Troubleshooting
Simple Troubleshooting If the display fails or performance dramatically deteriorates check the Display in accordance with the following instructions.Remember to check the peripherals topinpiont the source of the failure. If the display still fails to perform as expected,connect your helpline for assistance. No power - Check SWITCH on rear cabinet of TV. -
Page 20: Limited Warranty
WARRANTY PERIOD MODEL# LABOR PARTS AET22390FM 90 Days 1 Year No other express warranty is applicable to this product. The duration of any implied warranties, including the implied warranty of merchantablility, is limited to the duration of the express warranty herein.
