Chapter 2 NVR Connection

2.1HDD Installation

Caution: Please do not take out hard drive when NVR is running!
HDD Installation:
(1) Cut power firstly, and then remove screws on both sides and rear panel and open NVR
upper cover.
(2) Connect HDD data cable and power cable to the main board. Install the HDD and fix it
on the bracket and then connect the HDD power cable and data cable.
(3) Put the upper cover back carefully
Note: If user requires higher performance HDD, it is strongly recommended to use hard
drive for security.

2.2Web Camera and Monitor Connection

Transmit signals of web camera to NVR by the network cable and connect VGA port
and HDMI port for output (Refer to section 2.2 Rear Panel). Refer to Chapter 7 System
Connection Diagram.

2.3Power Supply Connection

Please use attached power adapter to connect NVR. Before power on, make sure
network port is well connected.

Chapter 3 NVR Boot up

3.1 System Initialization

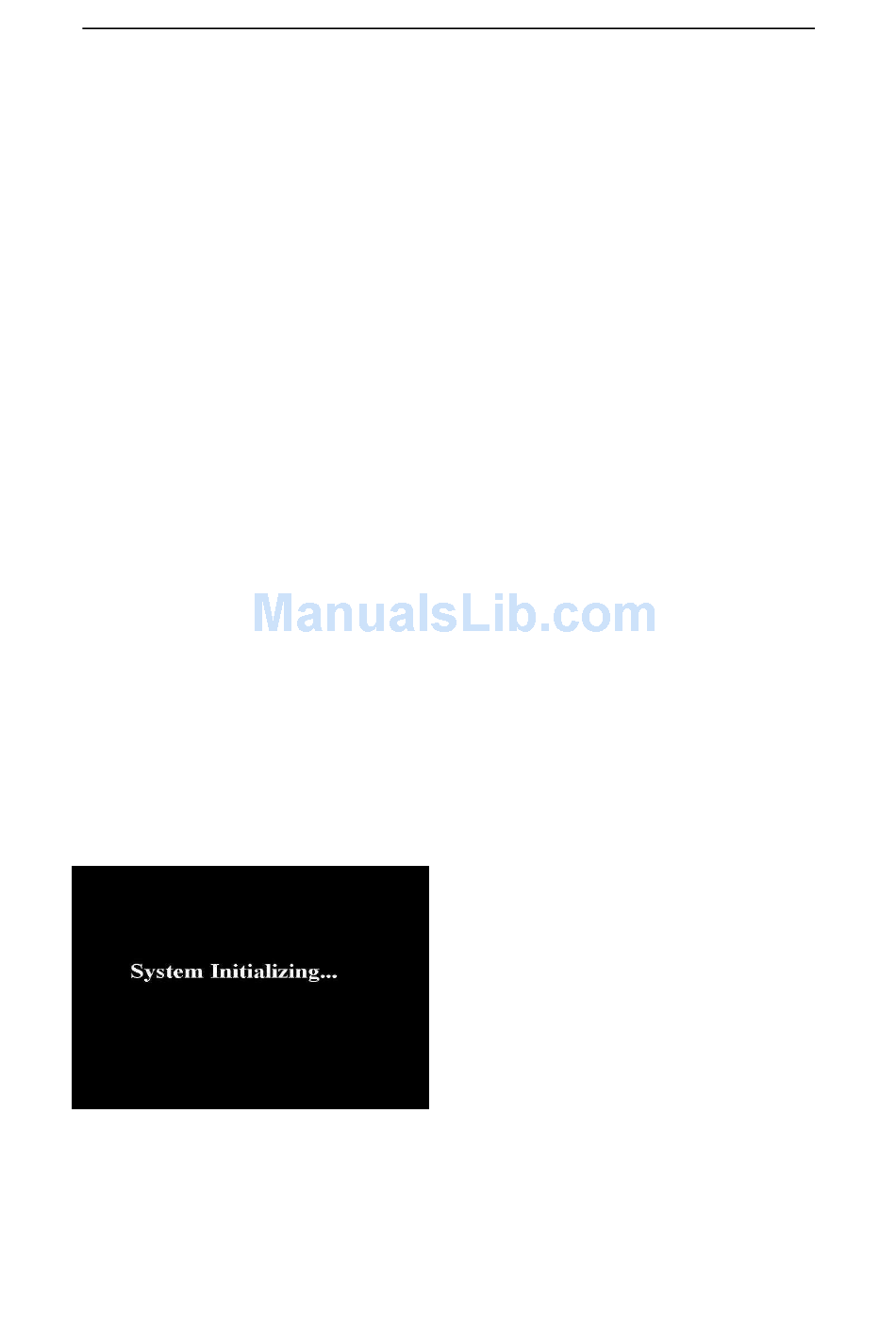

After connecting the power cable of NVR to wall outlet and pressing the power button, you
will enter into the NVR system initializing screen shown as Picture3-1.
Picture3-1

3.2 Startup Wizard

After NVR startup is completed, the startup wizard will be displayed. If you do not
want to make any setting, you may click "Don't show this window next time" to cancel, as
Note：The illustration in the user
manual may not be the same as the
menu interface in your monitor. All
the illustrations
reference.
