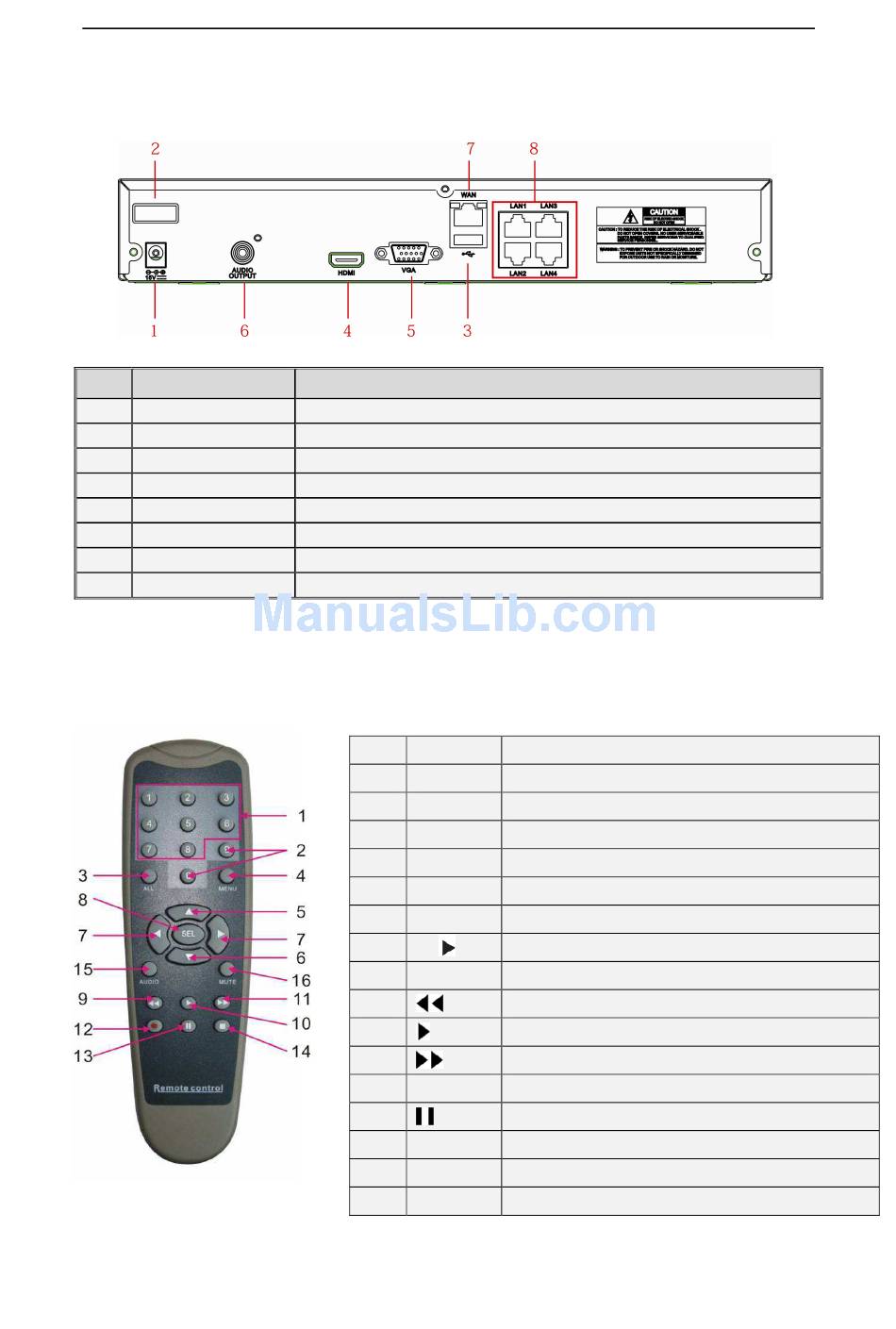

1.2 Rear Panel

NVR Rear Panel（ （ （ （ For reference only） ） ） ）
Item Physical Port
1 Power Port
2 Power Switch
3 USB Port
4 HDMI Port
5 VGA Port
6 AUDIO OUTPUT
7 WAN Port
8 LAN Port
1.3 Remote Controller
Table 2-3 Key functions of the remote controller
Table 1-3
Connection Method
Startup and shutdown
Connect the attached power supply
Connect USB devices, such as USB mouse and USB flash disk.
HDMI high definition port
Connect to VGA monitor, such as PC monitor
Audio signal output, RCA interface
Network input interface of the router/Connect to web camera.
LAN network interface, support POE, can supply power to the camera.
Table 1-2
(For reference only)
Item Key title
1 1-8
2 9、0
3 ALL
4 Menu
5 ▲
6 ▼
7
◄/
8 SEL
9
10
11
12 ●
13
14 ■
15 Audio
16 Mute
2
USER MANUAL
Key function
Channel select 1-8; Numeric key
Numeric key
Multiple display mode
Enter into Main menu/Exit
Up arrow key, Volume adjust
Down arrow key, Volume adjust
Left/Right key; Decrease/increase parameter value of control bar.
Select key/Edit key; selected operation.
Rewind key
Enter into record search menu; Play key
Forward key
Record key
Pause/Sequence key
Stop manual record; stop playing
Go to main menu
Mute On/off
