4.4 Analog Phone interface

4.4.1 Overview
The terminal has one RJ-11 port, which can be used for connection of an analog phone or fax
machine.
4.4.2 Pinout

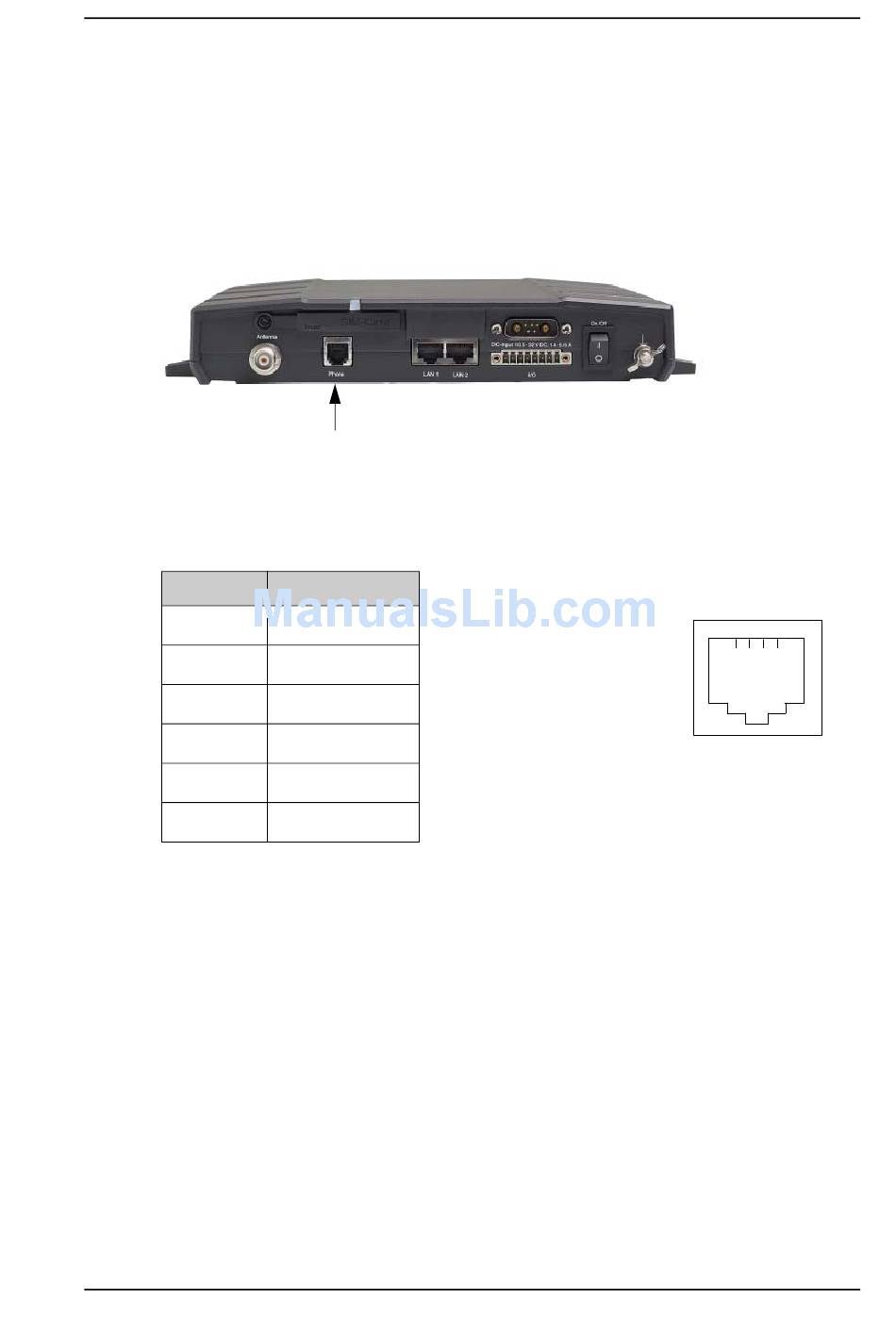

The Phone connector is an RJ-11, 6/4 female connector. The table and figure below show the
connector outline and pin assignments.
Pin number
1
2
3
4
5
6
98-131306-B
Pin function
-
not connected
Tip
Ring
not connected
-
Analog Phone interface
Chapter 4: Hardware interfaces
RJ-11 female connector
1 2 3 4 5 6
