For pinout and default functions, see Discrete I/O interface on page 25.
For information on the standby current when the ignition power is off, see Standby current on
page 44 in the general specifications.
3.3.3 To connect a Remote on/off switch
The terminal has a remote on/off function. When the terminal power switch is in the "on"
position you can remote-control the power function.

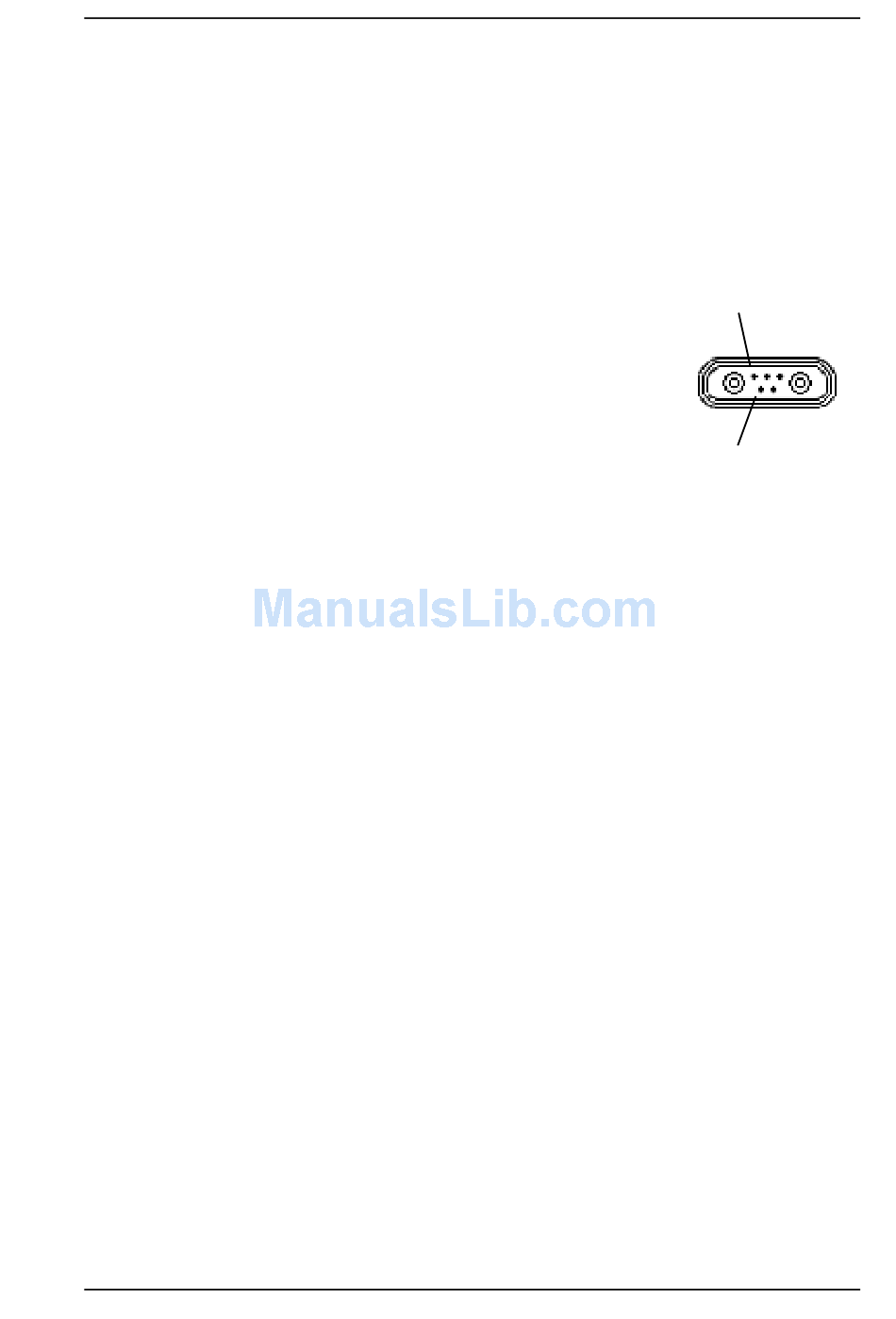

Install a switch that can short-circuit the "Remote on/off" pins (2 and
5) in the power connector. You can power the terminal on or off with
this remote switch.
When pins 2 and 5 are not short-circuited and valid input power is
present, the terminal is powered on, provided the Power switch is in
the "on" position.
For pinout for the power connector and a description of the wire
colors in the power cable, see Pinout on page 21.
For information on the standby current when the remote on/off switch is off, refer to Standby
current on page 44 in the General specifications.
